Shimano FC-MT101 Crankset

FC-MT101 Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT101 Crankset

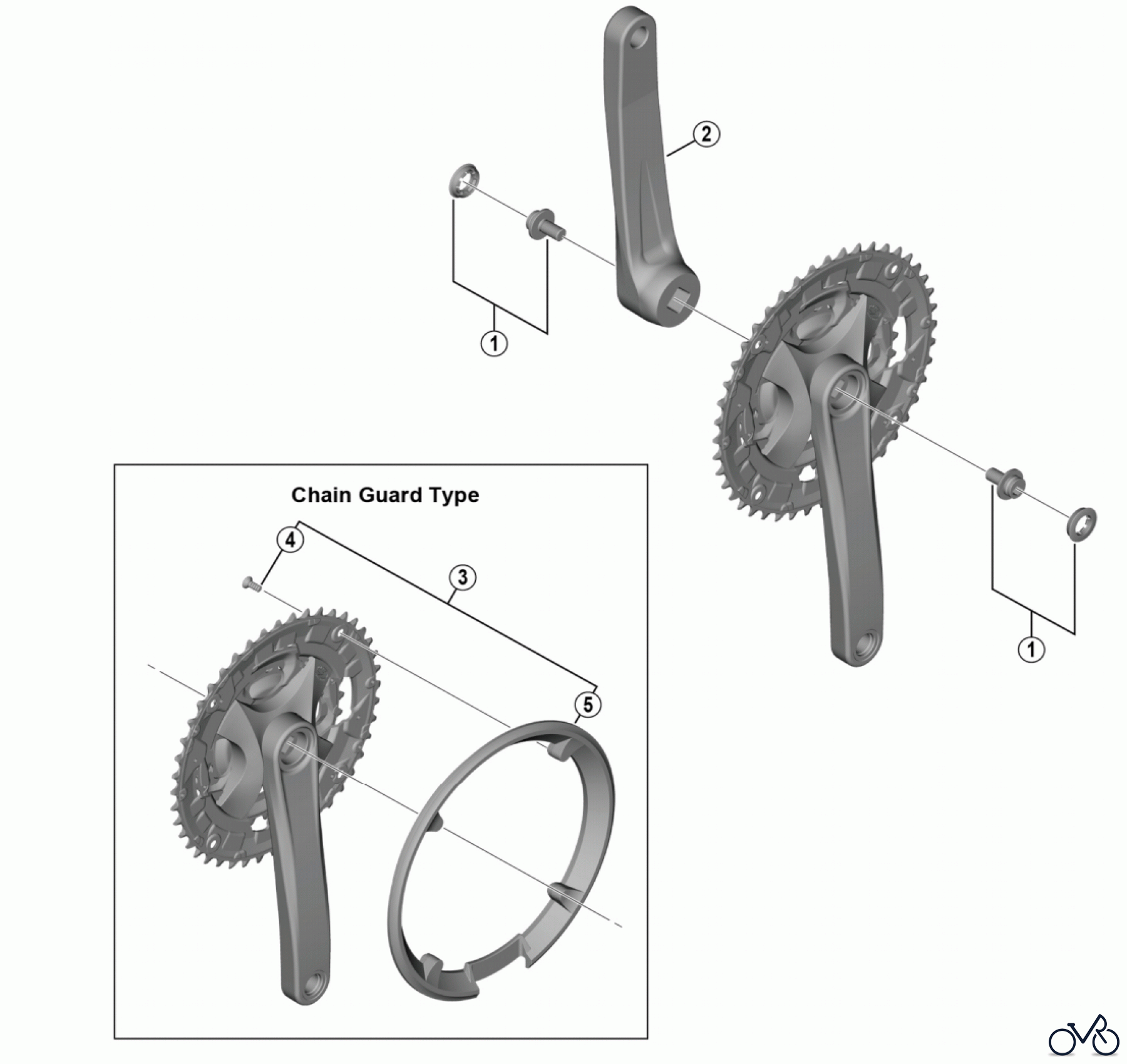

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT101 Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Crank Arm Fixing Bolt & Cap Y-1FP98010 Crank Arm Fixing Bolt & Cap Y1FP98010
2 Y-0G405100 Left Hand Crank Arm 170 mm Y0G405100
2 Y-0G403100 Left Hand Crank Arm 175 mm Y0G403100
3 Shimano 40T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y-0FP98030 40T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y0FP98030
3 Y-0FP98040 44T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y0FP98040
4 Y-1N098090 Chain Guard Fixing Screw (1 Unit = 4 pcs.) Y1N098090
5 Y-1WP16000 40T Chain Guard Y1WP16000
5 Y-0FP15000 44T Chain Guard Y0FP15000
