Shimano FC-MT210-3 Crankset

FC-MT210-3 Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

BB-MT500

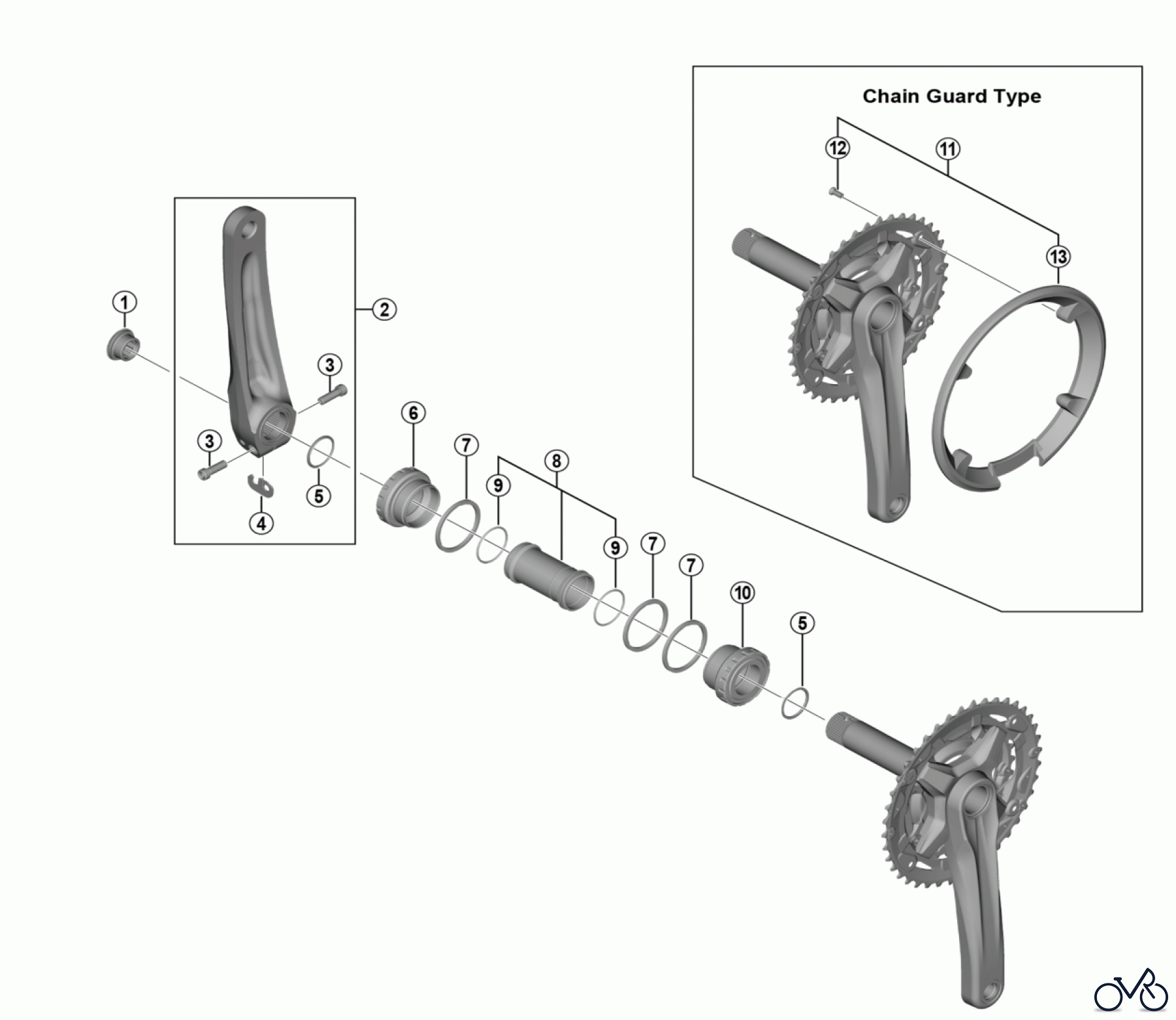

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT210-3 Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Bolt Y1F811100
2	Y-0FP98010	Left Hand Crank Arm Unit 170 mm Y0FP98010
2	Y-0FP98020	Left Hand Crank Arm Unit 175 mm Y0FP98020
3	Y-1GS00030	Clamp Bolt (M6 x 19) Y1GS00030
4	Y-1FU98120	Plate Y1FU98120
5	Y-1F316000	Ring Y1F316000
6	Y-0G698010	Left Hand Adapter (B.C.1.37" x 24T) English Thread (BB-MT500) Y0G698010
7	Y-1F813000	Spacer (2.5 mm) Y1F813000
8	Y-1J898060	Inner Cover & O-Ring Y1J898060
9	Y-1TF21000	O-Ring Y1TF21000
10	Y-0G698020	Right Hand Adapter (B.C.1.37" x 24T) English Thread (BB-MT500) Y0G698020
11	Y-0FP98030	40T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y0FP98030
11	Y-0FP98040	44T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y0FP98040
12	Y-1N098090	Chain Guard Fixing Screw (1 Unit = 4 pcs.) Y1N098090
13	Y-1WP16000	40T Chain Guard Y1WP16000
13	Y-0FP15000	44T Chain Guard Y0FP15000
