Shimano FC-M3000 ACERA Crankset

FC-M3000 ACERA Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

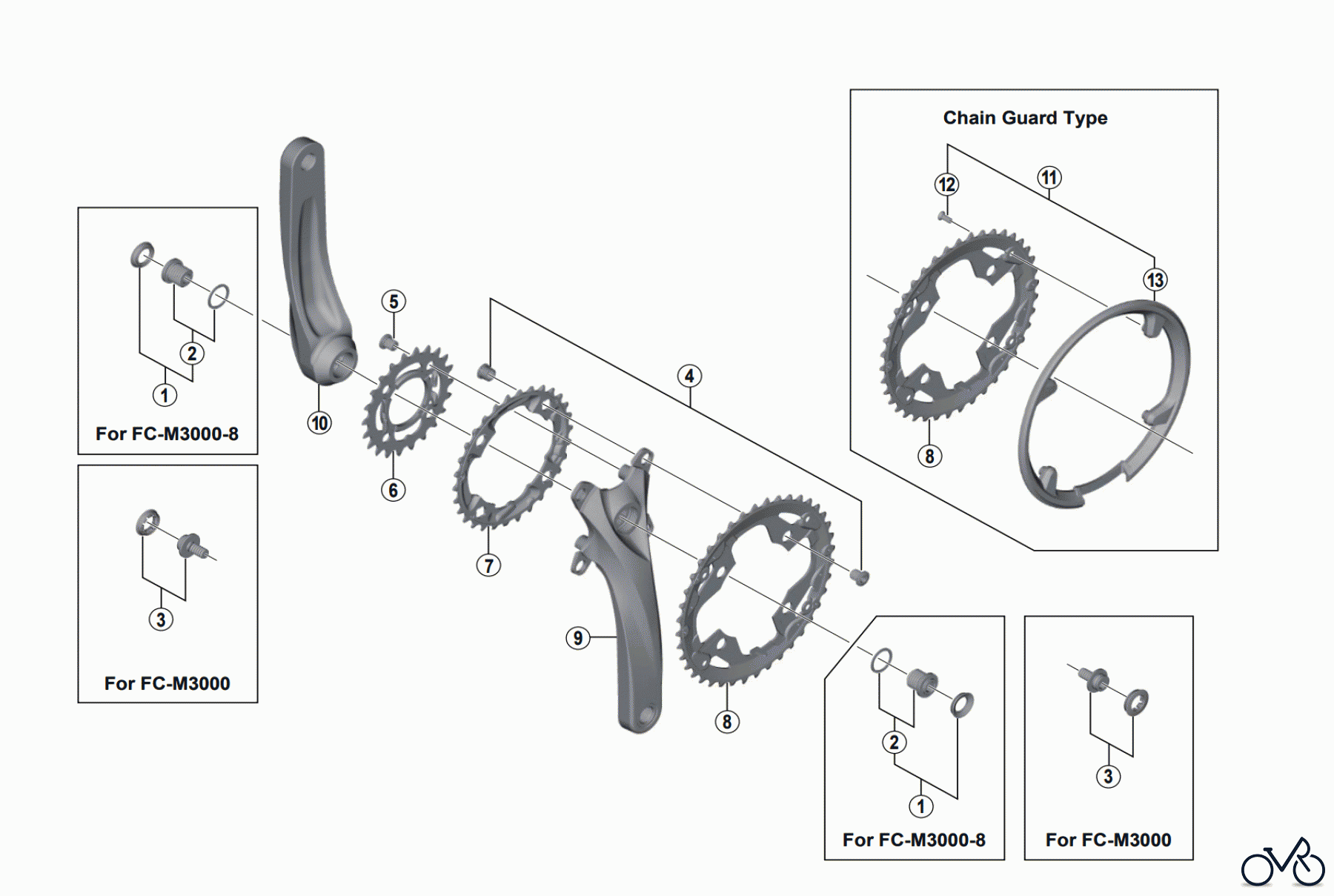

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M3000 ACERA Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1PL98010	Crank Arm Fixing Bolt Unit for FC-M3000-8 Y1PL98010
2	Y-1M098020	Crank Arm Fixing Bolt & Washer for FC-M3000-8 Y1M098020
3	Y-1FP98010	Crank Arm Fixing Bolt & Cap for FC-M3000 Y1FP98010
4	Y-10X98020	Double Gear Fixing Bolt (M8 x 8.5) & Nut (4 sets) Y10X98020
5	Y-1LV98060	Inner Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) Y1LV98060
6	Y-1PL98030	Chainring 22T-AX & Chain Protector Y1PL98030
7	Y-1PL98040	Chainring 30T-AX Y1PL98040
8	Y-1RT98010	Chainring 40T-AX Y1RT98010
9	Y-1RT07000	Right Hand Crank Arm 165 mm for FC-M3000-8 Y1RT07000
9	Y-1RT05000	Right Hand Crank Arm 170 mm for FC-M3000-8 Y1RT05000
9	Y-1RT03000	Right Hand Crank Arm 175 mm for FC-M3000-8 Y1RT03000
9	Y-1RU07000	Right Hand Crank Arm 165 mm for FC-M3000 Y1RU07000
9	Y-1RU05000	Right Hand Crank Arm 170 mm for FC-M3000 Y1RU05000
9	Y-1RU03000	Right Hand Crank Arm 175 mm for FC-M3000 Y1RU03000
10	Y-1RT07100	Left Hand Crank Arm 165 mm for FC-M3000-8 Y1RT07100
10	Y-1RT05100	Left Hand Crank Arm 170 mm for FC-M3000-8 Y1RT05100
10	Y-1RT03100	Left Hand Crank Arm 175 mm for FC-M3000-8 Y1RT03100
10	Y-1RU07100	Left Hand Crank Arm 165 mm for FC-M3000 Y1RU07100
10	Y-1RU05100	Left Hand Crank Arm 170 mm for FC-M3000 Y1RU05100
10	Y-1RU03100	Left Hand Crank Arm 175 mm for FC-M3000 Y1RU03100
11	Y-1RT98020	Chain Guard & Fixing Bolts Y1RT98020
12	Y-1N098090	Chain Guard Fixing Bolt (4 pcs.) Y1N098090
13	Y-1PK16000	Chain Guard Y1PK16000
