Shimano FC-M4060 ALIVIO Crankset

FC-M4060 ALIVIO Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

SM-BB51

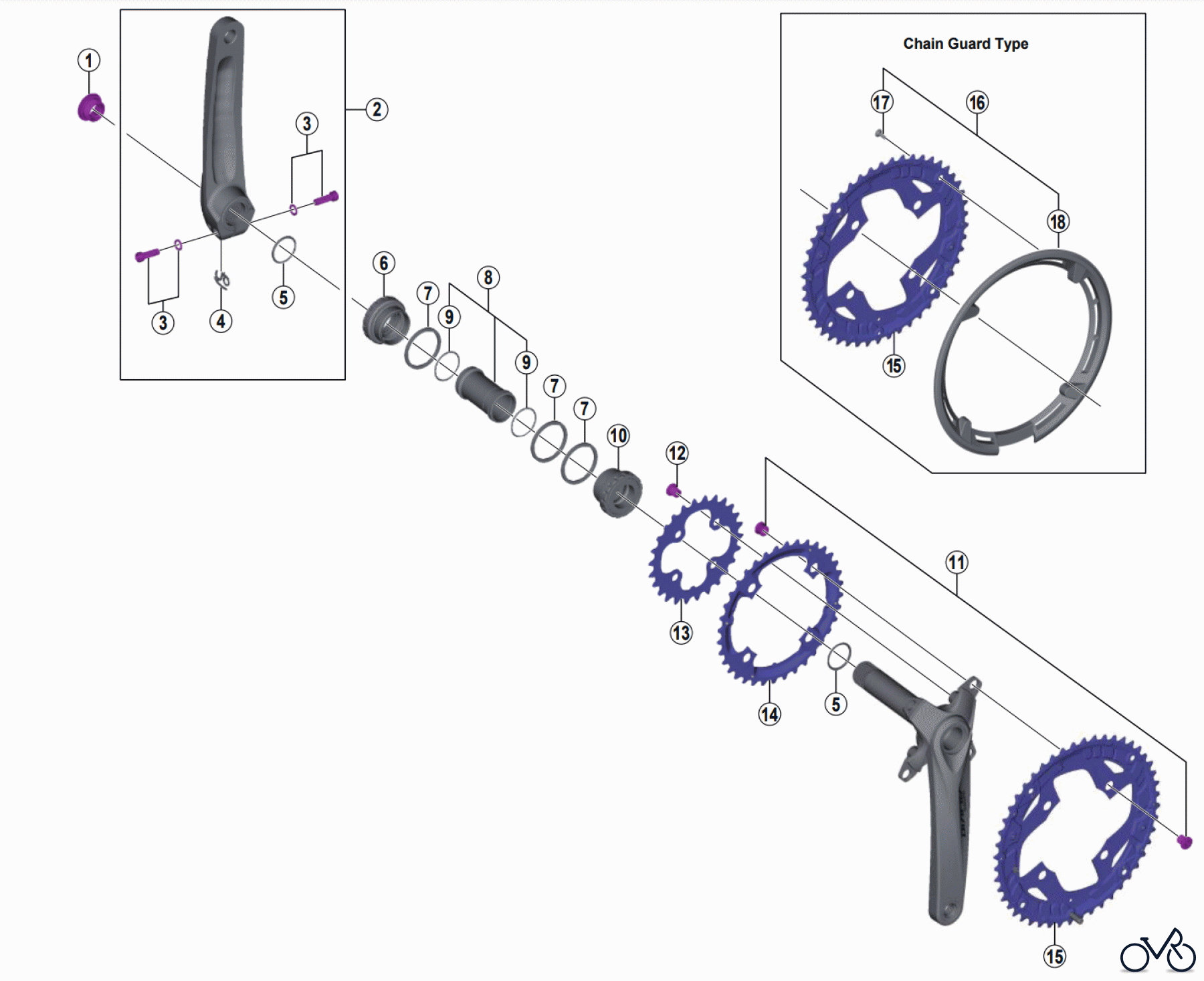

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M4060 ALIVIO Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Bolt A B Y1F811100
2	Y-1PK98010	Left Hand Crank Arm 165 mm A Y1PK98010
2	Y-1PK98020	Left Hand Crank Arm 170 mm A Y1PK98020
2	Y-1PK98030	Left Hand Crank Arm 175 mm A Y1PK98030
3	Y-1KS98030	Clamp Bolt (M6 x 19) & Washer A A Y1KS98030
4	Y-10011000	Plate Pin A Y10011000
5	Y-1F316000	Ring A A Y1F316000
6	Y-1LD98060	Left Hand Adapter (B.C.1.37" x 24T) English Thread A A Y1LD98060
7	Y-1F813000	Spacer (2.5 mm) A A Y1F813000
8	Y-1J898060	Inner Cover & O-Ring A A Y1J898060
9	Y-1TF21000	O-Ring A A Y1TF21000
10	Y-1LD98070	Right Hand Adapter (B.C.1.37" x 24T) English Thread A A Y1LD98070
11	Y-1NL98110	Double Gear Fixing Bolt (M8 x 8.5) & Nut (4 sets) A Y1NL98110
12	Y-1LV98060	Inner Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) A A Y1LV98060
13	Y-1LD26000	Chainring 26T for 48-36-26T B Y1LD26000
14	Y-1LD98090	Chainring 36T for 48-36-26T B Y1LD98090
15	Y-1PX98020	Chainring 48T for 48-36-26T B Y1PX98020
15	Y-1PX98030	Chainring 48T for Chain Guard for 48-36-26T B Y1PX98030
16	Y-1PN98200	Chain Guard & Fixing Screws A Y1PN98200
17	Y-1D298010	Chain Guard Fixing Screw (4 pcs.) A A Y1D298010
18	Y-1PM11000	Chain Guard Y1PM11000
