Shimano FC-TY301 Crankset

FC-TY301 Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

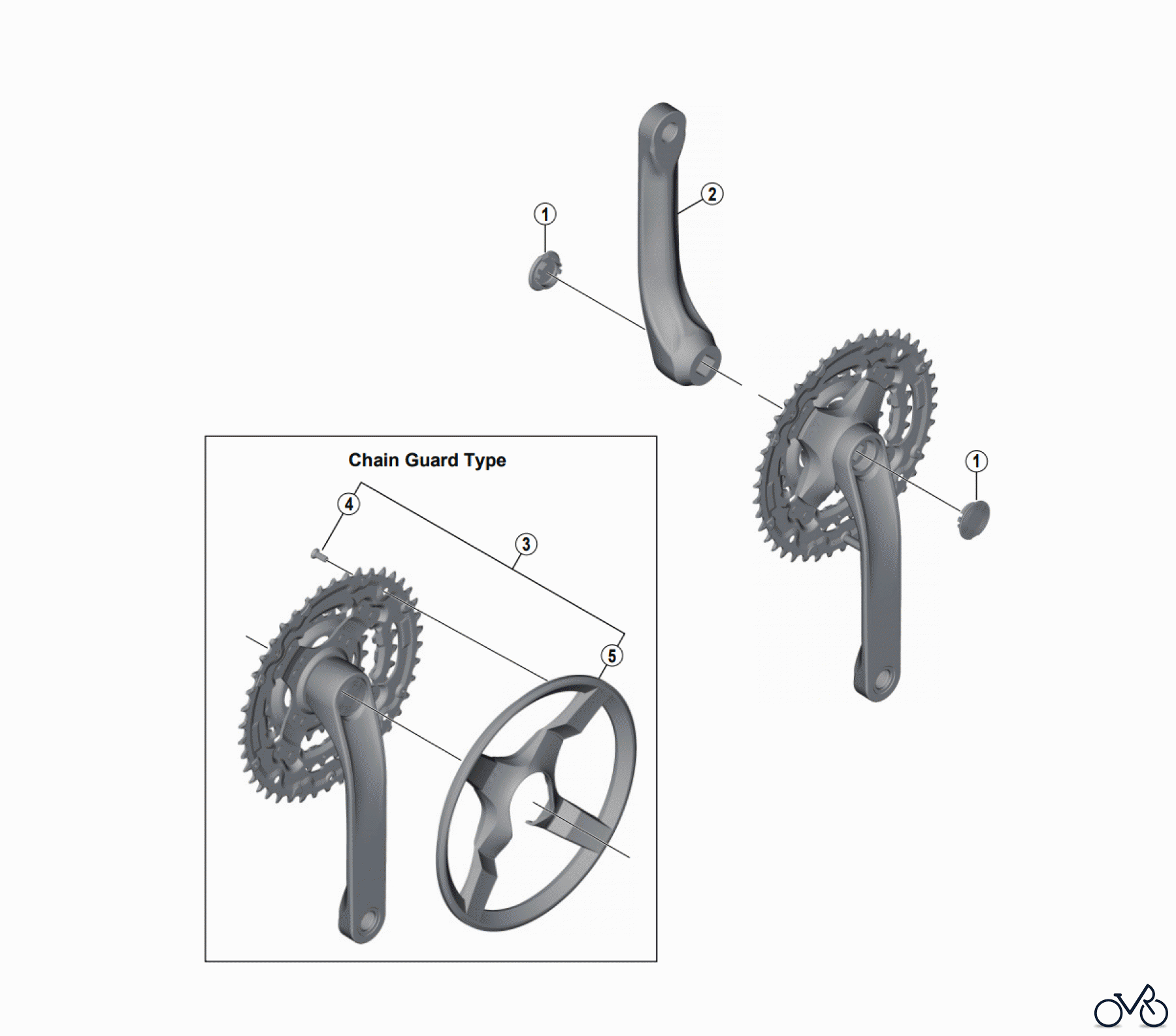

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-TY301 Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1R513000	Crank Arm Fixing Cap A Y1R513000
2	Y-1R613100	Left Hand Crank Arm 150 mm Y1R613100
2	Y-1R605100	Left Hand Crank Arm 170 mm B B Y1R605100
2	Y-1R603100	Left Hand Crank Arm 175 mm B B Y1R603100
3	Y-1R698010	42T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) B B Y1R698010
3	Y-1R698020	48T Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y1R698020
4	Y-1D298010	Chain Guard Fixing Screw (1 Unit = 4 pcs.) A A Y1D298010
5	Y-1R609000	42T Chain Guard B B Y1R609000
5	Y-1R611010	48T Chain Guard Y1R611010
