Shimano BB-ES300 Bottom Bracket Assembly

BB-ES300 Bottom Bracket Assembly BB Bottom Bracket- Tretlager

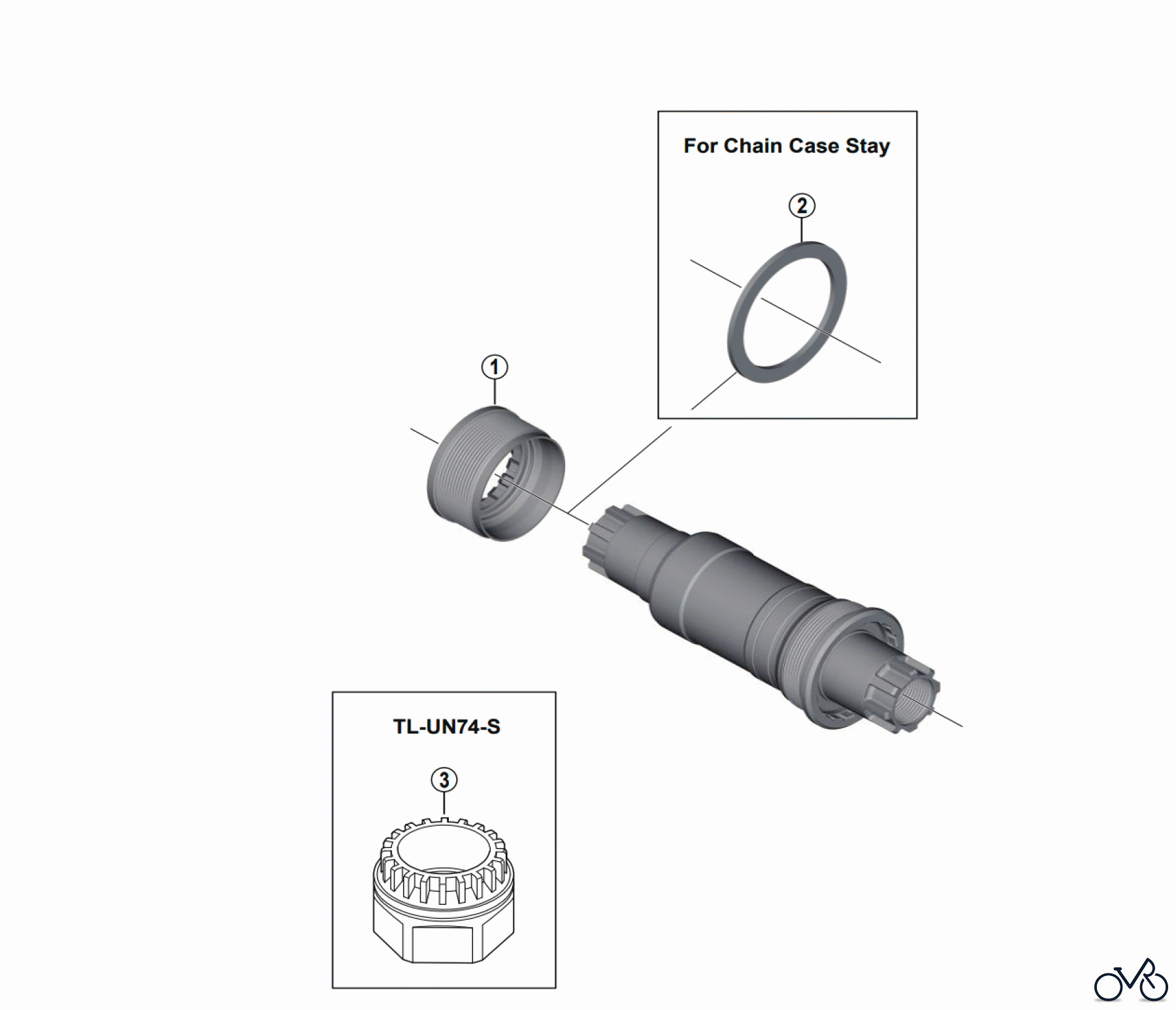

Here you will find the spare parts drawing for Shimano BB Bottom Bracket- Tretlager BB-ES300 Bottom Bracket Assembly. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1T702000	Left Hand Adapter (B.C.1.37" x 24T) English Thread for (Shell Width 68 mm / BB-ES300) B A A Y1T702000
1	Y-1T702010	Left Hand Adapter (B.C.1.37" x 24T) English Thread for (Shell Width 68 mm / BB-ES300-E / BB-ES300-K / BB-ES300-AK) B A A Y1T702010
1	Y-1T702200	Left Hand Adapter (B.C.1.37" x 24T) English Thread for (Shell Width 73 mm / BB-ES300) B A A Y1T702200
1	Y-1T702210	Left Hand Adapter (B.C.1.37" x 24T) English Thread for (Shell Width 73 mm / BB-ES300-E) B A A Y1T702210
1	Y-1T702100	Left Hand Adapter (M36 x 24T) Italian Thread for (Shell Width 70 mm / BB-ES300) B A A Y1T702100
2	Y-1SG12000	Spacer B (0.7 mm) for Chain Case Stay A A A Y1SG12000
2	Y-1SG11000	Spacer A (1.8 mm) for Chain Case Stay A A A Y1SG11000
3	Y-13009073	Adapter Removal Tool (TL-UN74-S) Y13009073
