Shimano HB-TX500 Vorderradnabe

HB-TX500 Vorderradnabe HB Hub - Vordere Nabe

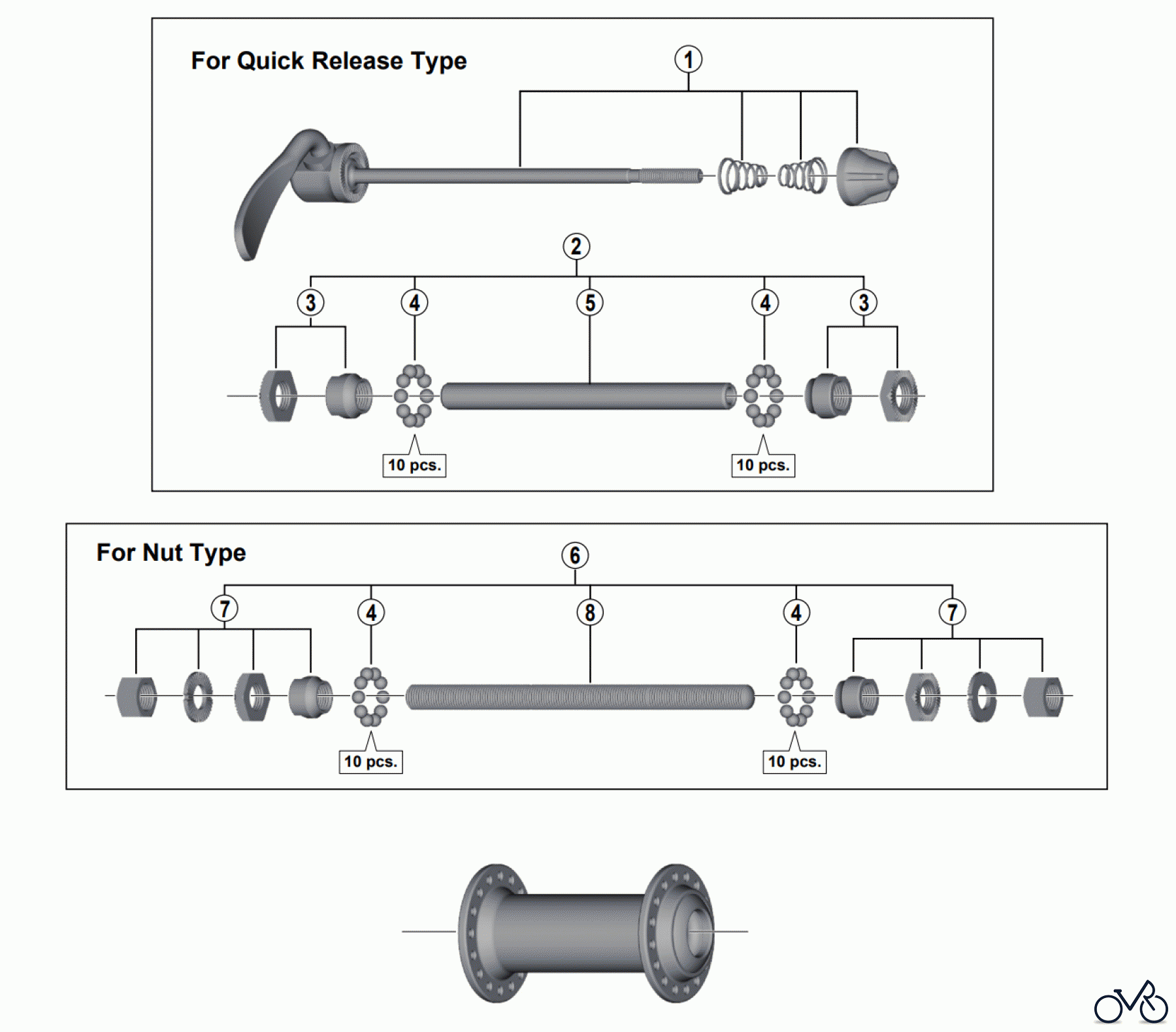

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-TX500 Vorderradnabe. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2AU98020	Complete Quick Release 129 mm (5-3/32") Black B Y2AU98020
1	Y-2A398010	Complete Quick Release 133 mm (5-1/4") Black B Y2A398010
2	Y-2BT98010	Complete Hub Axle 108 mm (4-1/4") for Quick Release Type Y2BT98010
3	Y-2BT98020	Lock Nut Unit for Quick Release Type Y2BT98020
4	Y-00091210	Steel Ball (3/16") 20 pcs. A Y00091210
5	Y-21C03100	Hub Axle M9 x 108 mm (4-1/4") for Quick Release Type A Y21C03100
6	Y-2BV98010	Complete Hub Axle 140 mm (5-1/2") for Nut Type Y2BV98010
7	Y-2BV98020	Lock Nut Unit for Nut Type Y2BV98020
8	Y-21D05200	Hub Axle M9 x 140 mm (5-1/2") for Nut Type Y21D05200
