Shimano WH-M8000-TL-R12-275 DEORE XT Rear Wheel (8/9/10/MTB 11-speed)

WH-M8000-TL-R12-275 DEORE XT Rear Wheel (8/9/10/MTB 11-speed) WH Wheels - Laufräder

SM-AX76

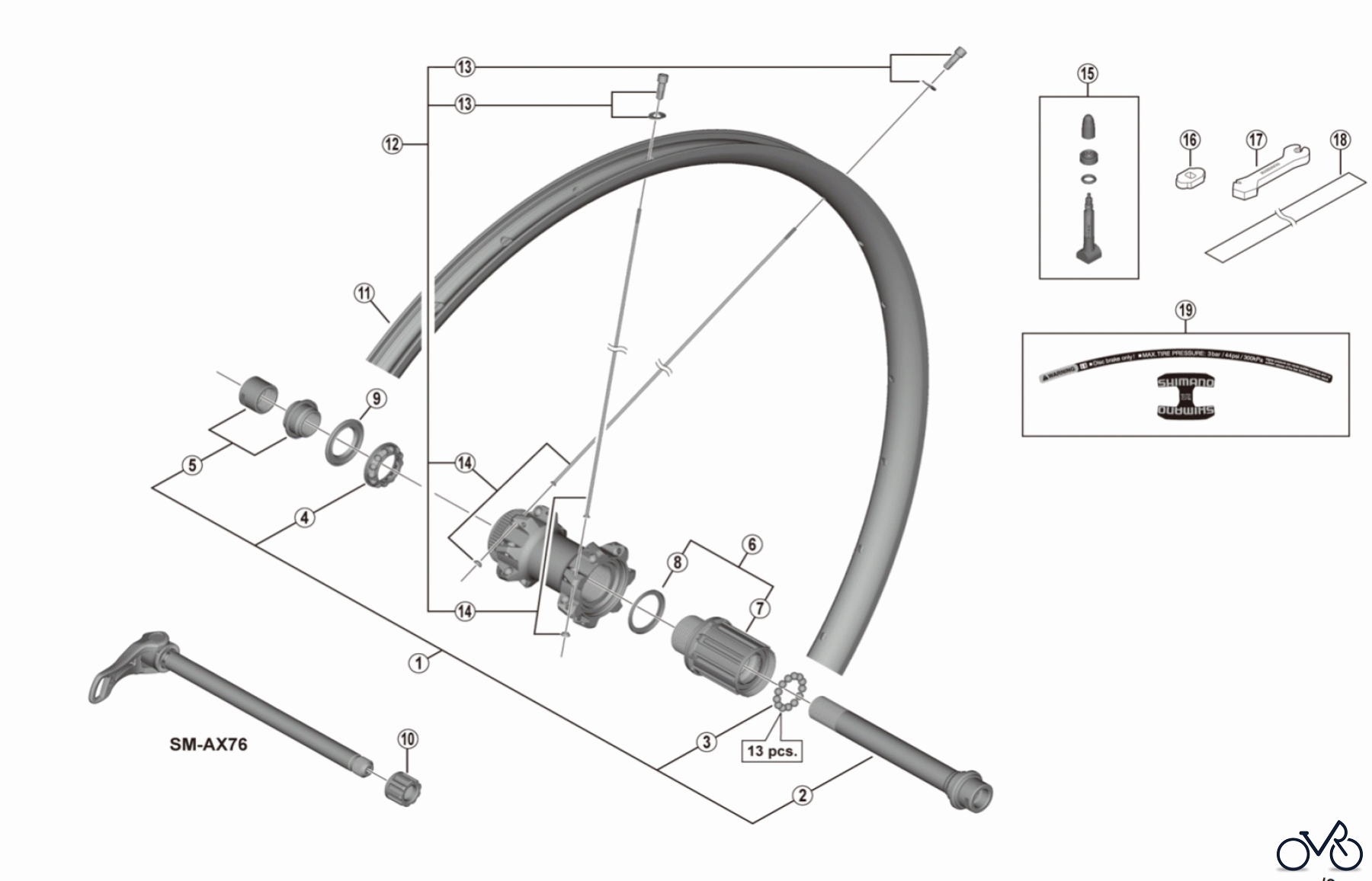

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-M8000-TL-R12-275 DEORE XT Rear Wheel (8/9/10/MTB 11-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3TH98010	Complete Hub Axle Y3TH98010
2	Y-3TH98020	Hub Axle Unit Y3TH98020
3	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
4	Y-3D498050	Ball Retainer (3/16") Y3D498050
5	Y-3TH98030	Left Hand Lock Nut (M15) & Cone (M15) w/Dust Cover Y3TH98030
6	Y-38V98010	Complete Freewheel Body Y38V98010
7	Y-38V98020	Freewheel Body Unit Y38V98020
8	Y-3CZ12000	Spacer for Inner A A Y3CZ12000
9	Y-26D10000	Seal Ring A A Y26D10000
10	Y-27Y02000	Fixing Nut (M12) A A Y27Y02000
11	E-WHRIMZ2F4W	Rim {28H} A EWHRIMZ2F4W
12	E-WHSPOKEY272R	Spoke Unit {Spoke (281.5 mm x 28 pcs.) / Spherical Washer (28 pcs.) / Nipple (28 pcs.) / Rim Washer (28 pcs.)} A EWHSPOKEY272R
13	Y-03X98010	Nipple & Rim Washer Y03X98010
14	Y-03X98020	Spoke (281.5 mm) w/Spherical Washer Y03X98020
15	Y-4RJ98020	Valve Unit Y4RJ98020
16	Y-4RJ10000	Valve Tool A A Y4RJ10000
17	Y-4EF28000	Nipple Wrench 4.0 A A Y4EF28000
18	Y-47V00010	Tubeless Tape A A Y47V00010
19	Y-03X98030	Rim Sticker Unit Y03X98030
