Shimano WH-M8000-TL-R12-29 DEORE XT Rear Wheel (8/9/10/MTB 11-speed)

WH-M8000-TL-R12-29 DEORE XT Rear Wheel (8/9/10/MTB 11-speed) WH Wheels - Laufräder

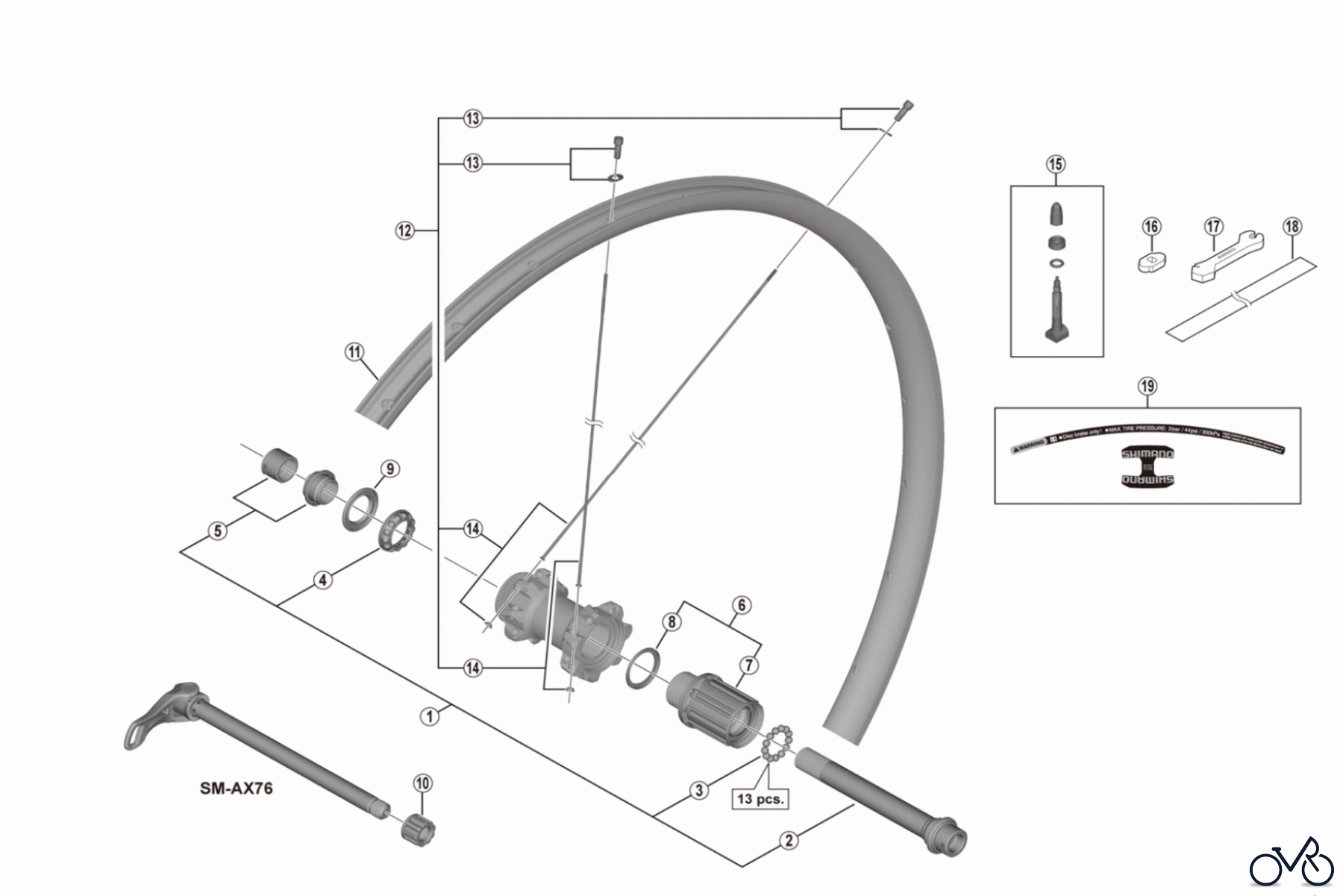

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-M8000-TL-R12-29 DEORE XT Rear Wheel (8/9/10/MTB 11-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3TH98010	Complete Hub Axle Y3TH98010
2	Y-3TH98020	Hub Axle Unit Y3TH98020
3	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
4	Y-3D498050	Ball Retainer (3/16") Y3D498050
5	Y-3TH98030	Left Hand Lock Nut (M15) & Cone (M15) w/Dust Cover Y3TH98030
6	Y-38V98010	Complete Freewheel Body A Y38V98010
7	Y-38V98020	Freewheel Body Unit Y38V98020
8	Y-3CZ12000	Spacer for Inner A A Y3CZ12000
9	Y-26D10000	Seal Ring A A Y26D10000
10	Y-27Y02000	Fixing Nut (M12) AAA Y27Y02000
11	E-WHRIMZ2F4X	Rim {28H} A A EWHRIMZ2F4X
12	E-WHSPOKEY272P	Spoke Unit {Spoke (300 mm x 28 pcs.) / Spherical Washer (28 pcs.) / Nipple (28 pcs.) / Rim Washer (28 pcs.)} A A EWHSPOKEY272P
13	Y-03X98010	Nipple & Rim Washer A A Y03X98010
14	Y-03P98010	Spoke (300 mm) w/Spherical Washer Y03P98010
15	Y-4RJ98020	Valve Unit Y4RJ98020
16	Y-4RJ10000	Valve Tool A A Y4RJ10000
17	Y-4EF28000	Nipple Wrench 4.0 A A Y4EF28000
18	Y-47V00010	Tubeless Tape A A Y47V00010
19	Y-03P98020	Rim Sticker Unit Y03P98020
