Shimano ST-6870 ULTEGRA Dual Control Lever

ST-6870 ULTEGRA Dual Control Lever ST Rapidfire- Schaltbremshebel

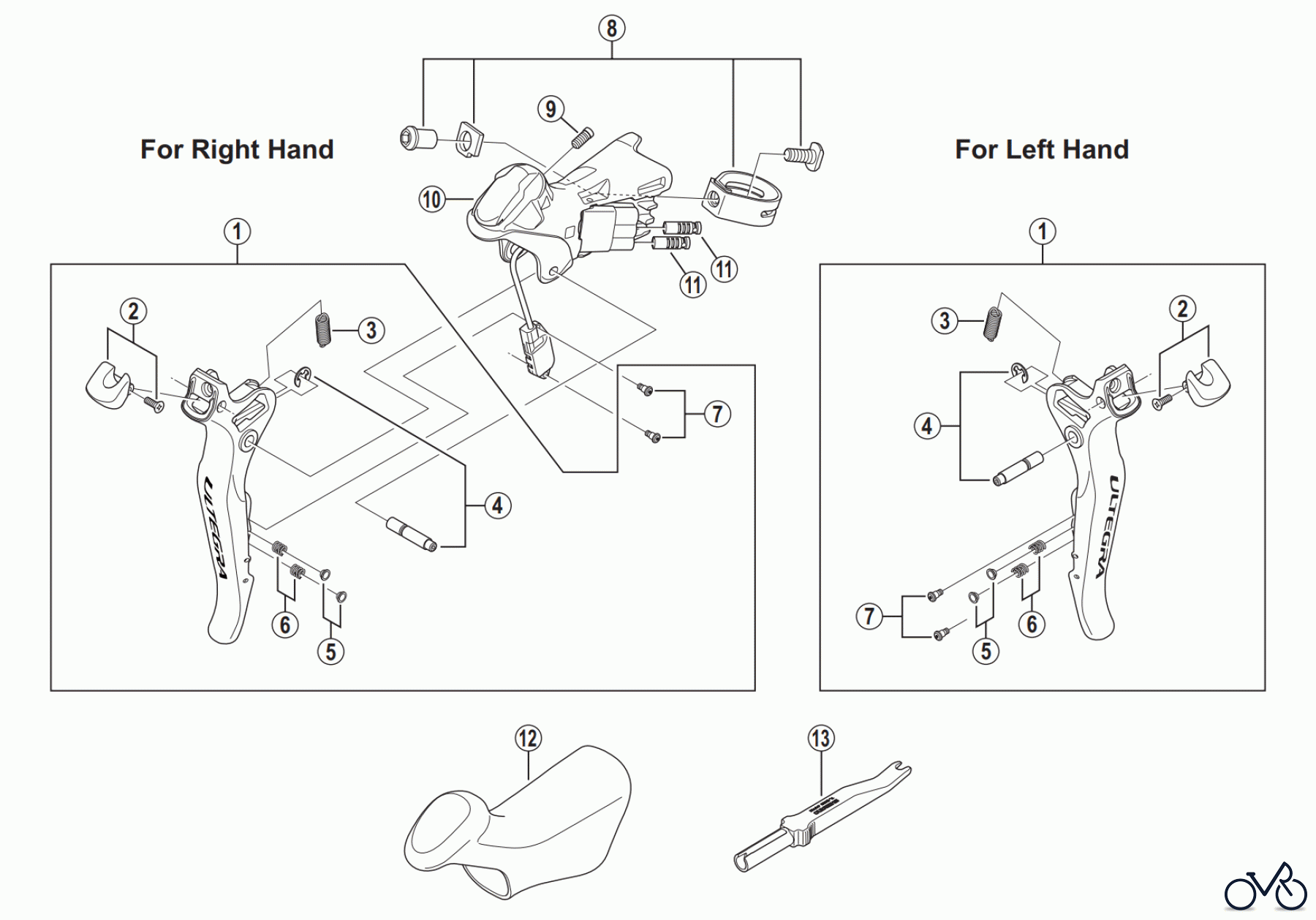

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-6870 ULTEGRA Dual Control Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-00S98010	R.H. Main Lever Assembly Y00S98010
1	Y-00R98010	L.H. Main Lever Assembly Y00R98010
2	Y-00S98020	R.H. Name Plate & Fixing Screw Y00S98020
2	Y-00R98020	L.H. Name Plate & Fixing Screw Y00R98020
3	Y-00S000B0	Return Spring Y00S000B0
4	Y-00S98030	Lever Axle & E-Ring Y00S98030
5	Y-6RX98070	Switch Spring Button (2 pcs.) A A A Y6RX98070
6	Y-6RX98080	Switch Spring (2 pcs.) AAA Y6RX98080
7	Y-6RX98060	Switch Unit Fixing Screw (2 pcs.) A A Y6RX98060
8	Y-00S98040	Clamp Band Unit (ø23.8 mm - ø24.2 mm) A A Y00S98040
9	Y-00S000A0	Grip Adjusting Screw Y00S000A0
10	Y-00S98050	R.H. Bracket Y00S98050
10	Y-00R98030	L.H. Bracket Y00R98030
11	Y-6VE15000	Dummy Plug AAA Y6VE15000
12	Y-00S98060	Bracket Covers (Pair) Y00S98060
13	Y-6VE16000	TL-EW02 Plug Tool Y6VE16000
