Shimano ST-R8050 ULTEGRA Dual Control Lever (2x11-speed)

ST-R8050 ULTEGRA Dual Control Lever (2x11-speed) ST Rapidfire- Schaltbremshebel

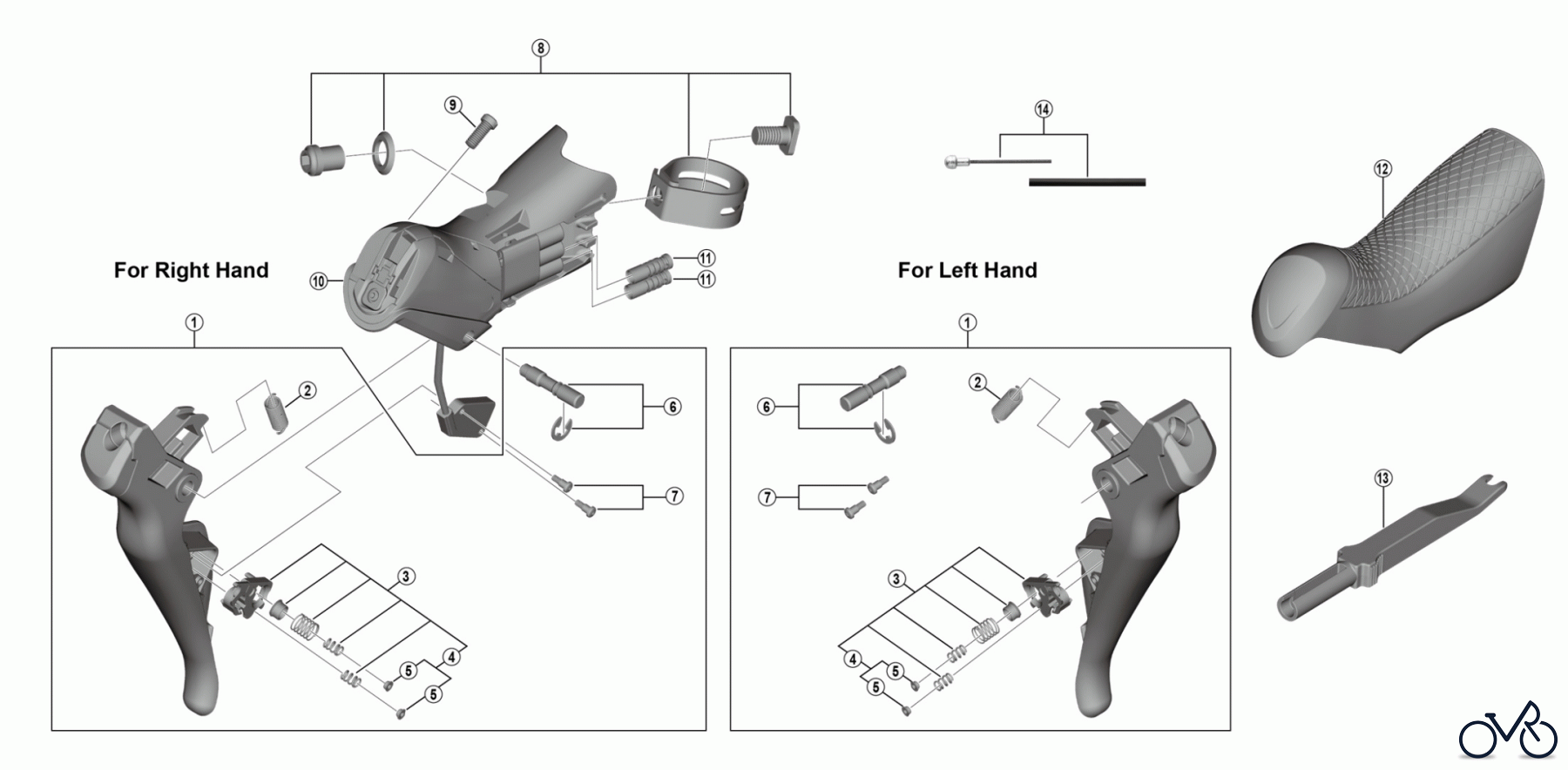

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-R8050 ULTEGRA Dual Control Lever (2x11-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0E298020	R.H. Main Lever Assembly Y0E298020
1	Y-0E398010	L.H. Main Lever Assembly Y0E398010
2	Y-0C800043	Return Spring Y0C800043
3	Y-0E298030	R.H. SW Button Unit Y0E298030
3	Y-0E398020	L.H. SW Button Unit Y0E398020
4	Y-0C898040	SW Button (2 pcs.) Y0C898040
5	Y-0C800024	SW Button Y0C800024
6	Y-0E298040	Lever Axle & E-Ring Y0E298040
7	Y-0C898060	Switch Unit Fixing Screw (2 pcs.) Y0C898060
8	Y-0E298050	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y0E298050
9	Y-0C800012	Grip Adjusting Screw Y0C800012
10	Y-0E298060	R.H. Bracket Unit Y0E298060
10	Y-0E398030	L.H. Bracket Unit Y0E398030
11	Y-6VE15000	Dummy Plug Y6VE15000
12	Y-0E298010	Bracket Covers (Pair) Y0E298010
13	Y-6VE16000	TL-EW02 Plug Tool Y6VE16000
14	Y-8YZ98010	BC-9000 polymer coated brake cable sets (Black) Y8YZ98010
14	Y-8YZ98020	BC-9000 polymer coated brake cable sets (White) Y8YZ98020
14	Y-8YZ98030	BC-9000 polymer coated brake cable sets (Red) Y8YZ98030
14	Y-8YZ98040	BC-9000 polymer coated brake cable sets (High-tech gray) Y8YZ98040
14	Y-8YZ98080	BC-9000 polymer coated brake cable sets (Orange) Y8YZ98080
14	Y-8YZ98090	BC-9000 polymer coated brake cable sets (Green) Y8YZ98090
14	Y-8YZ98091	BC-9000 polymer coated brake cable sets (Blue) Y8YZ98091
14	Y-8YZ98092	BC-9000 polymer coated brake cable sets (Yellow) Y8YZ98092
