Shimano ST-R9150 DURA-ACE Dual Control Lever

ST-R9150 DURA-ACE Dual Control Lever ST Rapidfire- Schaltbremshebel

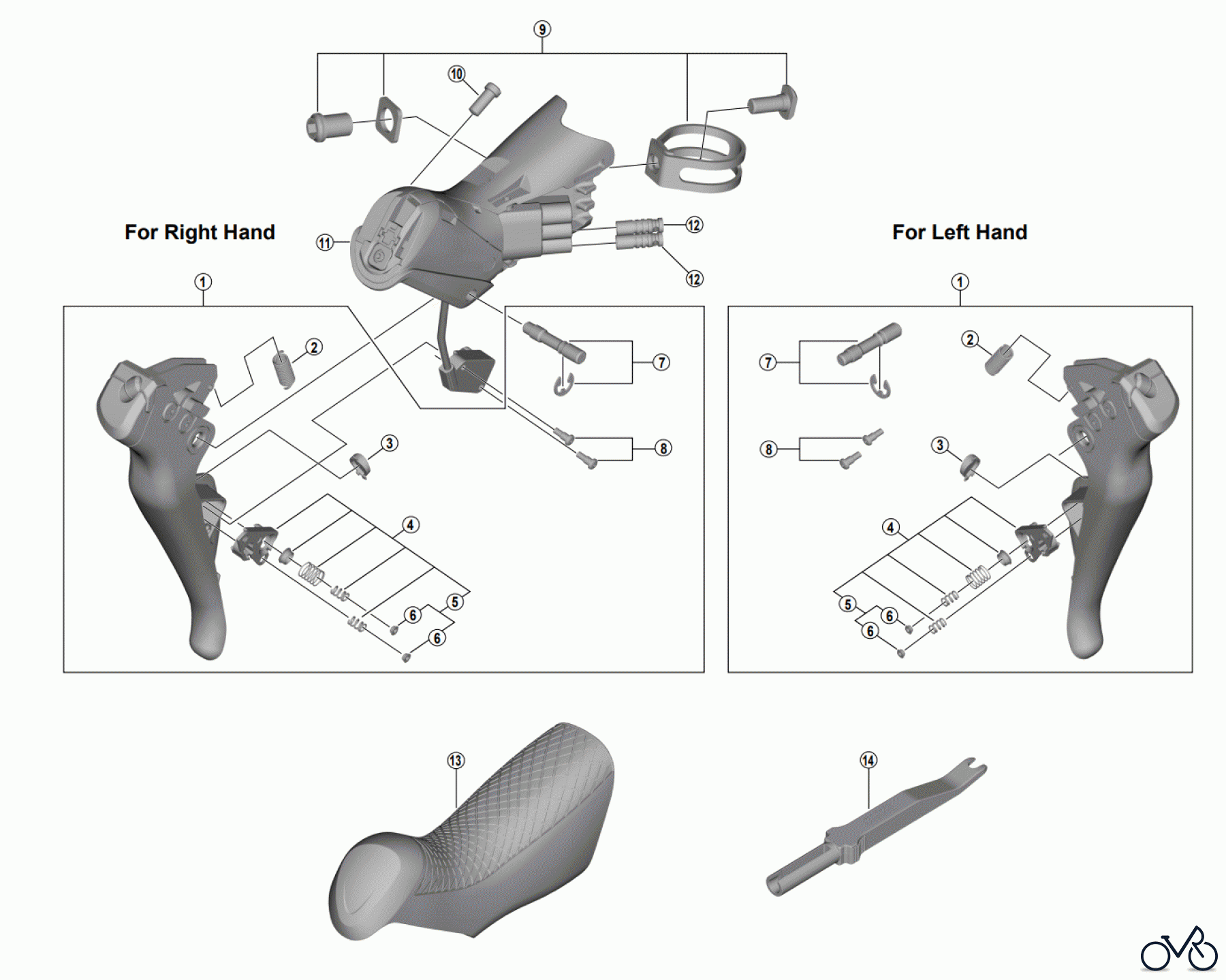

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-R9150 DURA-ACE Dual Control Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0C898020	R.H. Main Lever Assembly Y0C898020
1	Y-0C798010	L.H. Main Lever Assembly Y0C798010
2	Y-0C800043	Return Spring Y0C800043
3	Y-0C800009	SW Axle Cap Y0C800009
4	Y-0C898090	R.H. SW Button Unit Y0C898090
4	Y-0C798030	L.H. SW Button Unit Y0C798030
5	Y-0C898040	SW Button (2 pcs.) Y0C898040
6	Y-0C800024	SW Button Y0C800024
7	Y-0C898050	Lever Axle & E-Ring Y0C898050
8	Y-0C898060	Switch Unit Fixing Screw (2 pcs.) Y0C898060
9	Y-0C898070	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y0C898070
10	Y-0C800012	Grip Adjusting Screw Y0C800012
11	Y-0C898080	R.H. Bracket Unit Y0C898080
11	Y-0C798020	L.H. Bracket Unit Y0C798020
12	Y-6VE15000	Dummy Plug Y6VE15000
13	Y-0C898010	Bracket Covers (Pair) Y0C898010
14	Y-6VE16000	TL-EW02 Plug Tool Y6VE16000
