Shimano DH-F703 CAPREO Hub Dynamo (6V-- 3 W)

DH-F703 CAPREO Hub Dynamo (6V-- 3 W) DH Dynamo Hub - Nabendynamo

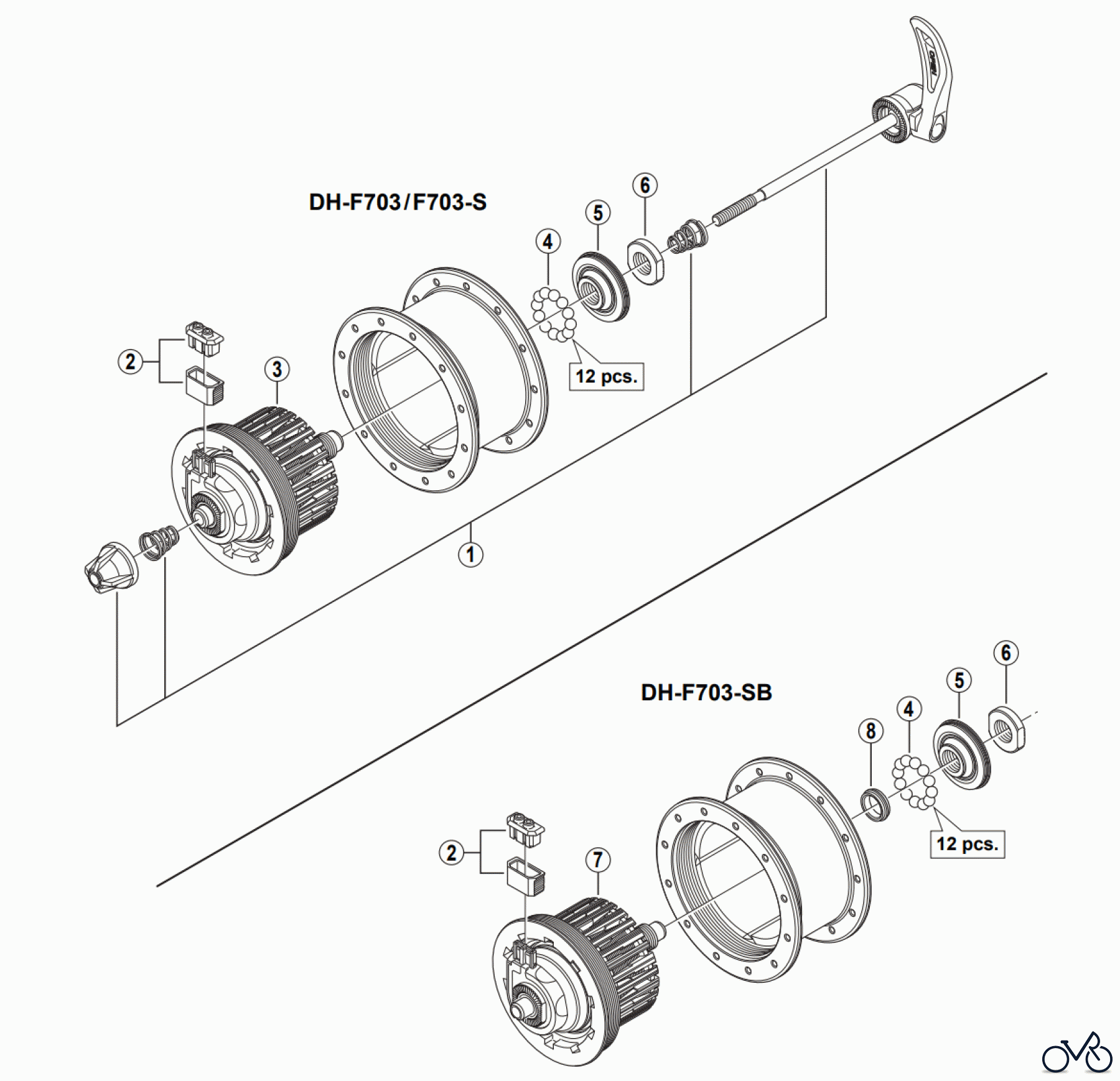

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-F703 CAPREO Hub Dynamo (6V-- 3 W). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2YK98010	Complete Quick Release 107 mm (4-7/32") Y2YK98010
2	Y-2SS98030	Connector Cap & Cover Y2SS98030
3	Y-2YK98020	Internal Assembly (Axle Length 82 mm) for DH-F703/F703-S Y2YK98020
4	Y-00091210	Steel Ball (3/16") 20 pcs Y00091210
5	Y-2YN98030	Cone (M11 x 10.5 mm) w/Dust Seal Y2YN98030
6	Y-2ST03000	Serated Lock Nut (M11 x 4 mm) Y2ST03000
7	Y-2YK98030	Internal Assembly (Axle Length 86.5 mm) for DH-F703-SB Y2YK98030
8	Y-2ZW20000	Grease Guard Y2ZW20000
