Shimano DH-3D32-QR Nabendynamo

DH-3D32-QR Nabendynamo DH Dynamo Hub - Nabendynamo

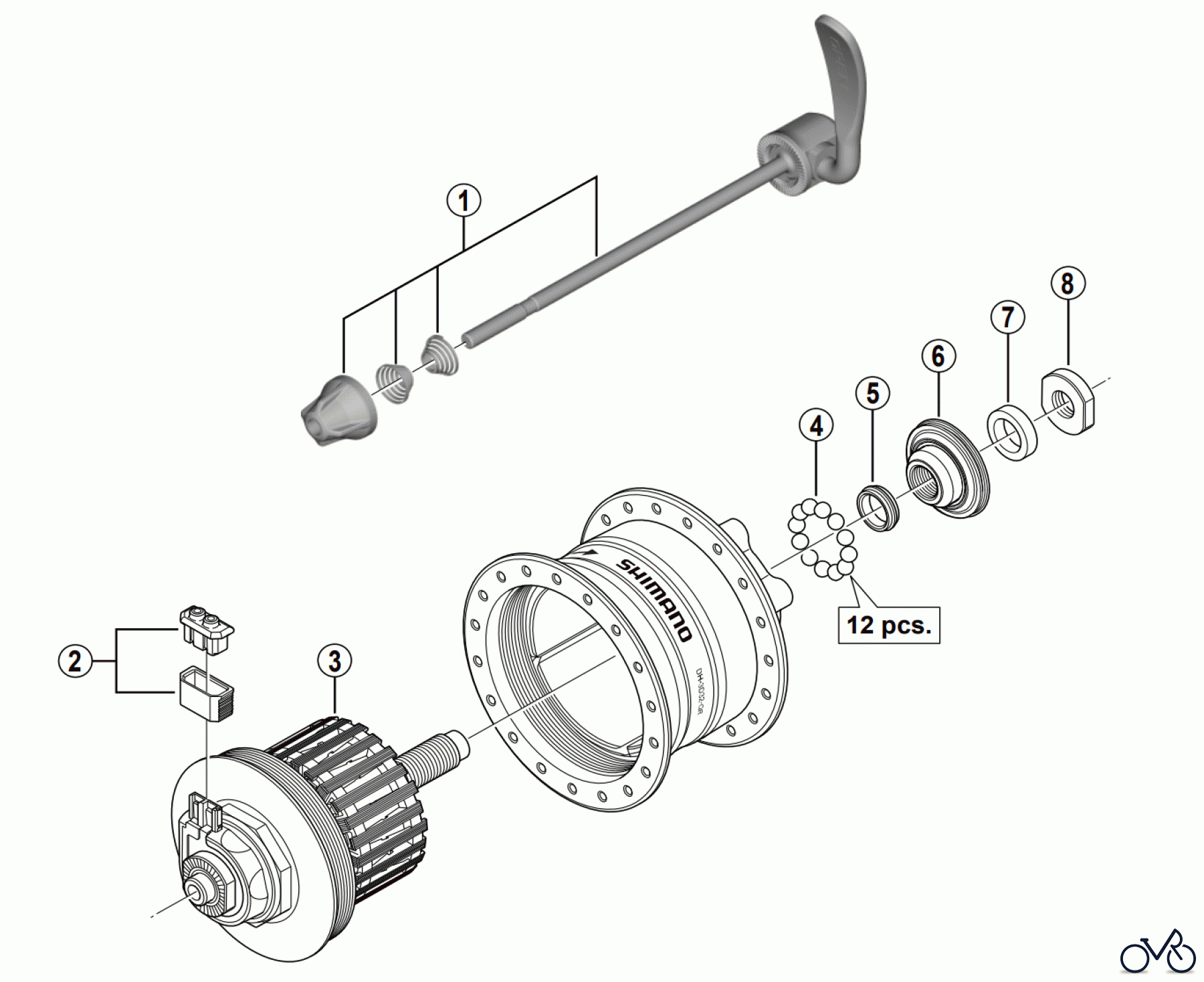

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-3D32-QR Nabendynamo. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2AU98020	Complete Quick Release 129 mm (5-3/32") Black A A Y2AU98020
1	Y-2AU98030	Complete Quick Release 133 mm (5-1/4") Silver Y2AU98030
1	Y-2A398010	Complete Quick Release 133 mm (5-1/4") Black Y2A398010
2	Y-2SS98030	Connector Cap & Cover A A Y2SS98030
3	Y-28S98010	Internal Assembly (Silver Coating / Axle Length 108 mm) B B Y28S98010
3	Y-28S98020	Internal Assembly (Black Coating / Axle Length 108 mm) B B Y28S98020
4	Y-00091210	Steel Ball (3/16") 20 pcs. A A Y00091210
5	Y-2ZW20000	Grease Guard A A Y2ZW20000
6	Y-2ZH98050	Cone (M11 x 13 mm) w/Dust Seal A Y2ZH98050
7	Y-20R02100	Left Hand Spacer (3 mm) A Y20R02100
8	Y-3BT04200	Serated Lock Nut (M11 x 4 mm) Y3BT04200
