Shimano DH-3D72 Hub Dynamo

DH-3D72 Hub Dynamo DH Dynamo Hub - Nabendynamo

Shimano DH Dynamo Hub - Nabendynamo DH-3D72 Hub Dynamo

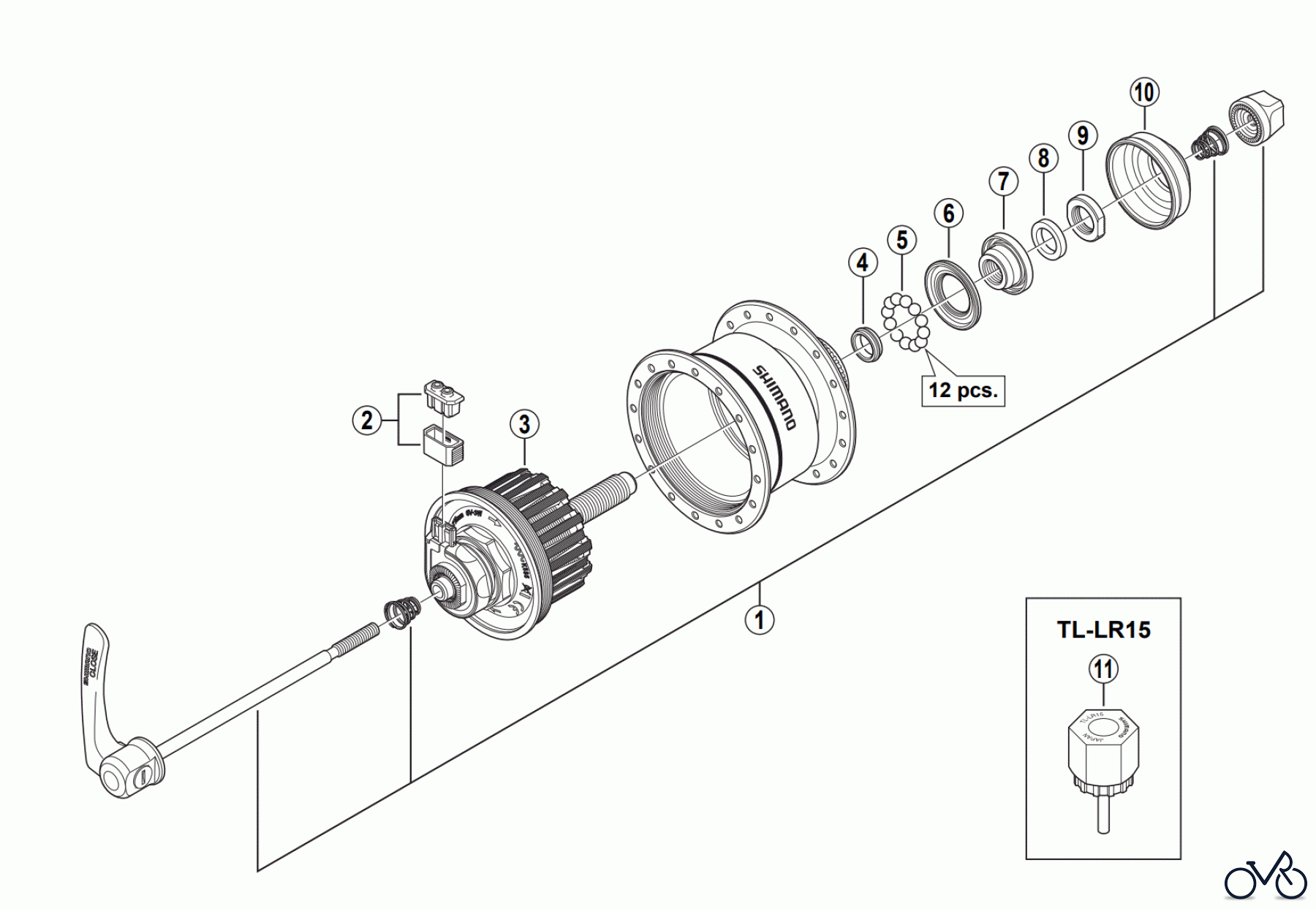

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-3D72 Hub Dynamo. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-2TB98010Schnellspanner 133 mm HB-R505 Y2TB98010
2 Shimano Verbindungs-SteckerY-2SS98030Verbindungs-Stecker Y2SS98030
3 Y-2YW98010Dynamoeinheit 108 mm Y2YW98010
4 Shimano Fettschutz-Kappe DH-3N30Y-2ZW20000Fettschutz-Kappe DH-3N30 Y2ZW20000
5 Shimano KUGEL STAHL 3/16"X20Y-00091210KUGEL STAHL 3/16"X20 Y00091210
6 Shimano DichtringY-2YX11000Dichtring Y2YX11000
7 Shimano Konus DH-3D72 M11 x 12.1 mmY-2YW98020Konus DH-3D72 M11 x 12.1 mm Y2YW98020
8 Y-20R02100Distanzring Links 3mm Y20R02100
9 Shimano Kontermutter M11x4 mmY-3BT04200Kontermutter M11x4 mm Y3BT04200
10 Y-24Z02000Abdeckkappe Für Center Lock Y24Z02000
11 Shimano Verschlussring-Werkzeug TL-LR15Y-12009230Verschlussring-Werkzeug TL-LR15 Y12009230
