Shimano DH-T4000-1N ALIVIO Hub Dynamo

DH-T4000-1N ALIVIO Hub Dynamo DH Dynamo Hub - Nabendynamo

Shimano DH Dynamo Hub - Nabendynamo DH-T4000-1N ALIVIO Hub Dynamo

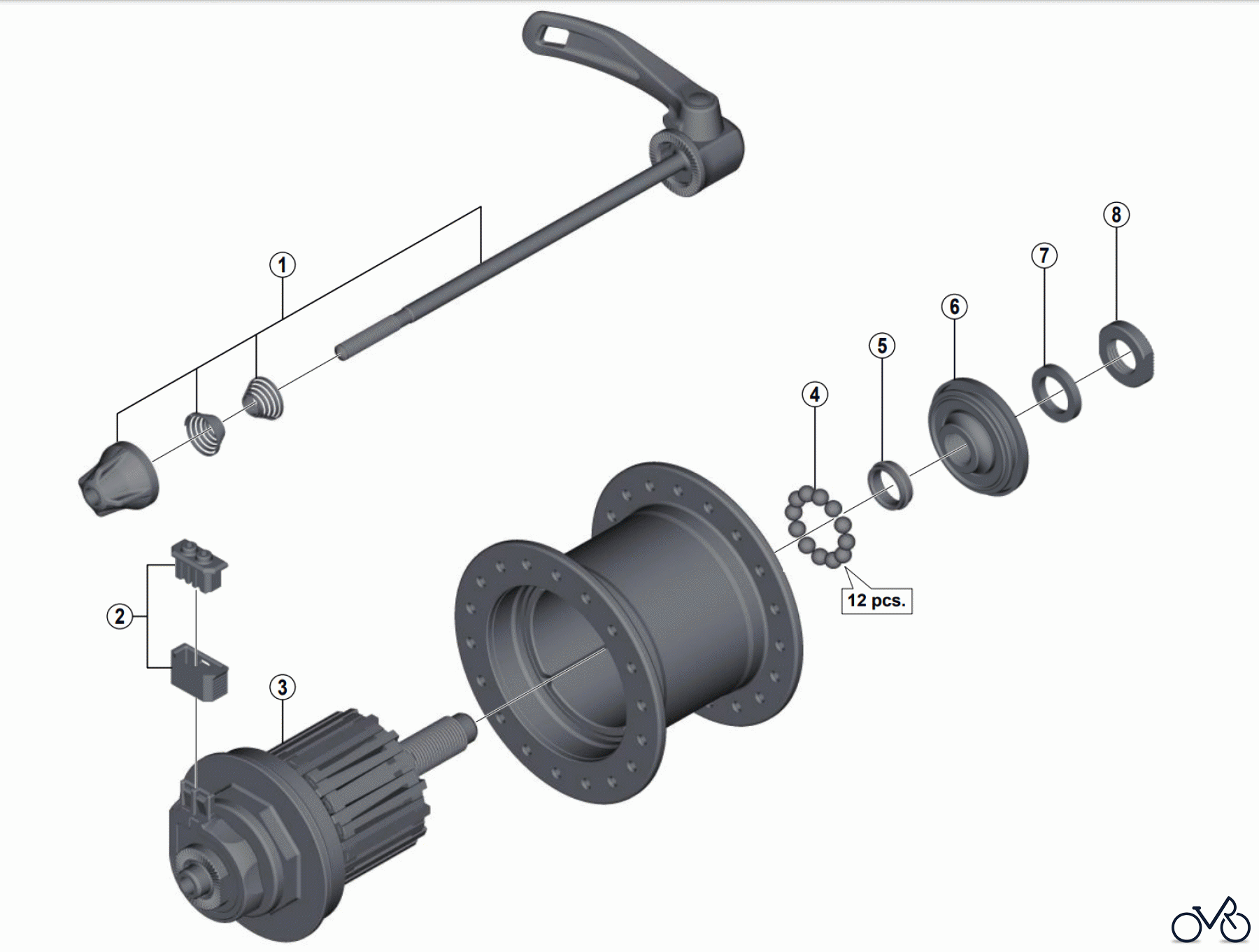

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-T4000-1N ALIVIO Hub Dynamo. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-29C98010 Complete Quick Release133 mm B Y29C98010
2 Shimano Connector Cap & Cover A A Y-2SS98030 Connector Cap & Cover A A Y2SS98030
3 Y-29L98010 Internal Assembly (Black Coating / Axle Length 108 mm) Y29L98010
3 Y-29L98020 Internal Assembly (Silver Coating / Axle Length 108 mm) Y29L98020
4 Shimano Steel Ball (3/16") 20 pcs. A A Y-00091210 Steel Ball (3/16") 20 pcs. A A Y00091210
5 Shimano Grease Guard A Y-2ZW20000 Grease Guard A Y2ZW20000
6 Shimano Cone (M11x13 mm) w/Dust Seal Y-29L98030 Cone (M11x13 mm) w/Dust Seal Y29L98030
7 Y-29L00080 LH Spacer (2.5 mm) Y29L00080
8 Shimano Serrated Lock Nut Y-3BT04200 Serrated Lock Nut Y3BT04200
