Shimano HB-RM40 VorderradnabeTourney A070

HB-RM40 VorderradnabeTourney A070 HB Hub - Vordere Nabe

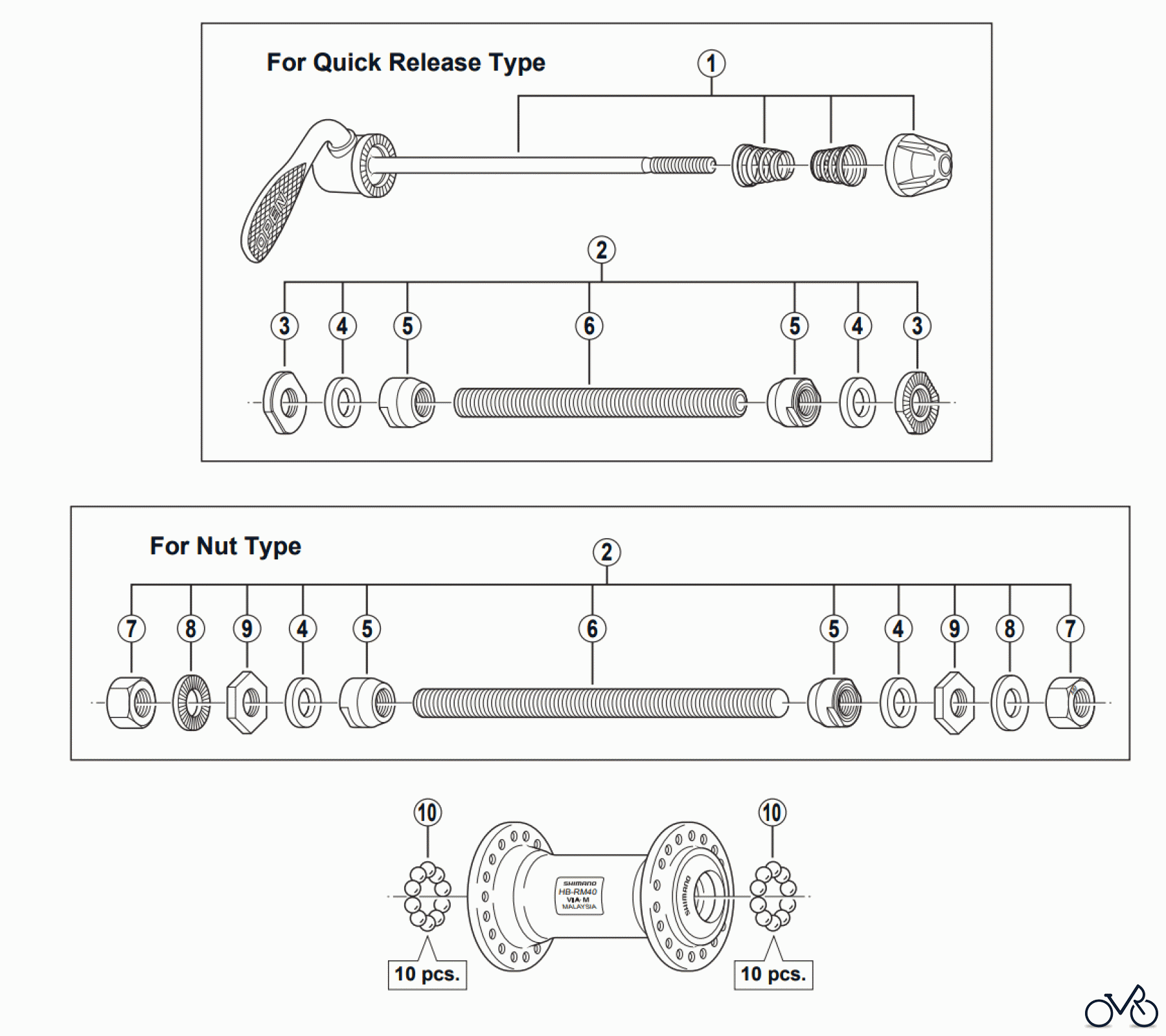

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-RM40 VorderradnabeTourney A070. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2ST98030	Complete Quick Release 133 mm (5-1/4") Y2ST98030
2	Y-21H98050	Complete Hub Axle 108 mm (4-1/4") for Quick Release Type Y21H98050
2	Y-21J98010	Complete Hub Axle 140 mm (5-1/2") for Nut Type Y21J98010
3	Y-21H08100	Serated Lock Nut 3 mm for Quick Release Type Y21H08100
4	Y-30107020	Washer 2 mm Y30107020
5	Y-23104000	Cone M9 x 10.4 mm Y23104000
6	Y-21C03100	Hub Axle 108 mm (4-1/4") for Quick Release Type Y21C03100
6	Y-21D05200	Hub Axle 140 mm (5-1/2") for Nut Type Y21D05200
7	Y-21D02000	Fixing Nut Y21D02000
8	Y-21D03000	Rollet Washer 2 mm Y21D03000
9	Y-21D04010	Lock Nut 3 mm for Nut Type Y21D04010
10	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
