Shimano HB-R7070 SHIMANO 105 Front Hub

HB-R7070 SHIMANO 105 Front Hub HB Hub - Vordere Nabe

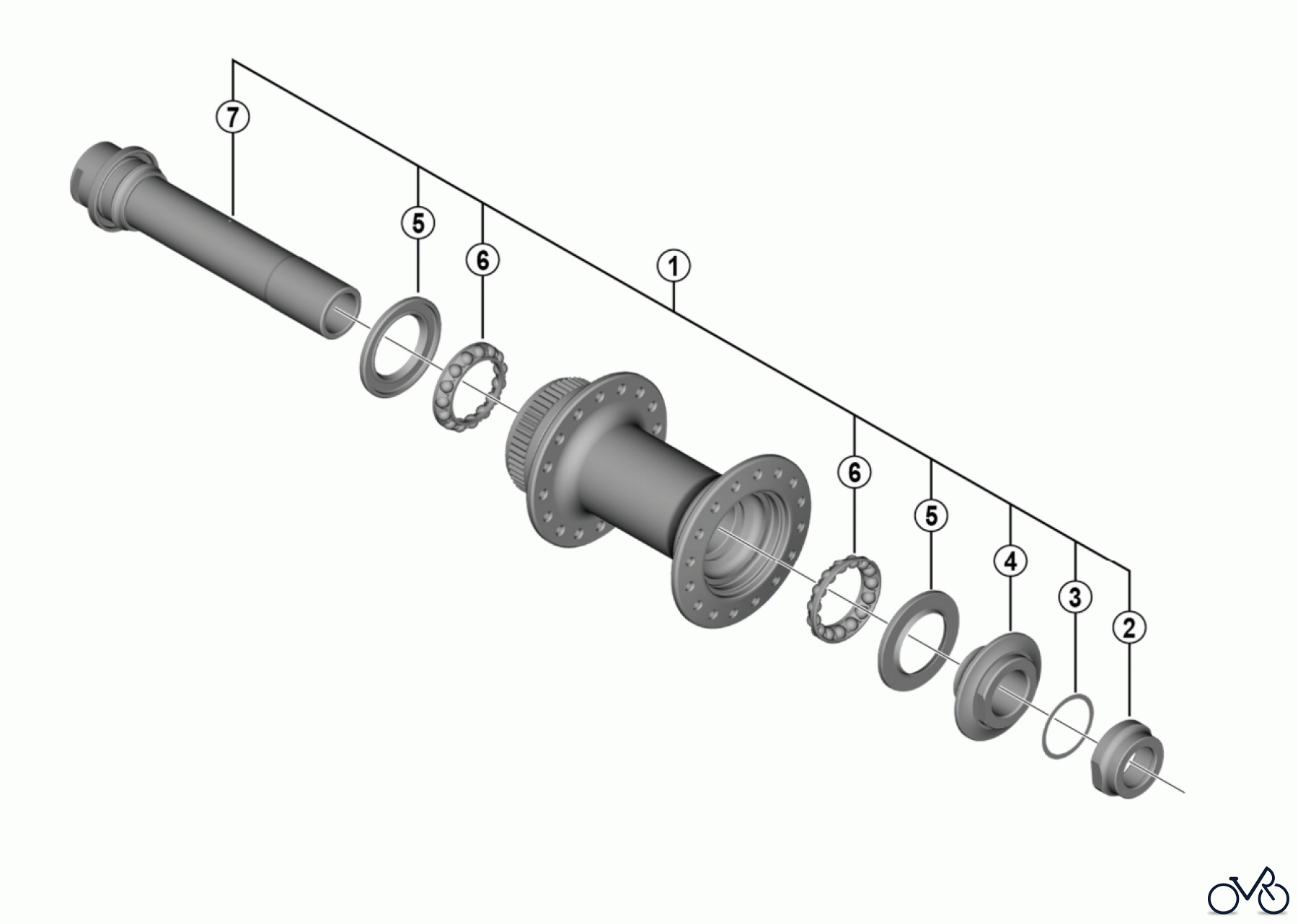

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-R7070 SHIMANO 105 Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2CG98010	Complete Hub Axle Y2CG98010
2	Y-2CG09000	Right Hand Lock Nut Y2CG09000
3	Y-38Z26000	Shim Ring Y38Z26000
4	Y-2CG98020	Right Hand Cone w/Dust Cap Y2CG98020
5	Y-26D10000	Seal Ring A Y26D10000
6	Y-0CJ98030	Ball Retainer (5/32" x 15) A Y0CJ98030
7	Y-2CG98030	Hub Axle Unit Y2CG98030
