Shimano CS-R7000 SHIMANO 105 Cassette Sprocket (11-speed)

CS-R7000 SHIMANO 105 Cassette Sprocket (11-speed) CS Cassette / Zahnkranz

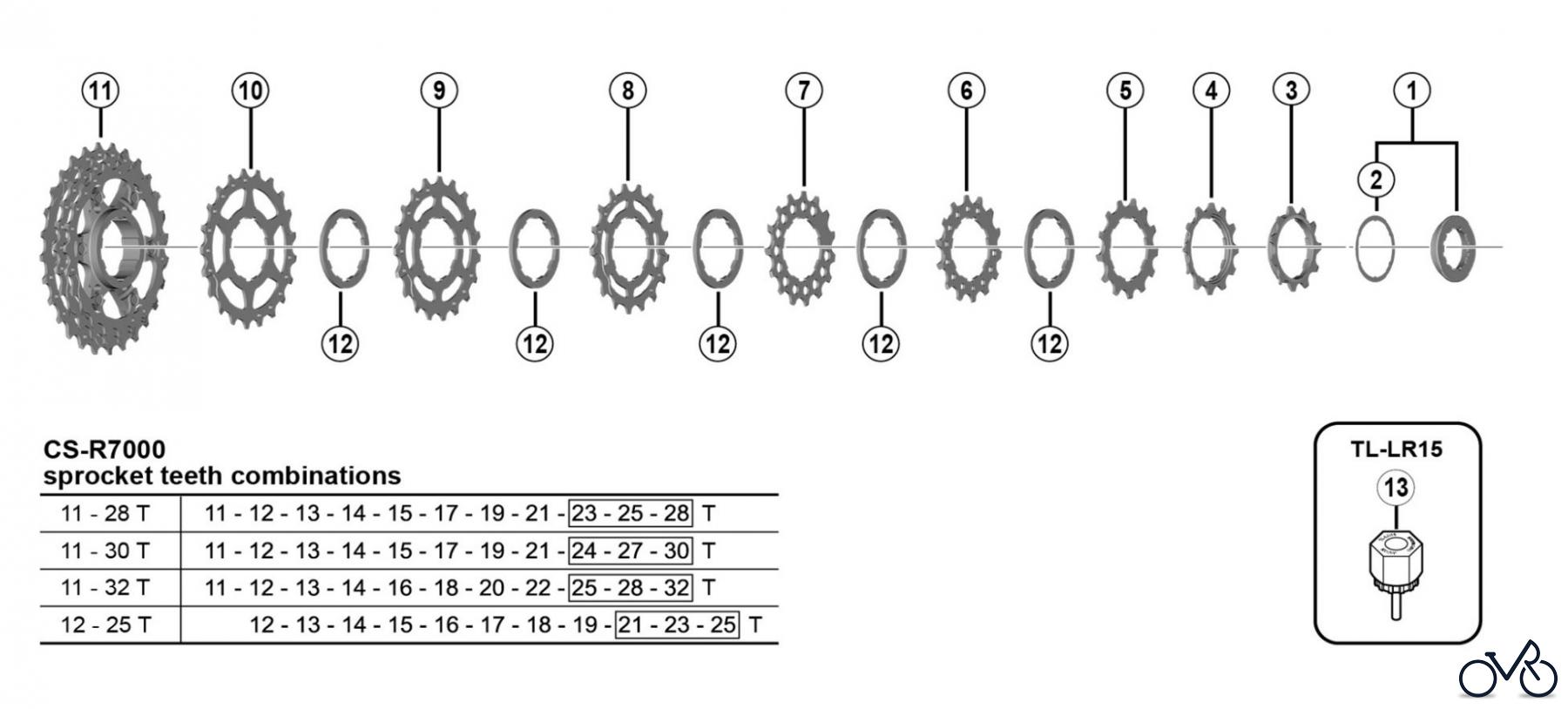

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-R7000 SHIMANO 105 Cassette Sprocket (11-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1WW98010	Lock Ring & Spacer A Y1WW98010
2	Y-10Z04000	Lock Ring Spacer A Y10Z04000
3	Y-1PJ11000	Sprocket Wheel 11T A (Built in spacer type) for 11-28T, 11-30T, 11-32T BBA Y1PJ11000
3	Y-1PJ12100	Sprocket Wheel 12T B (Built in spacer type) for 12-25T BBA Y1PJ12100
4	Y-1PJ12200	Sprocket Wheel 12T A (Built in spacer type) for 11-28T, 11-30T, 11-32T BBA Y1PJ12200
4	Y-1PJ13100	Sprocket Wheel 13T B (Built in spacer type) for 12-25T BBA Y1PJ13100
5	Y-1PJ13200	Sprocket Wheel 13T A for 11-28T, 11-30T, 11-32T BBA Y1PJ13200
5	Y-1PJ14000	Sprocket Wheel 14T A for 12-25T BBA Y1PJ14000
6	Y-1PJ14000	Sprocket Wheel 14T A for 11-28T, 11-30T, 11-32T BBA Y1PJ14000
6	Y-1PJ15000	Sprocket Wheel 15T A for 12-25T BBA Y1PJ15000
7	Y-1PJ15000	Sprocket Wheel 15T A for 11-28T, 11-30T BBA Y1PJ15000
7	Y-1PJ16100	Sprocket Wheel 16T B for 11-32T BBA Y1PJ16100
7	Y-1PJ16000	Sprocket Wheel 16T A for 12-25T BBA Y1PJ16000
8	Y-1PJ17100	Sprocket Wheel 17T B for 11-28T, 11-30T BBA Y1PJ17100
8	Y-1PJ18200	Sprocket Wheel 18T C for 11-32T BBA Y1PJ18200
8	Y-1PJ17200	Sprocket Wheel 17T C for 12-25T BBA Y1PJ17200
9	Y-1PJ19400	Sprocket Wheel 19T E for 11-28T, 11-30T A Y1PJ19400
9	Y-1PJ20100	Sprocket Wheel 20T B for 11-32T A Y1PJ20100
9	Y-1PJ18300	Sprocket Wheel 18T D for 12-25T A Y1PJ18300
10	Y-1PJ21300	Sprocket Wheel 21T D for 11-28T, 11-30T A Y1PJ21300
10	Y-1PJ22100	Sprocket Wheel 22T B for 11-32T A Y1PJ22100
10	Y-1PJ19500	Sprocket Wheel 19T F for 12-25T A Y1PJ19500
11	Y-1WW98020	Sprocket Unit (23-25-28T) for 11-28T BBA Y1WW98020
11	Y-1WW98030	Sprocket Unit (24-27-30T) for 11-30T B B Y1WW98030
11	Y-1WW98040	Sprocket Unit (25-28-32T) for 11-32T BBA Y1WW98040
11	Y-1WW98050	Sprocket Unit (21-23-25T) for 12-25T BBA Y1WW98050
12	Y-1PJ03000	Sprocket Spacer (t=2.18 mm) BBA Y1PJ03000
13	Y-12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
