Shimano FC-A073 SHIMANO TOURNEY Front Chainwheel

FC-A073 SHIMANO TOURNEY Front Chainwheel FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-A073 SHIMANO TOURNEY Front Chainwheel

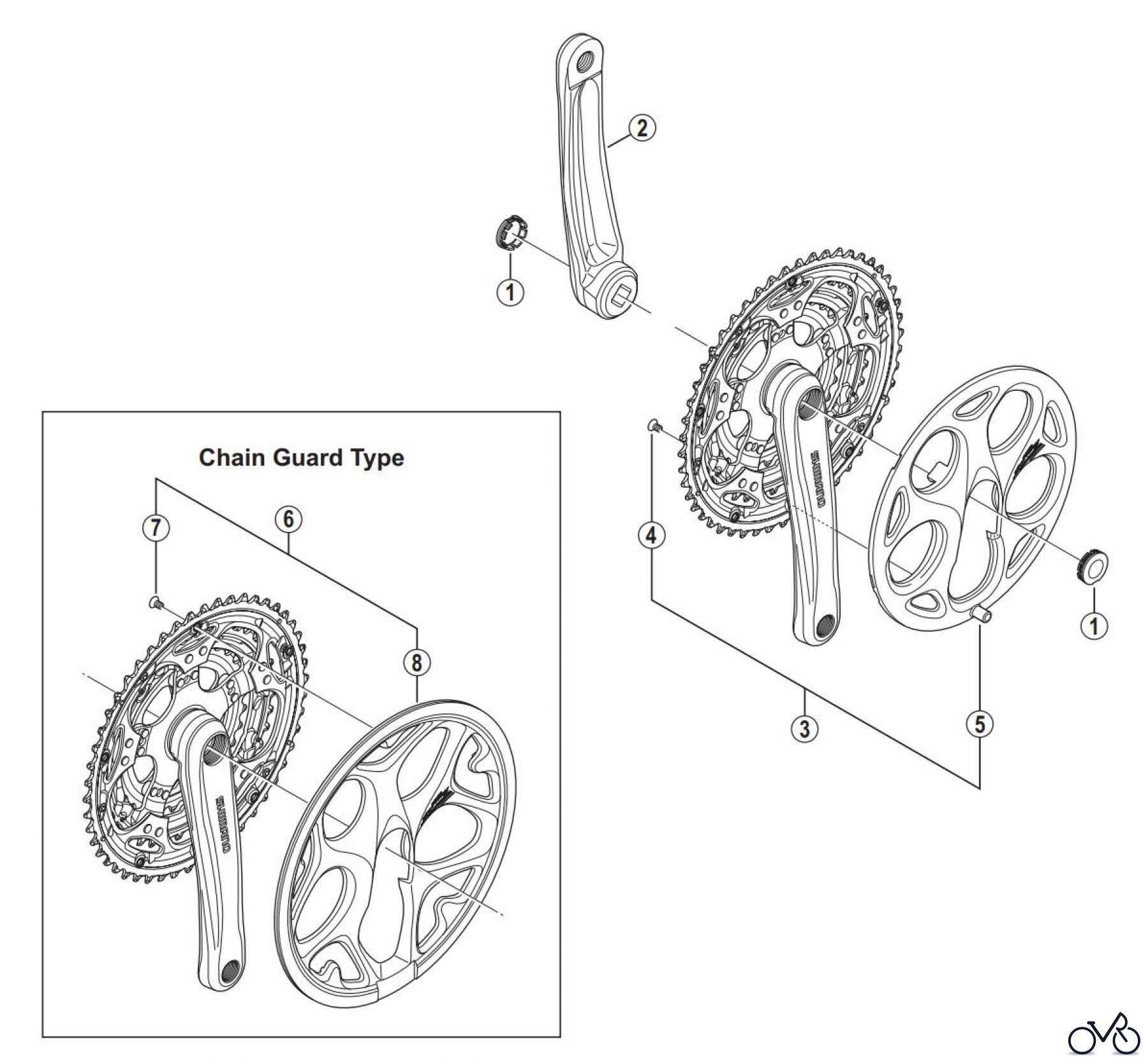

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-A073 SHIMANO TOURNEY Front Chainwheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-1LY13000 Crank Arm Cap A Y1LY13000
2 Y-1NM98010 Left Hand Crank Arm 165 mm A Y1NM98010
2 Y-1NM98020 Left Hand Crank Arm 170 mm A Y1NM98020
3 Y-1NY98010 Arm Cover & Fixing Screw Y1NY98010
4 Y-1KN14000 Arm Cover Fixing Screw A Y1KN14000
5 Y-1NY11000 Arm Cover Y1NY11000
6 Y-1NY98020 Chain Guard & Fixing Screws Y1NY98020
7 Y-1NM98050 Chain Guard Fixing Screw (5 pcs.) A Y1NM98050
8 Y-1NY15000 Chain Guard Y1NY15000
