Shimano FC-A070 SHIMANO TOURNEY Front Chainwhee

FC-A070 SHIMANO TOURNEY Front Chainwhee FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-A070 SHIMANO TOURNEY Front Chainwhee

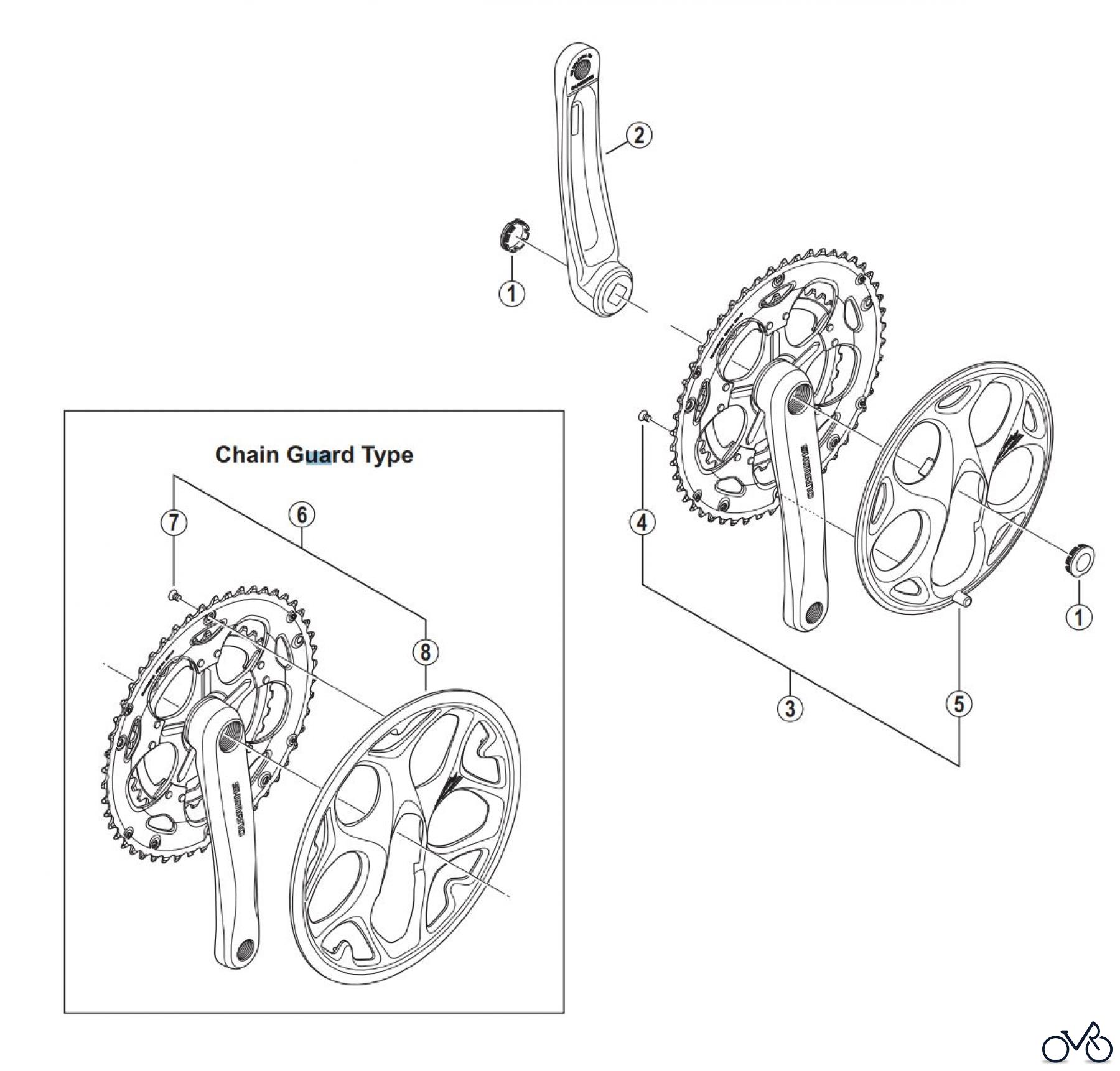

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-A070 SHIMANO TOURNEY Front Chainwhee. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-1LY13000 Crank Arm Cap Y1LY13000
2 Y-1NM98010 Left Hand Crank Arm 165 mm Y1NM98010
2 Y-1NM98020 Left Hand Crank Arm 170 mm Y1NM98020
3 Y-1NM98030 Arm Cover & Fixing Screw Y1NM98030
4 Y-1KN14000 Arm Cover Fixing Screw Y1KN14000
5 Y-1NM13000 Arm Cover Y1NM13000
6 Y-1NM98040 Chain Guard & Fixing Screws Y1NM98040
7 Y-1NM98050 Chain Guard Fixing Screw (5 pcs.) Y1NM98050
8 Y-1NM14000 Chain Guard Y1NM14000
