Shimano FC-R2030 CLARIS Crankset

FC-R2030 CLARIS Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

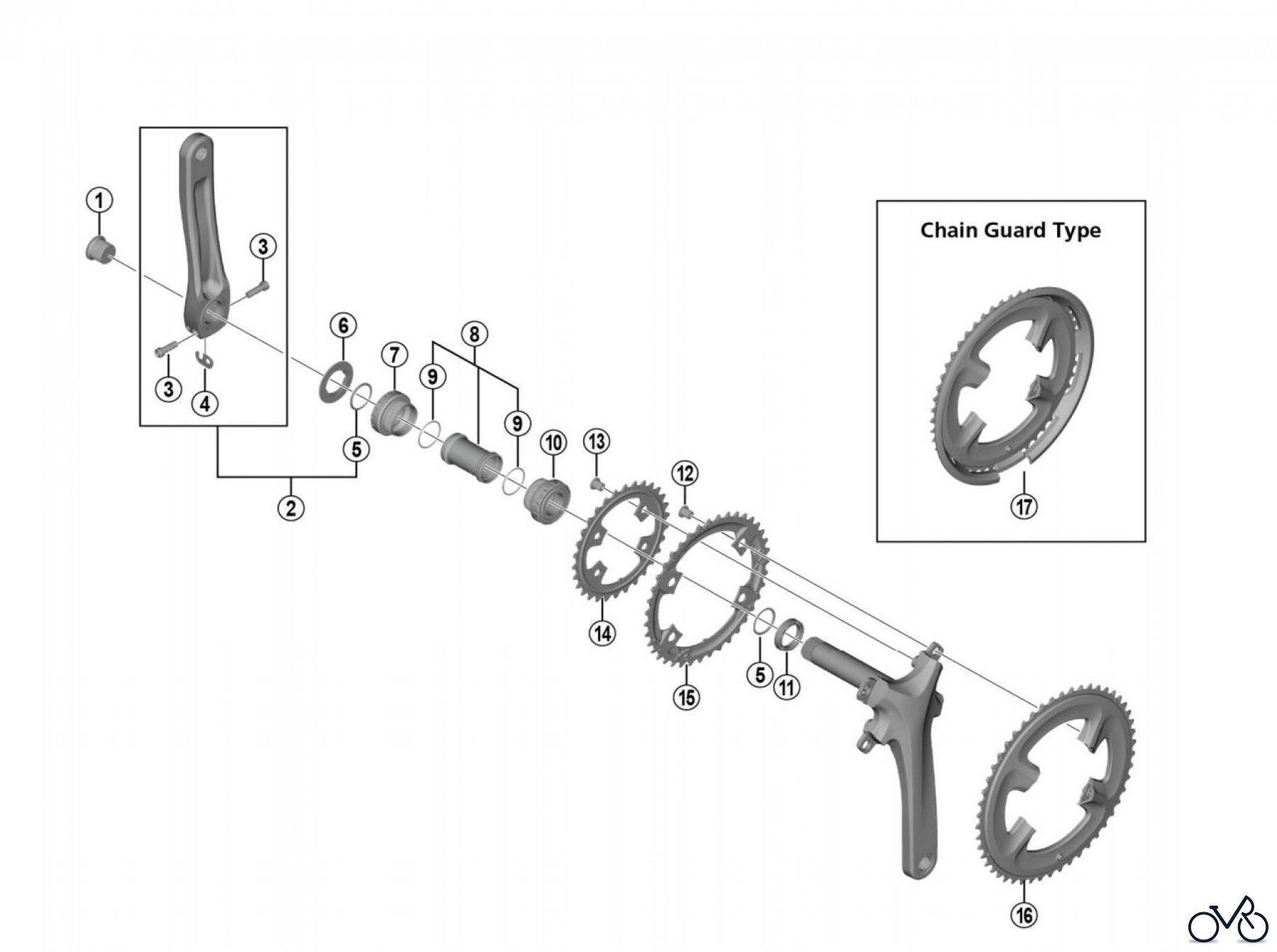

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-R2030 CLARIS Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1P417000	Crank Arm Fixing Bolt A Y1P417000
2	Y-1W698030	Left Hand Crank Arm Unit 165 mm B Y1W698030
2	Y-1W698040	Left Hand Crank Arm Unit 170 mm B Y1W698040
2	Y-1W698050	Left Hand Crank Arm Unit 175 mm B Y1W698050
3	Y-1GS00030	Clamp Bolt (M6 x 19) A Y1GS00030
4	Y-1GE98050	Plate A Y1GE98050
5	Y-1F316000	Ring A Y1F316000
6	Y-1MD14100	Spacer A Y1MD14100
7	Y-1RF98010	Left Hand Adapter (B.C.1.37" x 24T) English Thread (BB-RS500) A Y1RF98010
7	Y-1RF98020	Left Hand Adapter (M36 x 24T) Italian Thread (BB-RS500) A Y1RF98020
8	Y-1RF98050	Inner Cover & O-Ring A Y1RF98050
9	Y-1TF21000	O-Ring A Y1TF21000
10	Y-1RF98030	Right Hand Adapter (B.C.1.37" x 24T) English Thread (BB-RS500) A Y1RF98030
10	Y-1RF98040	Right Hand Adapter (M36 x 24T) Italian Thread (BB-RS500) A Y1RF98040
11	Y-1F913000	Spacer (6.5 mm) A Y1F913000
12	Y-1VD98030	Gear Fixing Bolt (M8 x 7 / 1 Unit = 4 pcs.) A Y1VD98030
13	Y-1LV98060	Inner Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) Y1LV98060
14	Y-1W730000	Chainring 30T-MR (30T-NC) B Y1W730000
15	Y-1W798010	Chainring 39T-NC Y1W798010
16	Y-1W798020	Chainring 50T-NC Y1W798020
17	Y-1W798030	Chainring 50T-NC for Chain Guard Y1W798030
