Shimano FC-R460 Front Chainwheel

FC-R460 Front Chainwheel FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

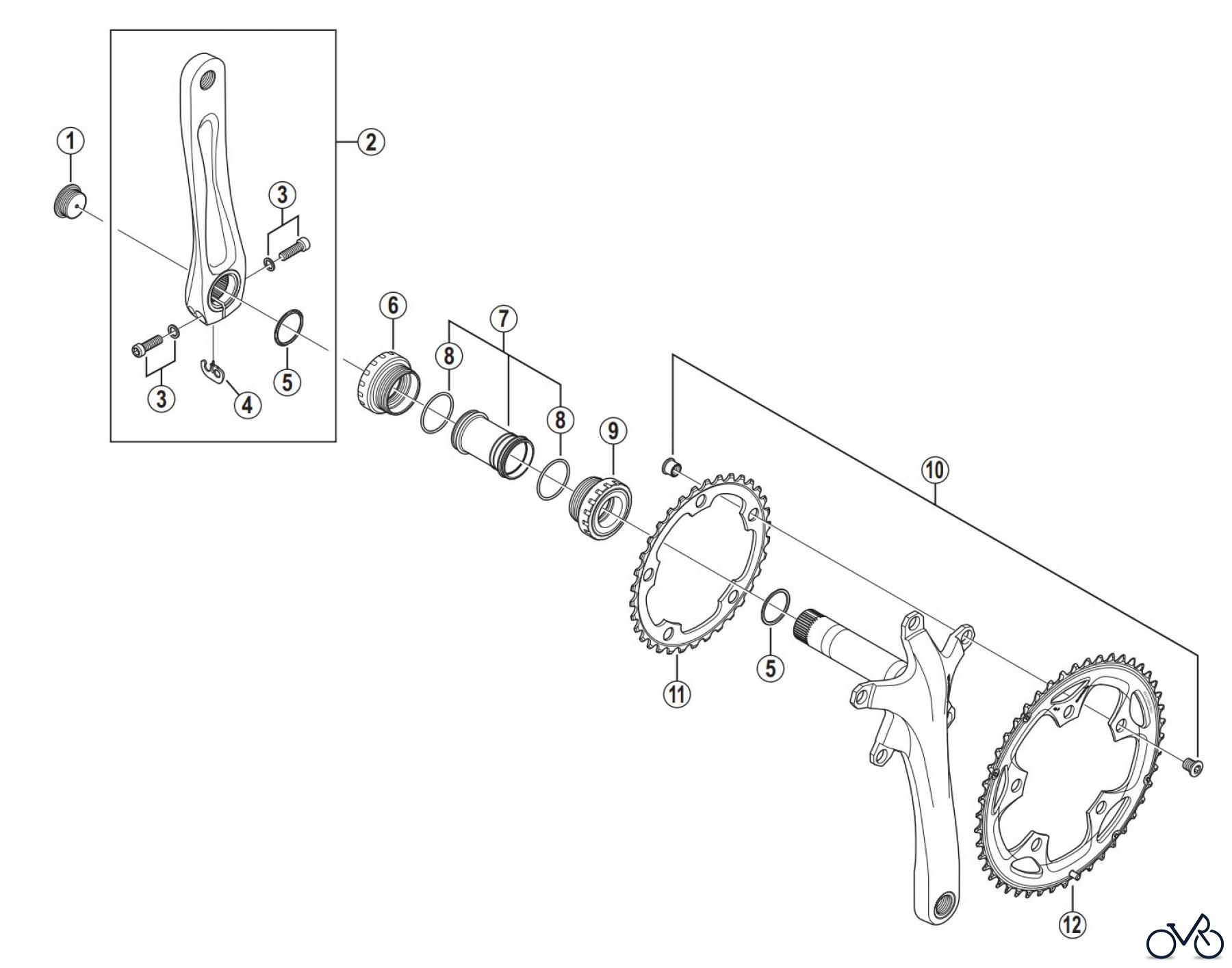

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-R460 Front Chainwheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1KS13000	Crank Arm Fixing Bolt A A Y1KS13000
2	Y-1NP98010	Left Hand Crank Arm 165 mm B B Y1NP98010
2	Y-1NP98020	Left Hand Crank Arm 170 mm B B Y1NP98020
2	Y-1NP98030	Left Hand Crank Arm 175 mm B B Y1NP98030
3	Y-1KS98030	Clamp Bolt (M6 x 19) & Washer A A Y1KS98030
4	Y-1GE98050	Plate A A Y1GE98050
5	Y-1F316000	Ring A A Y1F316000
6	Y-1MH98050	Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB4600) A A Y1MH98050
7	Y-1MH98070	Inner Cover & O-Ring A A Y1MH98070
8	Y-1TF21000	O-Ring A A Y1TF21000
9	Y-1MH98080	Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB4600) A A Y1MH98080
10	Y-1NB98040	Gear Fixing Bolt (M8 x 8.5) & Nut (5 sets) A A Y1NB98040
11	Y-1MT34010	Chainring 34T (Black) B Y1MT34010
12	Y-1NP98040	Chainring 46T-F (Black) Y1NP98040
12	Y-1NP98050	Chainring 48T-F (Black) Y1NP98050
