Shimano FC-CX50 CYCLOCROSS Front Chainwheel

FC-CX50 CYCLOCROSS Front Chainwheel FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-CX50 CYCLOCROSS Front Chainwheel

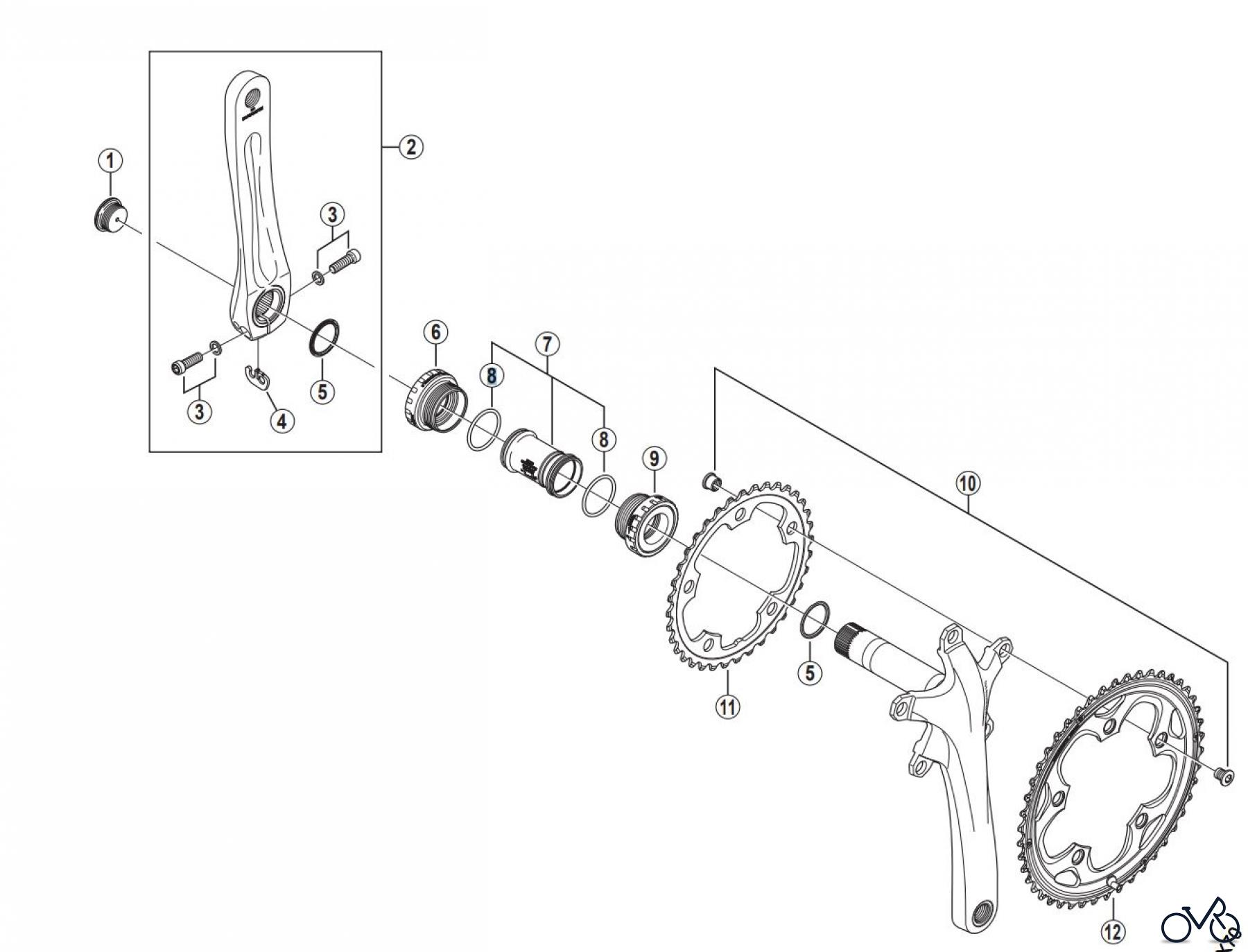

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-CX50 CYCLOCROSS Front Chainwheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-1KS13000 Crank Arm Fixing Bolt A A Y1KS13000
2 Y-1MS98010 Left Hand Crank Arm 170 mm (Silver) B B Y1MS98010
2 Y-1MS98020 Left Hand Crank Arm 170 mm (Black) B B Y1MS98020
2 Y-1MS98030 Left Hand Crank Arm 175 mm (Silver) B B Y1MS98030
2 Y-1MS98040 Left Hand Crank Arm 175 mm (Black) B B Y1MS98040
3 Y-1KS98030 Clamp Bolt (M6 x 19) & Washer A A Y1KS98030
4 Shimano Plate A A Y-1GE98050 Plate A A Y1GE98050
5 Shimano Ring A A Y-1F316000 Ring A A Y1F316000
6 Y-1MH98050 Left Hand Adapter (B.C.1.37" x 24T) English Thread B A Y1MH98050
6 Y-1MH98060 Left Hand Adapter (M36 x 24T) Italian Thread B A Y1MH98060
7 Y-1MH98070 Inner Cover & O-Ring B A Y1MH98070
8 Shimano O-Ring A A Y-1TF21000 O-Ring A A Y1TF21000
9 Y-1MH98080 Right Hand Adapter (B.C.1.37" x 24T) English Thread B A Y1MH98080
9 Y-1MH98090 Right Hand Adapter (M36 x 24T) Italian Thread B A Y1MH98090
10 Y-1HD98020 Gear Fixing Bolt (M8 x 8.5) & Nut (5 sets) B B Y1HD98020
11 Y-1MS36000 Chainring 36T (Silver) B Y1MS36000
11 Y-1MS36010 Chainring 36T (Black) B Y1MS36010
12 Y-1MS98050 Chainring 46T-G (Silver) B Y1MS98050
12 Y-1MS98060 Chainring 46T-G (Black) Y1MS98060
