Shimano FC-R9100 DURA-ACE Crankset

FC-R9100 DURA-ACE Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-R9100 DURA-ACE Crankset

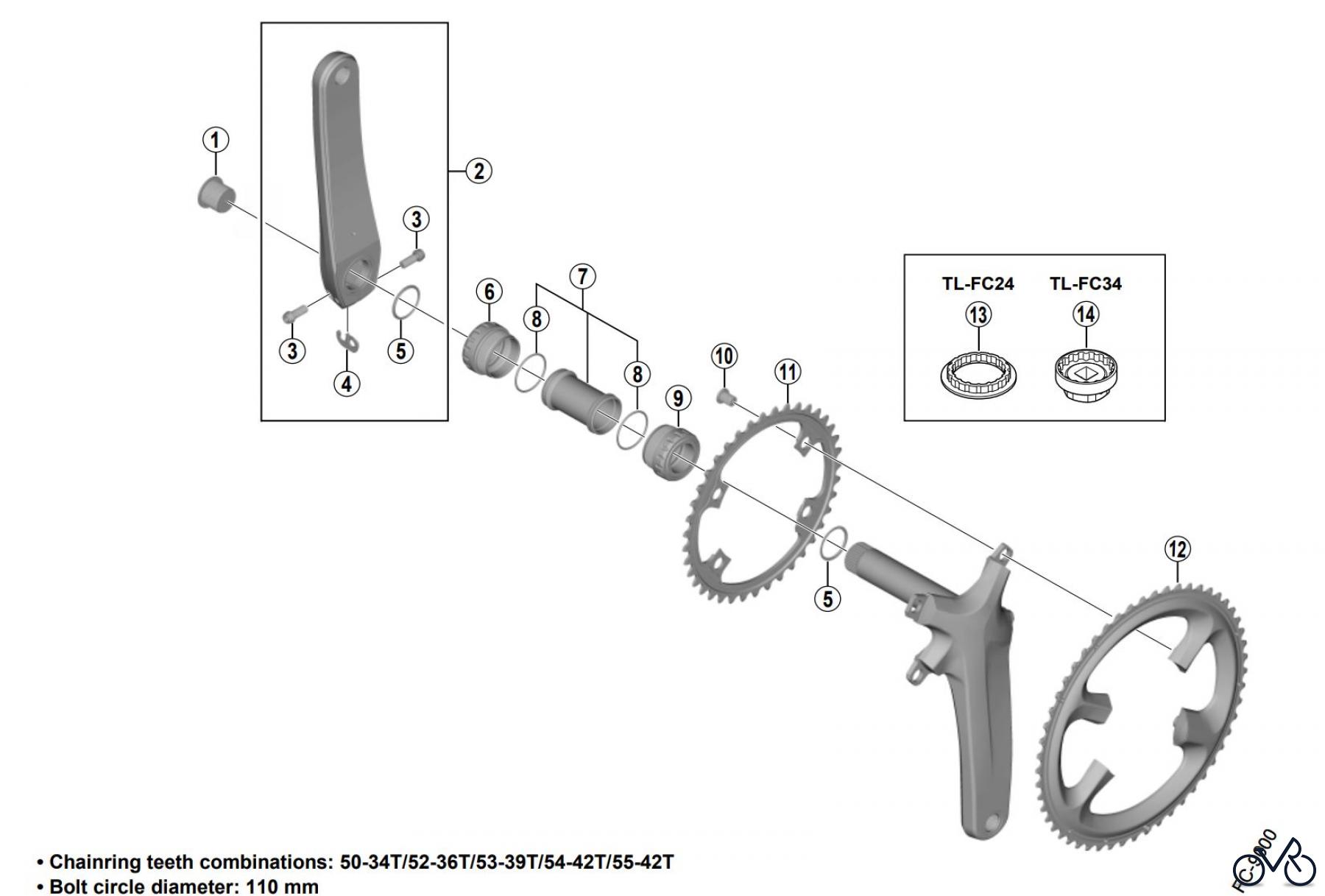

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-R9100 DURA-ACE Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-1N218000 Crank Arm Fixing Bolt Y1N218000
2 Y-1VP98060 Left Hand Crank Arm Unit 165 mm Y1VP98060
2 Y-1VP98070 Left Hand Crank Arm Unit 167.5 mm Y1VP98070
2 Y-1VP98080 Left Hand Crank Arm Unit 170 mm Y1VP98080
2 Y-1VP98090 Left Hand Crank Arm Unit 172.5 mm Y1VP98090
2 Y-1VP98100 Left Hand Crank Arm Unit 175 mm Y1VP98100
2 Y-1VP98110 Left Hand Crank Arm Unit 177.5 mm Y1VP98110
2 Y-1VP98120 Left Hand Crank Arm Unit 180 mm Y1VP98120
3 Y-1E512000 Clamp Bolt (M6 x 15) Y1E512000
4 Shimano Plate Y-1GE98050 Plate Y1GE98050
5 Shimano Ring Y-1F316000 Ring Y1F316000
6 Y-1VR98010 Left Hand Adapter (B.C.1.37" x 24T) English Thread (BB-R9100) Y1VR98010
6 Y-1VR98020 Left Hand Adapter (M36 x 24T) Italian Thread (BB-R9100) Y1VR98020
7 Y-1KY98130 Inner Cover & O-Ring Y1KY98130
8 Shimano O-Ring Y-1TF21000 O-Ring Y1TF21000
9 Y-1VR98030 Right Hand Adapter (B.C.1.37" x 24T) English Thread (BB-R9100) Y1VR98030
9 Y-1VR98040 Right Hand Adapter (M36 x 24T) Italian Thread (BB-R9100) Y1VR98040
10 Y-1H598160 Gear Fixing Bolt (M8 x 10.1 / 1 Unit = 4 pcs.) Y1H598160
11 Y-1VP34000 Chainring 34T-MS for 50-34T Y1VP34000
11 Y-1VP36000 Chainring 36T-MT for 52-36T Y1VP36000
11 Y-1VP39000 Chainring 39T-MW for 53-39T Y1VP39000
11 Y-1VP42000 Chainring 42T-MX for 54-42T/55-42T Y1VP42000
12 Y-1VP98010 Chainring 50T-MS for 50-34T Y1VP98010
12 Y-1VP98020 Chainring 52T-MT for 52-36T Y1VP98020
12 Y-1VP98030 Chainring 53T-MW for 53-39T Y1VP98030
12 Y-1VP98040 Chainring 54T-MX for 54-42T Y1VP98040
12 Y-1VP98050 Chainring 55T-MX for 55-42T Y1VP98050
13 Y-13009240 TL-FC24 Adapter Installation Tool Y13009240
14 Y-13009250 TL-FC34 Adapter Installation Tool Y13009250
