Shimano FD-R3030 SORA Front Derailleur

FD-R3030 SORA Front Derailleur FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-R3030 SORA Front Derailleur

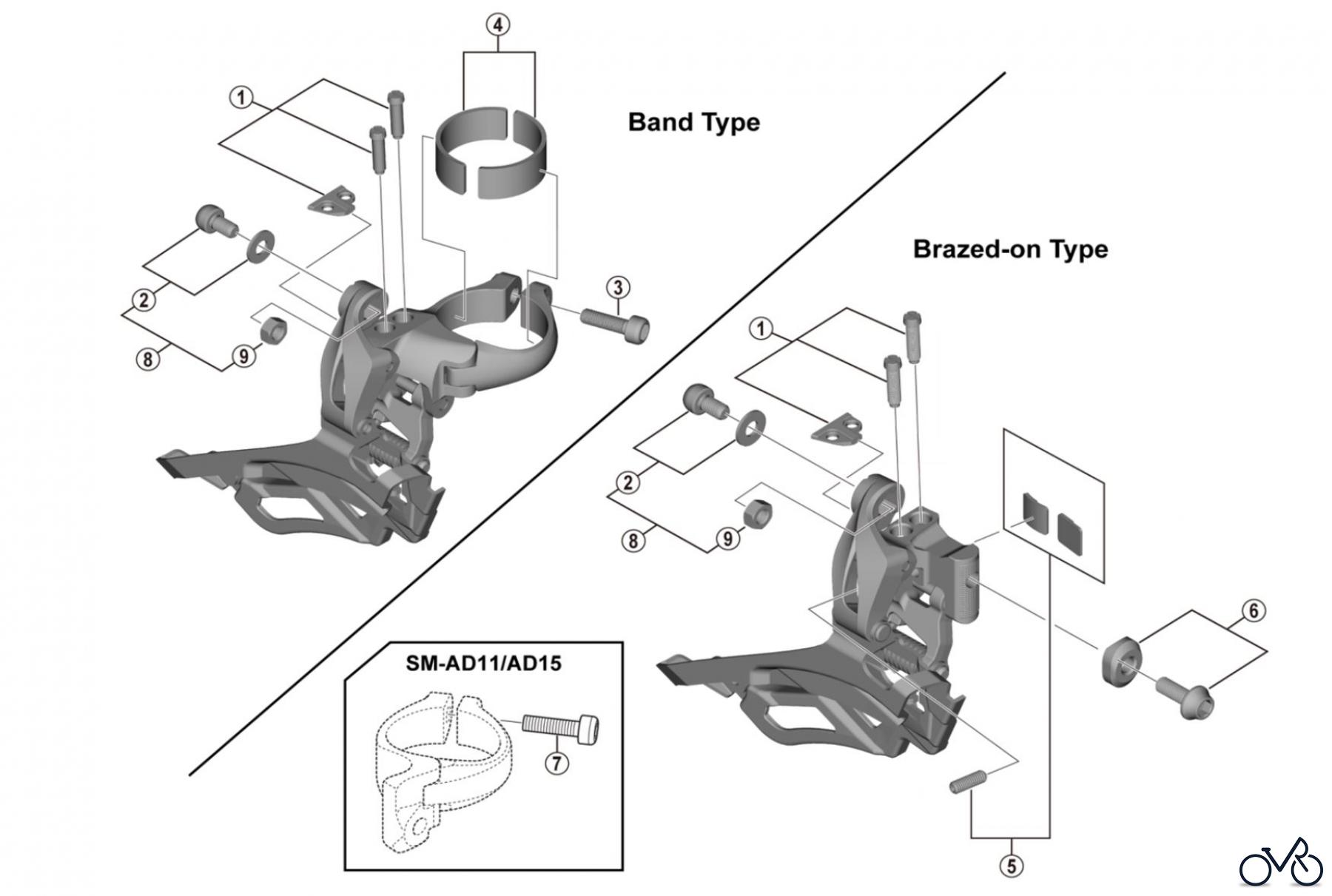

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-R3030 SORA Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5YY98010 Stroke Adjust Screws (M4 x 15.3) & Plate A Y5YY98010
2 Y-5NP98020 Cable Fixing Bolt (M5 x 8.9) & Washer B Y5NP98020
3 Y-59L19300 Clamp Screw (M5 x 16.5) A A Y59L19300
4 Y-5YY98030 Clamp Band Adapter Unit for S-size / Diameter 28.6 mm A Y5YY98030
4 Y-5YY98040 Clamp Band Adapter Unit for M-size / Diameter 31.8 mm A Y5YY98040
5 Y-5YY98050 Support Screw & Plate (Round Type/Flat Type) A Y5YY98050
6 Y-5NG98040 Clamp Screw (M5 x 15.2) & Radius Washer Y5NG98040
7 Y-59L19100 Clamp Screw (M5 x 17.5) Y59L19100
8 Y-5YZ98010 Cable Fixing Bolt Unit (M5 x 8.9) Y5YZ98010
9 Y-6FM20000 Cable Fixing Nut Y6FM20000
