Shimano FD-CX70 SHIMANO Cyclocross Front Derailleur

FD-CX70 SHIMANO Cyclocross Front Derailleur FD Front Derailleur - Umwerfer

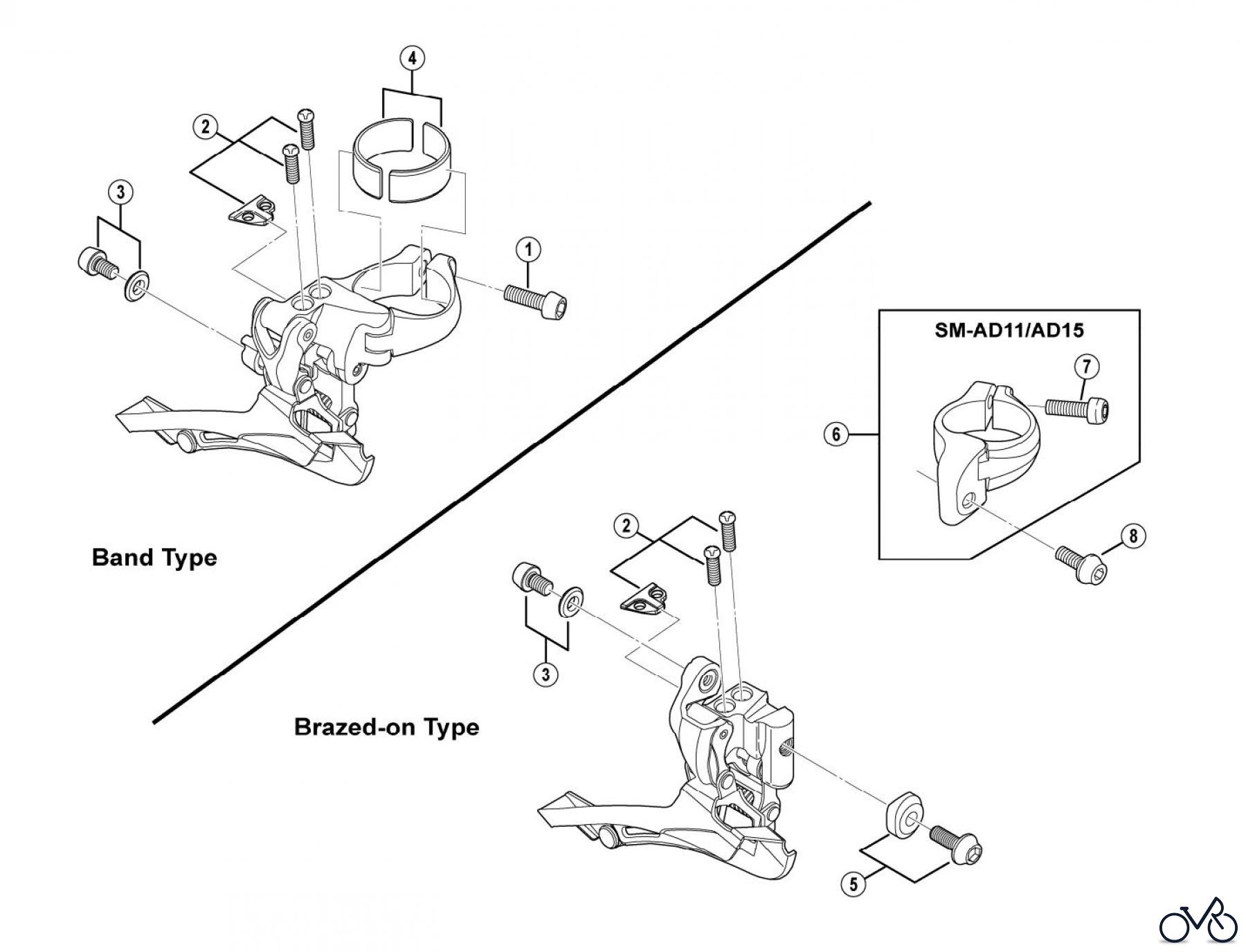

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-CX70 SHIMANO Cyclocross Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5A407020	Clamp Bolt (M5 x 15) A A Y5A407020
2	Y-5MR98010	Stroke Adjust Screws (M4 x 13) & Plate A A Y5MR98010
3	Y-5LW98020	Cable Fixing Plate & Bolt (M5 x 8) A A Y5LW98020
4	Y-5JD98020	Clamp Band Adapter (2 pcs.) for S-size / ?28.6 mm (1-1/8”) A A Y5JD98020
5	Y-5JD98030	Clamp Bolt (M5 x 13.5) & Radius Washer for Brazed-on Type A A Y5JD98030
6	Y-5JD98040	SM-AD11 Clamp Band Unit Ø31.8 mm (1-1/4”) for Brazed-on Type A A Y5JD98040
6	Y-5JD98050	SM-AD15 Clamp Band Unit Ø34.9 mm (1-3/8”) for Brazed-on Type A A Y5JD98050
7	Y-59L19100	Clamp Bolt (M5 x 17.5) for SM-AD11 / AD15 A A Y59L19100
8	Y-5C252000	Clamp Bolt (M5 x 13.5) for SM-AD11 / AD15 Y5C252000
