Shimano FD-5700 (-3022A) SHIMANO 105 Front Derailleur

FD-5700 (-3022A) SHIMANO 105 Front Derailleur FD Front Derailleur - Umwerfer

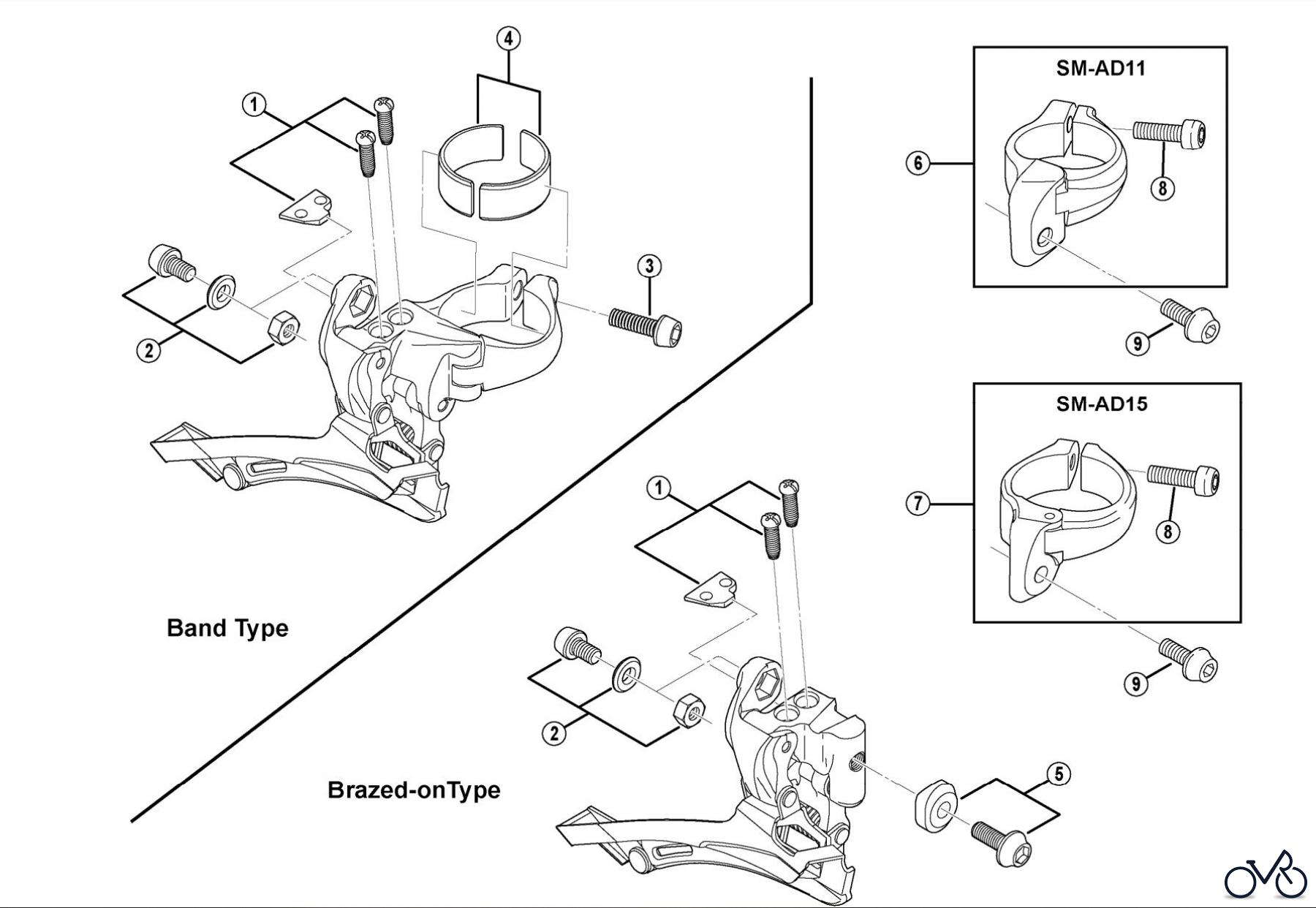

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-5700 (-3022A) SHIMANO 105 Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5MR98010	Stroke Adjust Screws (M4 x 13) & Plate Y5MR98010
2	Y-5MR98020	Cable Fixing Bolt Unit (M5 x 8) Y5MR98020
3	Y-5A407020	Clamp Bolt (M5 x 15) A Y5A407020
4	Y-5JD98020	Clamp Band Adapter (2 pcs.) for S-size / ?28.6 mm (1-1/8”) A A Y5JD98020
5	Y-5JD98030	Clamp Bolt (M5 x 13.5) & Radius Washer for Brazed-on Type A Y5JD98030
6	Y-5JD98040	SM-AD11 Clamp Band Unit ?31.8 mm (1-1/4”) for Brazed-on Type A Y5JD98040
7	Y-5JD98050	SM-AD15 Clamp Band Unit ?34.9 mm (1-3/8”) for Brazed-on Type A Y5JD98050
8	Y-59L19100	Clamp Bolt (M5 x 17.5) for SM-AD11 / AD15 A Y59L19100
9	Y-5C252000	Clamp Bolt (M5 x 13.5) for SM-AD11 / AD15 Y5C252000
