Shimano FD-R9100 (-4059G) DURA-ACE Front Derailleur (2x11-speed)

FD-R9100 (-4059G) DURA-ACE Front Derailleur (2x11-speed) FD Front Derailleur - Umwerfer

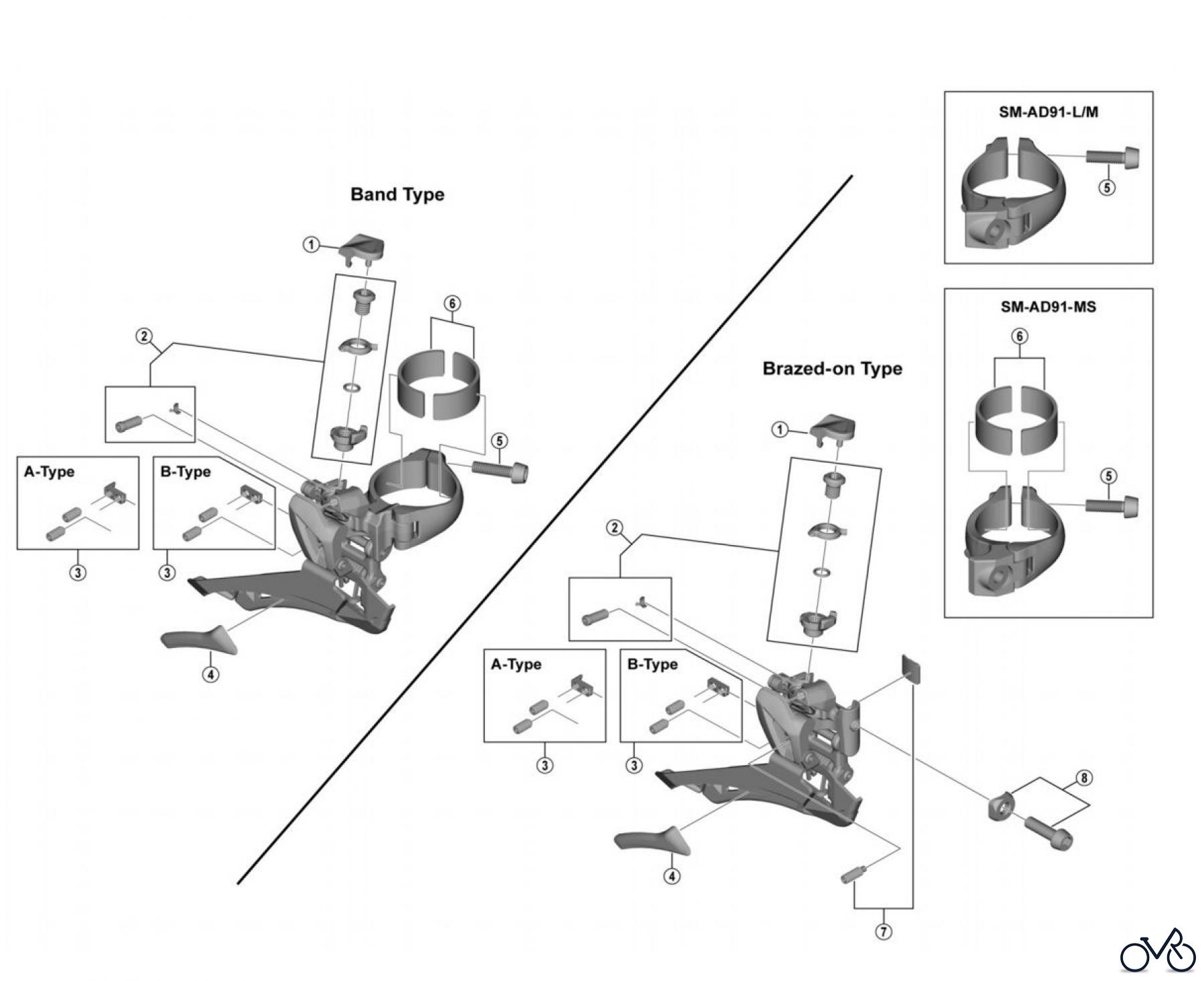

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-R9100 (-4059G) DURA-ACE Front Derailleur (2x11-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5ZS22000	Link Cover Y5ZS22000
2	Y-5ZS98060	Cable Fixing Screw Unit & Cable Adjust Screw Unit (M4 x 9.5) Y5ZS98060
3	Y-5ZS98030	Adjust Screws & Plate (A-Type) Y5ZS98030
3	Y-5ZS98070	Adjust Screws & Plate (B-Type) Y5ZS98070
4	Y-5ZS15000	Skid Plate Y5ZS15000
5	Y-5ZS39000	Clamp Screw (M5 x 17) Y5ZS39000
6	Y-5P198030	Clamp Band Adapter Unit for S-size / Diameter 28.6 mm Y5P198030
7	Y-2BA98020	Support Screw & Plate Y2BA98020
8	Y-5ZS98050	Clamp Screw (M5 x 15) & Radius Washer Y5ZS98050
