Shimano RD-R7000-GS SHIMANO 105 Schaltwerk

RD-R7000-GS SHIMANO 105 Schaltwerk RD Rear Derailleur - Schaltwerk

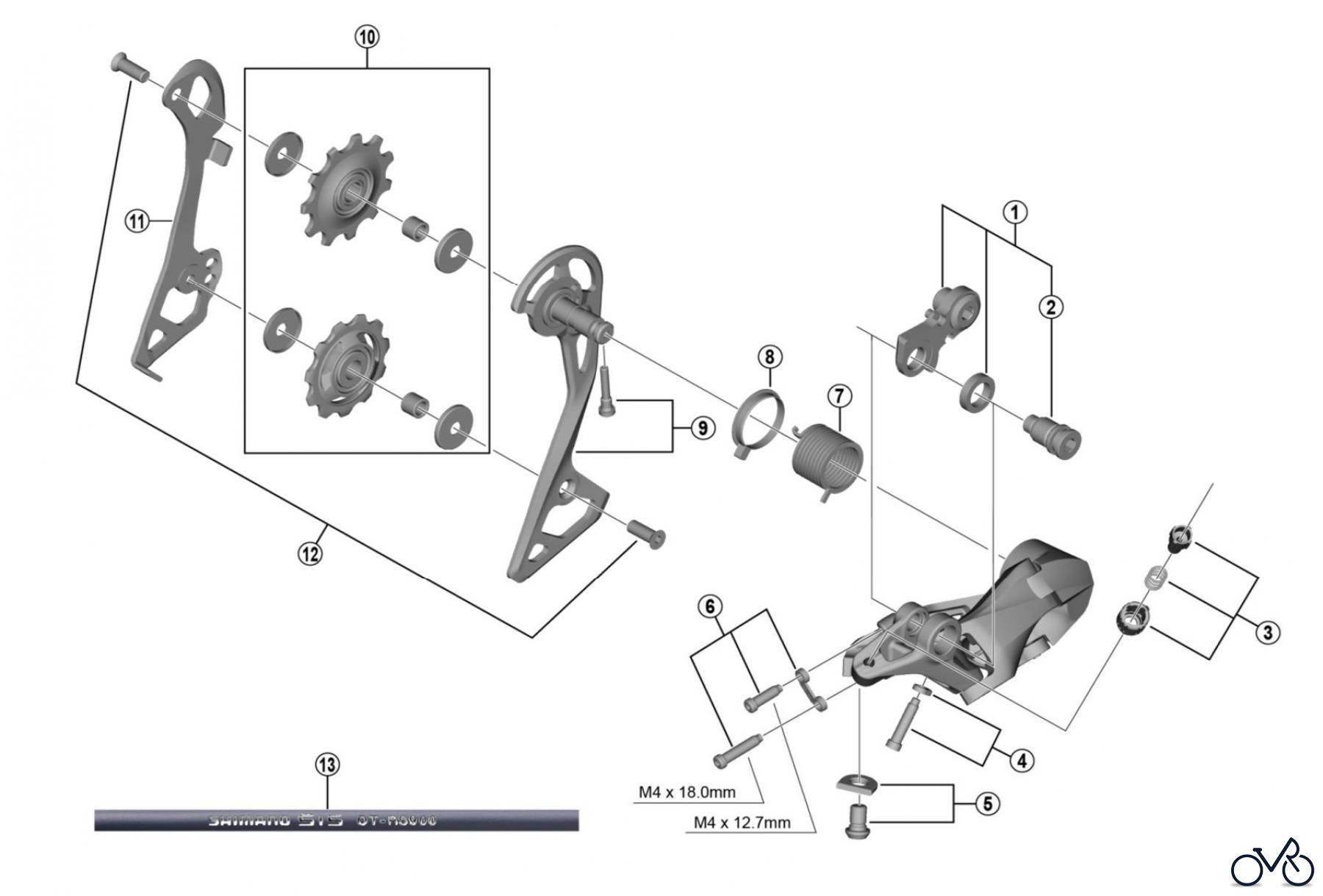

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-R7000-GS SHIMANO 105 Schaltwerk. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3F398020	Bracket Axle Unit (for normal type) B Y3F398020
2	Y-3F358000	B-Axle 2 (for Direct Mount type) Y3F358000
3	Y-3F398030	Cable Adjusting Bolt Unit B Y3F398030
4	Y-3E998040	End Adjusting Bolt (M4 x 18) & Plate A Y3E998040
5	Y-3F398040	Cable Fixing Bolt & Plate A Y3F398040
6	Y-3E998060	Stroke Adjusting Bolts & Plate A Y3E998060
7	Y-5PV17000	P-Tension Spring A Y5PV17000
8	Y-5PV24000	P-Seal Ring A Y5PV24000
9	Y-3F398060	Outer Plate & Fixing Bolt Y3F398060
10	Y-3F398010	Tention & Guide Pulley Set B Y3F398010
11	Y-3F316000	Inner Plate B Y3F316000
12	Y-5V598140	Pulley Bolt (2 pcs.) A Y5V598140
13	Y-0BM98011	OT-RS900 (Black) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) A Y0BM98011
13	Y-0BM98021	OT-RS900 (White) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) A Y0BM98021
13	Y-0BM98031	OT-RS900 (Red) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) A Y0BM98031
13	Y-0BM98041	OT-RS900 (High-tech gray) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) Y0BM98041
