Shimano RD-R7000-SS SHIMANO 105 Rear Derailleur

RD-R7000-SS SHIMANO 105 Rear Derailleur RD Rear Derailleur - Schaltwerk

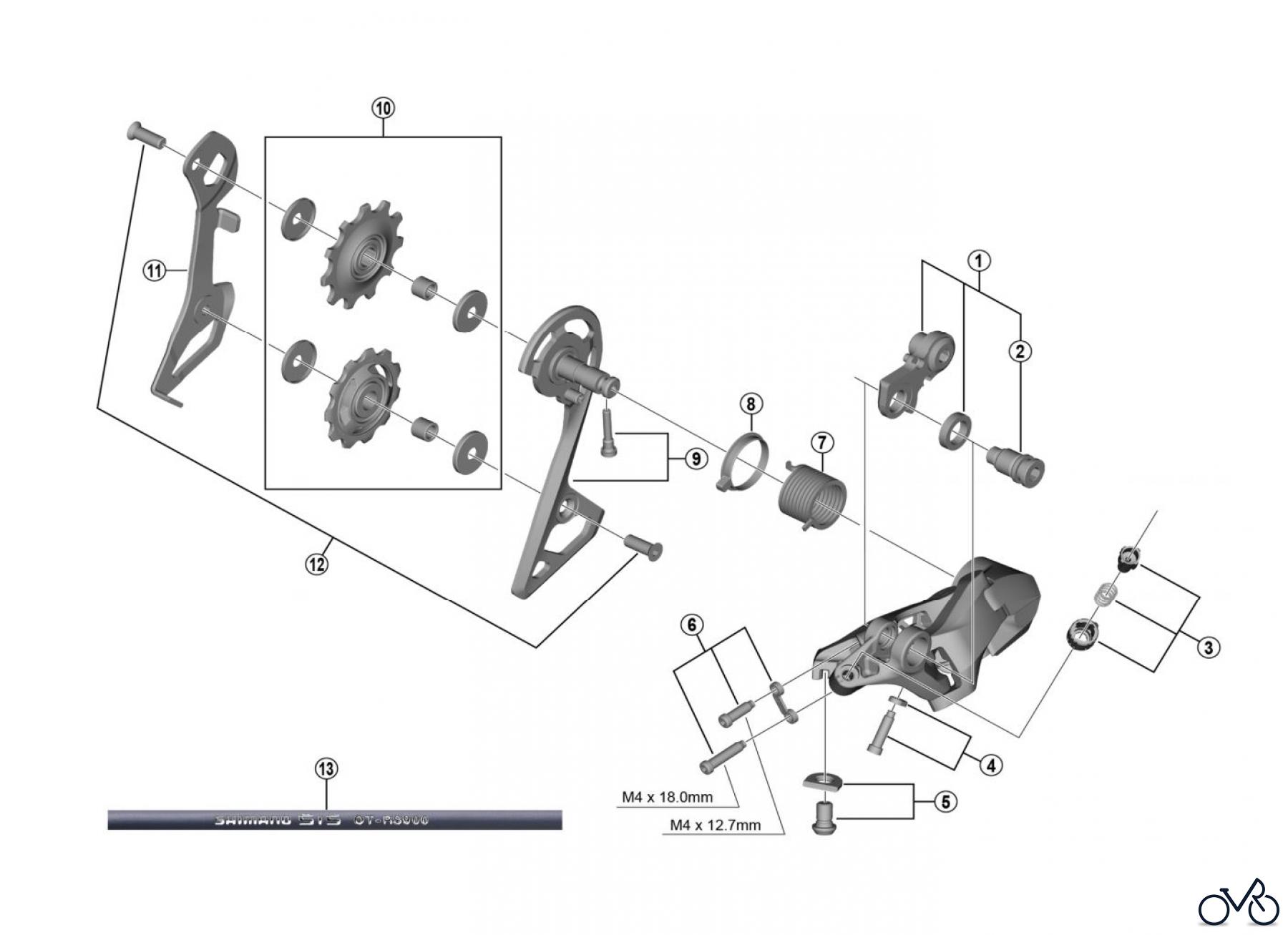

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-R7000-SS SHIMANO 105 Rear Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3F398020	Bracket Axle Unit (for normal type) B Y3F398020
2	Y-3F358000	B-Axle 2 (for Direct Mount type) Y3F358000
3	Y-3F398030	Cable Adjusting Bolt Unit B Y3F398030
4	Y-5ZR98040	End Adjusting Bolt (M4 x 15) & Plate B Y5ZR98040
5	Y-3F398040	Cable Fixing Bolt & Plate Y3F398040
6	Y-3E998060	Stroke Adjusting Bolts & Plate A Y3E998060
7	Y-5PV17000	P-Tension Spring A Y5PV17000
8	Y-5PV24000	P-Seal Ring A Y5PV24000
9	Y-3F398050	Outer Plate & Fixing Bolt Y3F398050
10	Y-3F398010	Tention & Guide Pulley Set B Y3F398010
11	Y-3F306000	Inner Plate B Y3F306000
12	Y-5V598140	Pulley Bolt (2 pcs.) A Y5V598140
13	Y-0BM98011	OT-RS900 (Black) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) A Y0BM98011
13	Y-0BM98021	OT-RS900 (White) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) A Y0BM98021
13	Y-0BM98031	OT-RS900 (Red) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) A Y0BM98031
13	Y-0BM98041	OT-RS900 (High-tech gray) 240 mm x 10 pcs. (with Sealed Outer Cap & Outer Cap with Long Tongue) Y0BM98041
