Shimano BR-RS405 Scheibenbremse

BR-RS405 Scheibenbremse BR Brake - Bremse

Shimano BR Brake - Bremse BR-RS405 Scheibenbremse

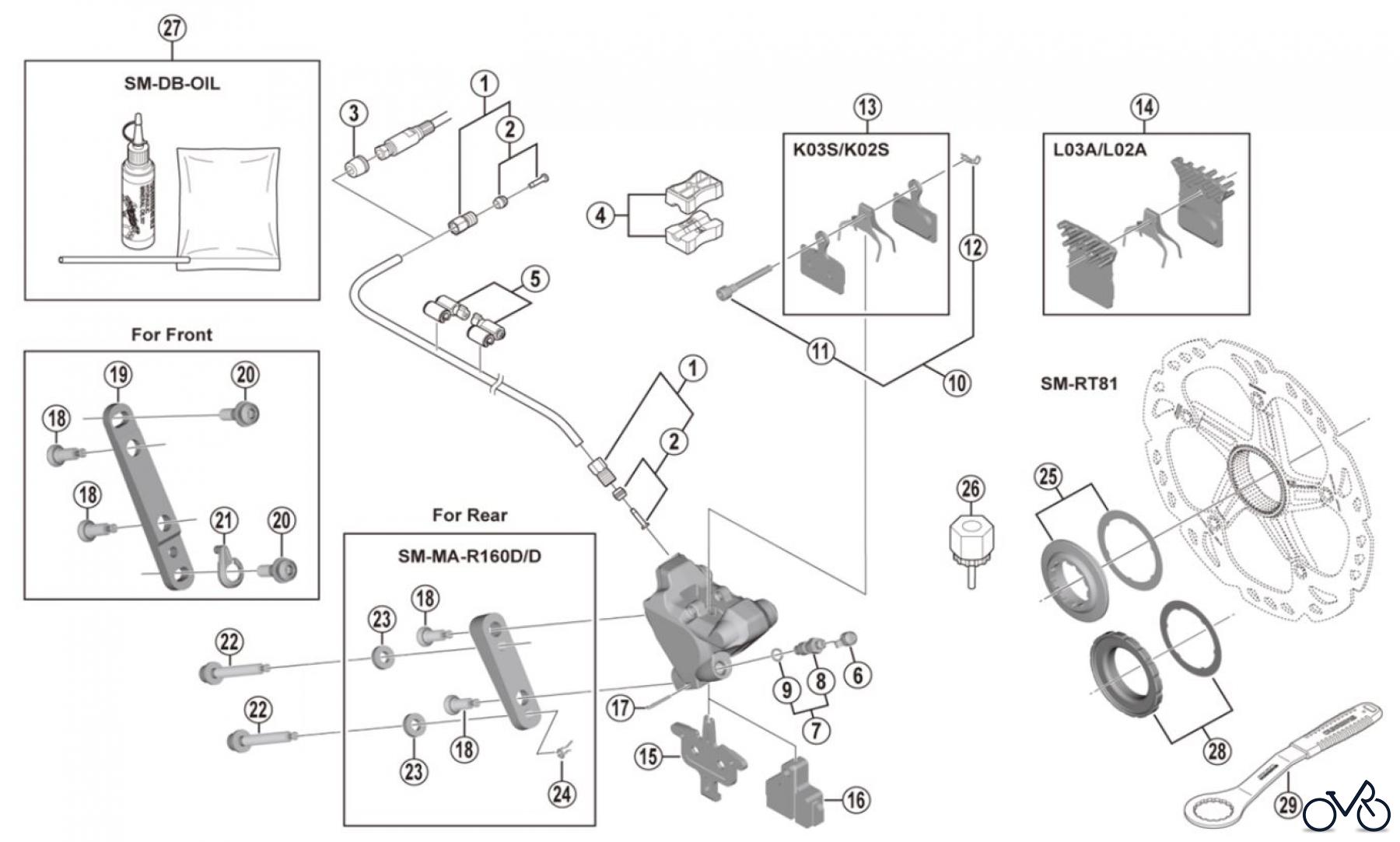

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-RS405 Scheibenbremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-8AL98020 Connecting Bolt Unit A Y8AL98020
2 Y-8H298040 Olive & Connecter Insert A Y8H298040
3 Y-8H802000 Hose Cover for easy hose joint system, not used with easy hose joint direct system A Y8H802000
4 Shimano TL-BH61 Shimano original tool (2 pcs.) A Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) A Y8H198030
5 Y-83098040 SM-HANG Hose Supporter A & B A Y83098040
6 Shimano Bleed Nipple Cap A Y-8B214000 Bleed Nipple Cap A Y8B214000
7 Shimano Bleed Nipple & Seal Ring A Y-8CL98050 Bleed Nipple & Seal Ring A Y8CL98050
8 Y-8CL24000 Bleed Nipple A Y8CL24000
9 Shimano O-Ring for Bleed Nipple A Y-8B511001 O-Ring for Bleed Nipple A Y8B511001
10 Y-8PY98010 Pad Axle & Snap Retainer A Y8PY98010
11 Y-8EB12000 Pad Axle A Y8EB12000
12 Shimano Snap Retainer A Y-8J716000 Snap Retainer A Y8J716000
13 Y-8Y898010 Resin Pad (K03S) & Spring Y8Y898010
13 Y-8N398010 Resin Pad (K02S) & Spring A Y8N398010
14 Y-8PU98040 Resin Pad (L03A) w/Fin & Spring Y8PU98040
14 Y-8N398030 Resin Pad (L02A) w/Fin & Spring A Y8N398030
15 Shimano Pad Spacer A Y-8N218000 Pad Spacer A Y8N218000
16 Shimano Bleeding Spacer A Y-8N219000 Bleeding Spacer A Y8N219000
17 Shimano Bolt Fixing Pin A Y-8N207000 Bolt Fixing Pin A Y8N207000
18 Shimano Caliper Fixing Bolt B A Y-8N206000 Caliper Fixing Bolt B A Y8N206000
19 Y-8N230000 Front Caliper Mount Bracket A Y8N230000
20 Shimano Caliper Fixing Bolt A A Y-8N204000 Caliper Fixing Bolt A A Y8N204000
21 Shimano Snap Ring A Y-8N205000 Snap Ring A Y8N205000
22 Shimano Caliper Fixing Bolt C for 10 mm Rear mount thickness A Y-8N208000 Caliper Fixing Bolt C for 10 mm Rear mount thickness A Y8N208000
22 Y-8N208050 Caliper Fixing Bolt C for 15 mm Rear mount thickness A Y8N208050
22 Shimano Caliper Fixing Bolt C for 20 mm Rear mount thickness A Y-8N208010 Caliper Fixing Bolt C for 20 mm Rear mount thickness A Y8N208010
22 Shimano Caliper Fixing Bolt C for 25 mm Rear mount thickness A Y-8N208020 Caliper Fixing Bolt C for 25 mm Rear mount thickness A Y8N208020
22 Shimano Caliper Fixing Bolt C for 30 mm Rear mount thickness A Y-8N208030 Caliper Fixing Bolt C for 30 mm Rear mount thickness A Y8N208030
22 Shimano Caliper Fixing Bolt C for 35 mm Rear mount thickness A Y-8N208040 Caliper Fixing Bolt C for 35 mm Rear mount thickness A Y8N208040
23 Shimano Washer for R160 Adapter A Y-8NU02000 Washer for R160 Adapter A Y8NU02000
24 Shimano Snap Retainer A Y-8NU03000 Snap Retainer A Y8NU03000
25 Shimano Lock Ring & Washer A Y-8K198010 Lock Ring & Washer A Y8K198010
26 Shimano TL-LR15 Lock Ring Removal Tool A Y-12009230 TL-LR15 Lock Ring Removal Tool A Y12009230
27 Y-83998010 Mineral Oil Bleed Kit (50 ml) A Y83998010
28 Shimano Lock Ring & Washer (Externally serrated type) A Y-26L98030 Lock Ring & Washer (Externally serrated type) A Y26L98030
29 Shimano TL-FC36 Lock Ring Removal Tool Y-13098000 TL-FC36 Lock Ring Removal Tool Y13098000
