Shimano BR-R7070 SHIMANO 105 Scheibenbremse

BR-R7070 SHIMANO 105 Scheibenbremse BR Brake - Bremse

Shimano BR Brake - Bremse BR-R7070 SHIMANO 105 Scheibenbremse

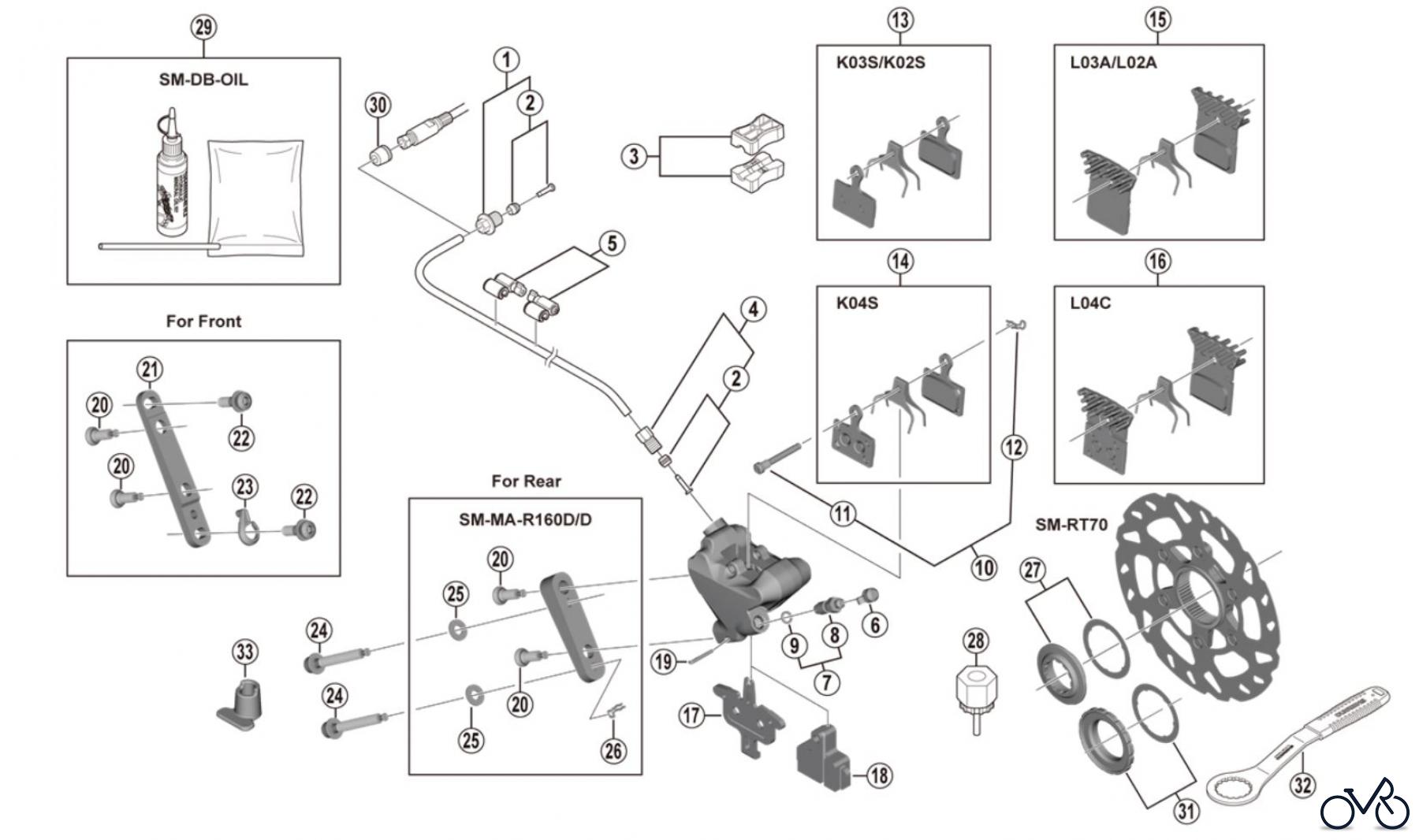

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-R7070 SHIMANO 105 Scheibenbremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Flange Flare Nut Unit (M9/Black) Y-8RD98010 Flange Flare Nut Unit (M9/Black) Y8RD98010
2 Shimano Olive & Connecter Insert Y-8JA98020 Olive & Connecter Insert Y8JA98020
3 Shimano TL-BH61 Shimano original tool (2 pcs.) Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) Y8H198030
4 Shimano Flare Nut Unit (M8/Black) Y-8JA98010 Flare Nut Unit (M8/Black) Y8JA98010
5 Y-83098040 SM-HANG Hose Supporter A & B Y83098040
6 Shimano Bleed Nipple Cap Y-8B214000 Bleed Nipple Cap Y8B214000
7 Shimano Bleed Nipple & Seal Ring Y-8CL98050 Bleed Nipple & Seal Ring Y8CL98050
8 Shimano Bleed Nipple Y-8CL24200 Bleed Nipple Y8CL24200
9 Shimano O-Ring for Bleed Nipple Y-8B511001 O-Ring for Bleed Nipple Y8B511001
10 Y-8J798060 Pad Axle & Snap Retainer Y8J798060
11 Y-8J710000 Pad Axle Y8J710000
12 Shimano Snap Retainer Y-8J716000 Snap Retainer Y8J716000
13 Y-8Y898010 Resin Pad (K03S) & Spring Y8Y898010
13 Y-8N398010 Resin Pad (K02S) & Spring Y8N398010
14 Y-8N398020 Metal Pad (K04S) & Spring Y8N398020
15 Y-8PU98040 Resin Pad (L03A) w/Fin & Spring Y8PU98040
15 Y-8N398030 Resin Pad (L02A) w/Fin & Spring Y8N398030
16 Y-8N398040 Metal Pad (L04C) w/Fin & Spring Y8N398040
17 Shimano Pad Spacer Y-8N218000 Pad Spacer Y8N218000
18 Shimano Bleeding Spacer Y-8N219000 Bleeding Spacer Y8N219000
19 Shimano Screw Fixing Pin Y-8N207000 Screw Fixing Pin Y8N207000
20 Shimano Caliper Fixing Screw B Y-8N206000 Caliper Fixing Screw B Y8N206000
21 Y-8N230000 Front Caliper Mount Bracket Y8N230000
22 Shimano Caliper Fixing Screw A Y-8N204000 Caliper Fixing Screw A Y8N204000
23 Shimano Snap Ring Y-8N205000 Snap Ring Y8N205000
24 Shimano Caliper Fixing Screw C for 10 mm Rear mount thickness Y-8N208000 Caliper Fixing Screw C for 10 mm Rear mount thickness Y8N208000
24 Y-8N208050 Caliper Fixing Screw C for 15 mm Rear mount thickness Y8N208050
24 Shimano Caliper Fixing Screw C for 20 mm Rear mount thickness Y-8N208010 Caliper Fixing Screw C for 20 mm Rear mount thickness Y8N208010
24 Shimano Caliper Fixing Screw C for 25 mm Rear mount thickness Y-8N208020 Caliper Fixing Screw C for 25 mm Rear mount thickness Y8N208020
24 Shimano Caliper Fixing Screw C for 30 mm Rear mount thickness Y-8N208030 Caliper Fixing Screw C for 30 mm Rear mount thickness Y8N208030
24 Shimano Caliper Fixing Screw C for 35 mm Rear mount thickness Y-8N208040 Caliper Fixing Screw C for 35 mm Rear mount thickness Y8N208040
25 Shimano Washer for R160 Adapter Y-8NU02000 Washer for R160 Adapter Y8NU02000
26 Shimano Snap Retainer Y-8NU03000 Snap Retainer Y8NU03000
27 Y-8P898010 Lock Ring & Washer Y8P898010
28 Shimano TL-LR15 Lock Ring Removal Tool Y-12009230 TL-LR15 Lock Ring Removal Tool Y12009230
29 Y-83998010 Mineral Oil Bleed Kit (50 ml) Y83998010
30 Y-8H802000 Hose Cover for easy hose joint system, not used with easy hose joint direct system Y8H802000
31 Shimano Lock Ring & Washer (External spline type) Y-26L98030 Lock Ring & Washer (External spline type) Y26L98030
32 Shimano TL-FC36 Lock Ring Removal Tool Y-13098000 TL-FC36 Lock Ring Removal Tool Y13098000
33 Shimano Screw Length SelectorY-8N221000 Screw Length Selector Y8N221000
