Shimano BR-R3000 SORA Caliper Brake

BR-R3000 SORA Caliper Brake BR Brake - Bremse

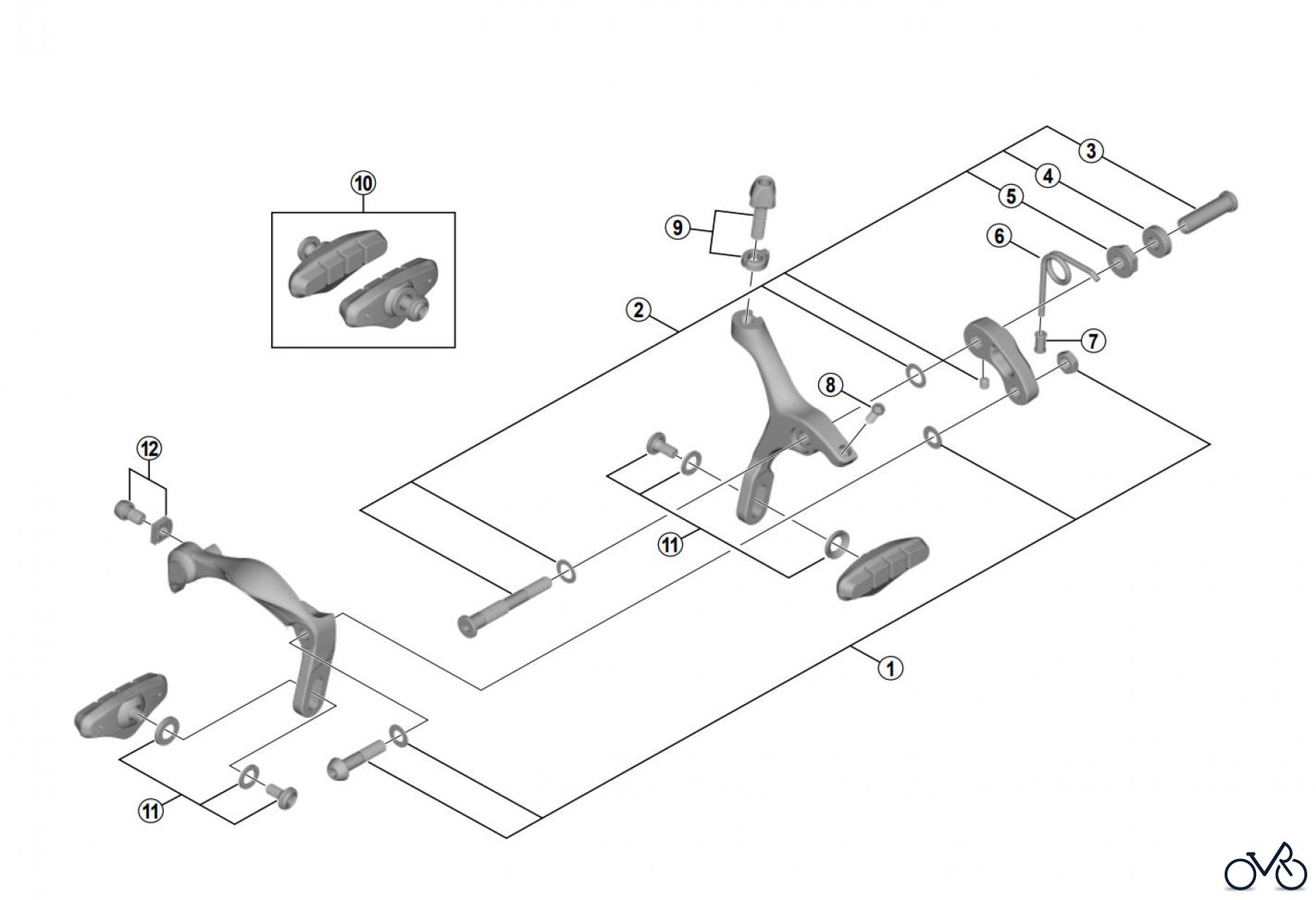

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-R3000 SORA Caliper Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8JY98010	Arm Bolt Unit (M6 x 26.5) A A Y8JY98010
2	Y-8P798010	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 10.5 mm} Y8P798010
2	Y-8P798020	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 12.5 mm} Y8P798020
2	Y-8P798030	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 18.0 mm} Y8P798030
2	Y-8P798040	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 27.0 mm} Y8P798040
2	Y-8P798050	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 32.0 mm} Y8P798050
2	Y-8P798060	Rear Pivot Bolt Assembly {Pivot Bolt: 35.7 mm (1-13/32") / Pivot Nut: 10.5 mm} Y8P798060
3	Y-85575110	Pivot Nut (10.5 mm) for Front/Rear Y85575110
3	Y-85575020	Pivot Nut (12.5 mm) for Front Y85575020
3	Y-85574010	Pivot Nut (18.0 mm) for Front Y85574010
3	Y-8A023000	Pivot Nut (27.0 mm) for Front Y8A023000
3	Y-8A023300	Pivot Nut (32.0 mm) for Front Y8A023300
4	Y-8MG11000	Washer D6 A A Y8MG11000
5	Y-8E604000	Lock Nut A A Y8E604000
6	Y-8MG27000	Arm Spring for Front Y8MG27000
6	Y-8MG27010	Arm Spring for Rear Y8MG27010
7	Y-8BY08000	Spring Bush Y8BY08000
8	Y-8JY10000	EC-Screw (M4 x 10.2) Y8JY10000
9	Y-8JY98090	Cable Adjusting Bolt & Clip Y8JY98090
10	Y-8MG98090	R50T5 Brake Shoe Set (5 pairs) Y8MG98090
10	Y-8L998010	R50T4 Brake Shoe Set (5 pairs) Y8L998010
11	Y-8JY98080	Shoe Fixing Bolt Unit (M5 x 11.2) Y8JY98080
12	Y-8BT98010	Cable Fixing Bolt (M6 x 9) & Plate Y8BT98010
