Shimano ST-RS405 Dual Control Lever (For Disc Brake)

ST-RS405 Dual Control Lever (For Disc Brake) ST Rapidfire- Schaltbremshebel

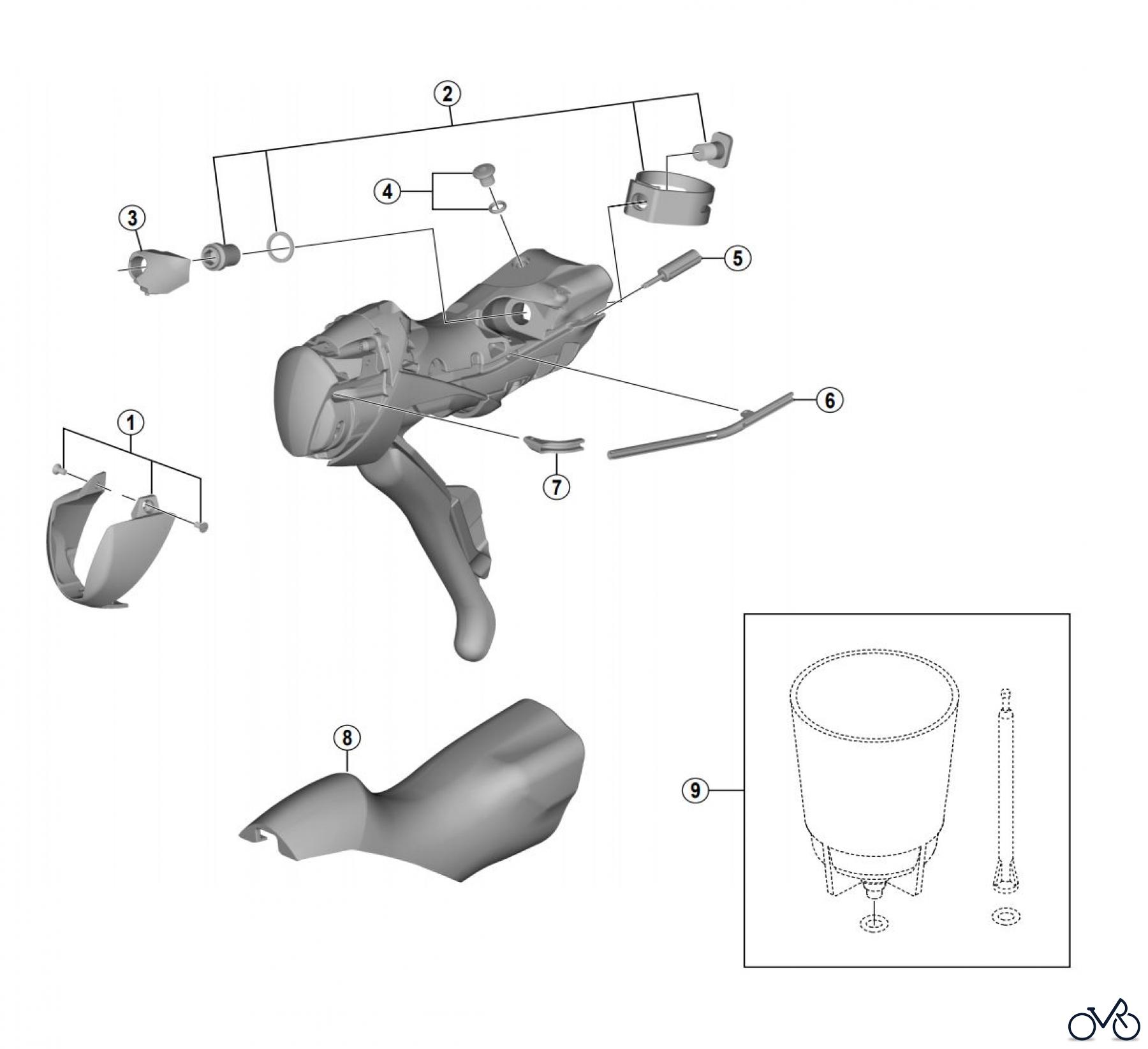

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-RS405 Dual Control Lever (For Disc Brake). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0B598010	R.H. Name Plate R (1 pc.) & Fixing Screws (1 Unit = 2 pcs.) Y0B598010
1	Y-0B498010	L.H. Name Plate L (1 pc.) & Fixing Screws (1 Unit = 2 pcs.) Y0B498010
2	Y-07X98050	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y07X98050
3	Y-03N72000	R.H. Bracket Cover Block R Y03N72000
3	Y-03M72000	L.H. Bracket Cover Block L Y03M72000
4	Y-8V398010	Bleed Screw & O-Ring Y8V398010
5	Y-63Z27000	ST Nose Cap Y63Z27000
6	Y-03N74000	R.H. SL Cable Guide B Y03N74000
6	Y-03M74000	L.H. SL Cable Guide B Y03M74000
7	Y-03N75000	R.H. SL Cable Guide A Y03N75000
7	Y-03M75000	L.H. SL Cable Guide A Y03M75000
8	Y-03N98020	Bracket Covers (Pair) Y03N98020
9	E-SMDISCBP	Funnel & Oil Stopper ESMDISCBP
