Shimano ST-A070 SHIMANO TOURNEY Dual Control Lever

ST-A070 SHIMANO TOURNEY Dual Control Lever ST Rapidfire- Schaltbremshebel

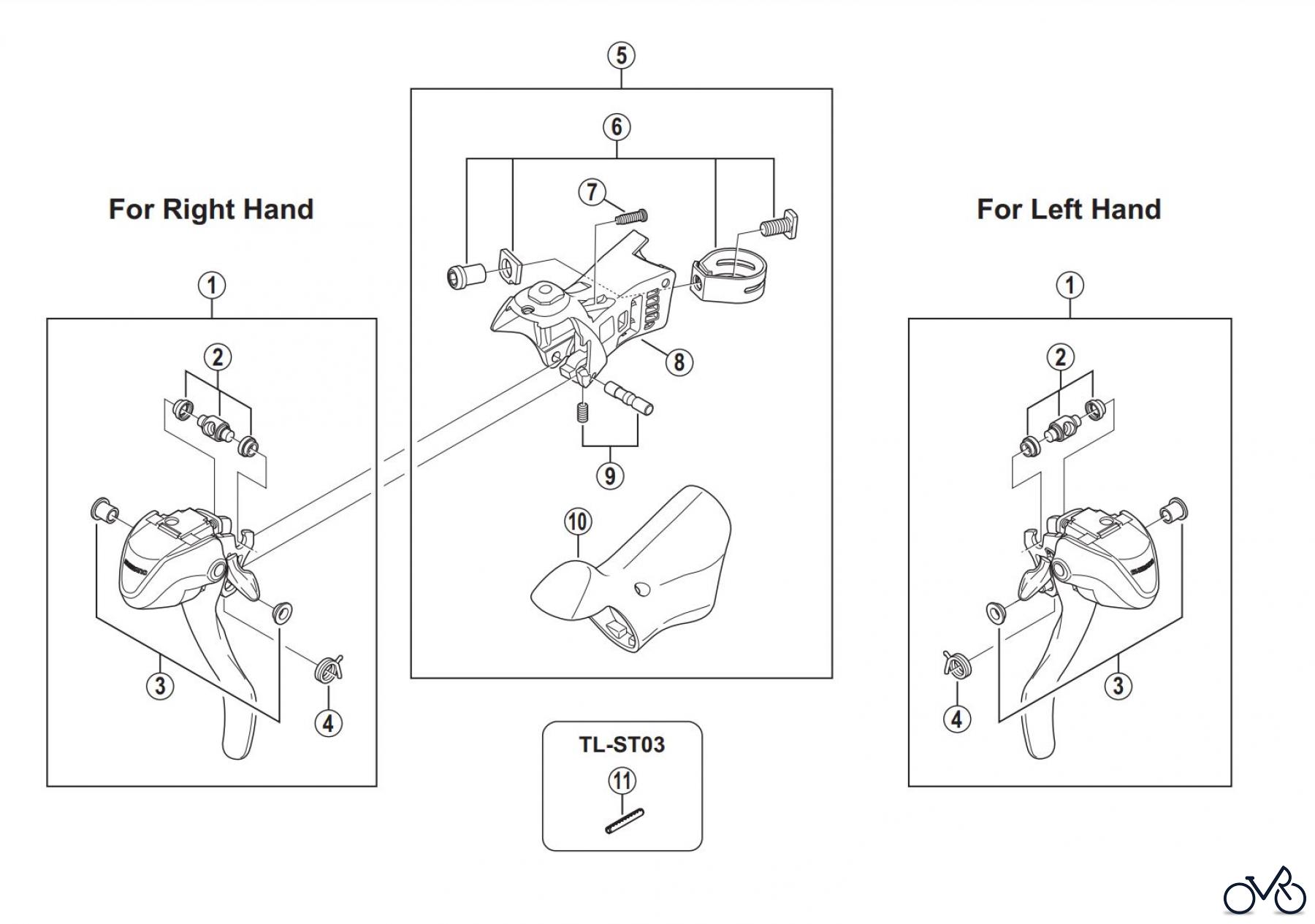

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-A070 SHIMANO TOURNEY Dual Control Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-6WC98010	R.H. Main Lever Assembly Y6WC98010
1	Y-6WB98010	L.H. Main Lever Assembly Y6WB98010
2	Y-6CU98050	Cable Hook Unit Y6CU98050
3	Y-85Z98010	Lever Axle Bush Unit Y85Z98010
4	Y-6SF14000	R.H. Return Spring Y6SF14000
4	Y-6SG64000	L.H. Return Spring Y6SG64000
5	Y-6WC98020	R.H. Bracket Unit Y6WC98020
5	Y-6WB98020	L.H. Bracket Unit Y6WB98020
6	Y-6K298060	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y6K298060
7	Y-0001003A	Grip Adjusting Screw (M4 x 11.5) Y0001003A
8	Y-6WC89000	R.H. Bracket Y6WC89000
8	Y-6WC89010	L.H. Bracket Y6WC89010
9	Y-6WC98030	Lever Axle & Fixing Screw Y6WC98030
10	Y-6WC98040	Bracket Covers (Pair) Y6WC98040
11	Y-13003200	Return Spring Installation Tool (TL-ST03) Y13003200
