Shimano HB-IM70 NEXAVE Front Hub

HB-IM70 NEXAVE Front Hub HB Hub - Vordere Nabe

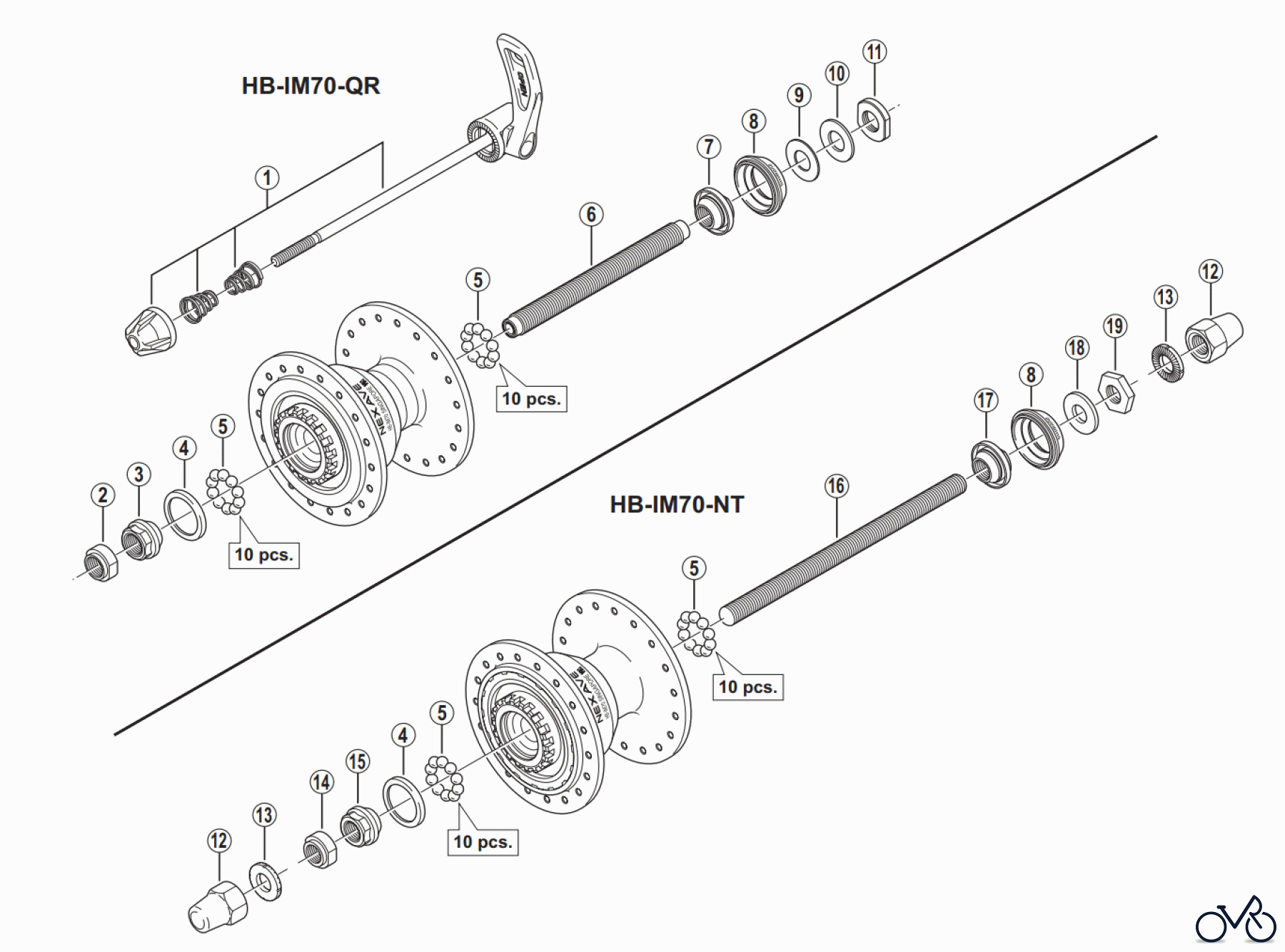

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-IM70 NEXAVE Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-20R98010	Complete Quick Release 133 mm (5-1/4") Y20R98010
2	Y-31Z0601R	Left Hand Cone Lock Nut (M10 x 7.1 mm) Y31Z0601R
3	Y-22V03101	Left Hand Cone (M10 x 11.94 mm) Y22V03101
4	Y-22V06000	Left Hand Dust Cap Y22V06000
5	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
6	Y-25W03000	Hub Axle (M10 x 108 mm) Y25W03000
7	Y-22T98010	Right Hand Cone (M10 x 10.4 mm) w/Dust Cover Y22T98010
8	Y-21H04000	Rubber Seal Y21H04000
9	Y-3AC09000	Right Hand Washer (0.5 mm) Y3AC09000
10	Y-3AC09100	Right Hand Washer (1.0 mm) Y3AC09100
11	Y-21S04000	Right Hand Serated Lock Nut (M10 x 3 mm) Y21S04000
12	Y-31414210	Cap Nut (M9) Y31414210
13	Y-21D03000	Washer (1.8 mm) Y21D03000
14	Y-22V0400R	Left Hand Cone Lock Nut (M9 x 7.1 mm) Y22V0400R
15	Y-22V03001	Left Hand Cone (M9 x 12.12 mm) Y22V03001
16	Y-21D05200	Hub Axle (M9 x 140 mm) Y21D05200
16	Y-21D05400	Hub Axle (M9 x 145 mm) Y21D05400
17	Y-21H98080	Right Hand Cone (M9 x 10.4 mm) w/Dust Cover Y21H98080
18	Y-21H10200	Right Hand Washer (2 mm) Y21H10200
19	Y-21D04000	Right Hand Lock Nut (M9 x 3.5 mm) Y21D04000
