Shimano SL-C3000-7 NEXUS REVOSHIFT Shifter

SL-C3000-7 NEXUS REVOSHIFT Shifter SL Shift Lever - Schalthebel

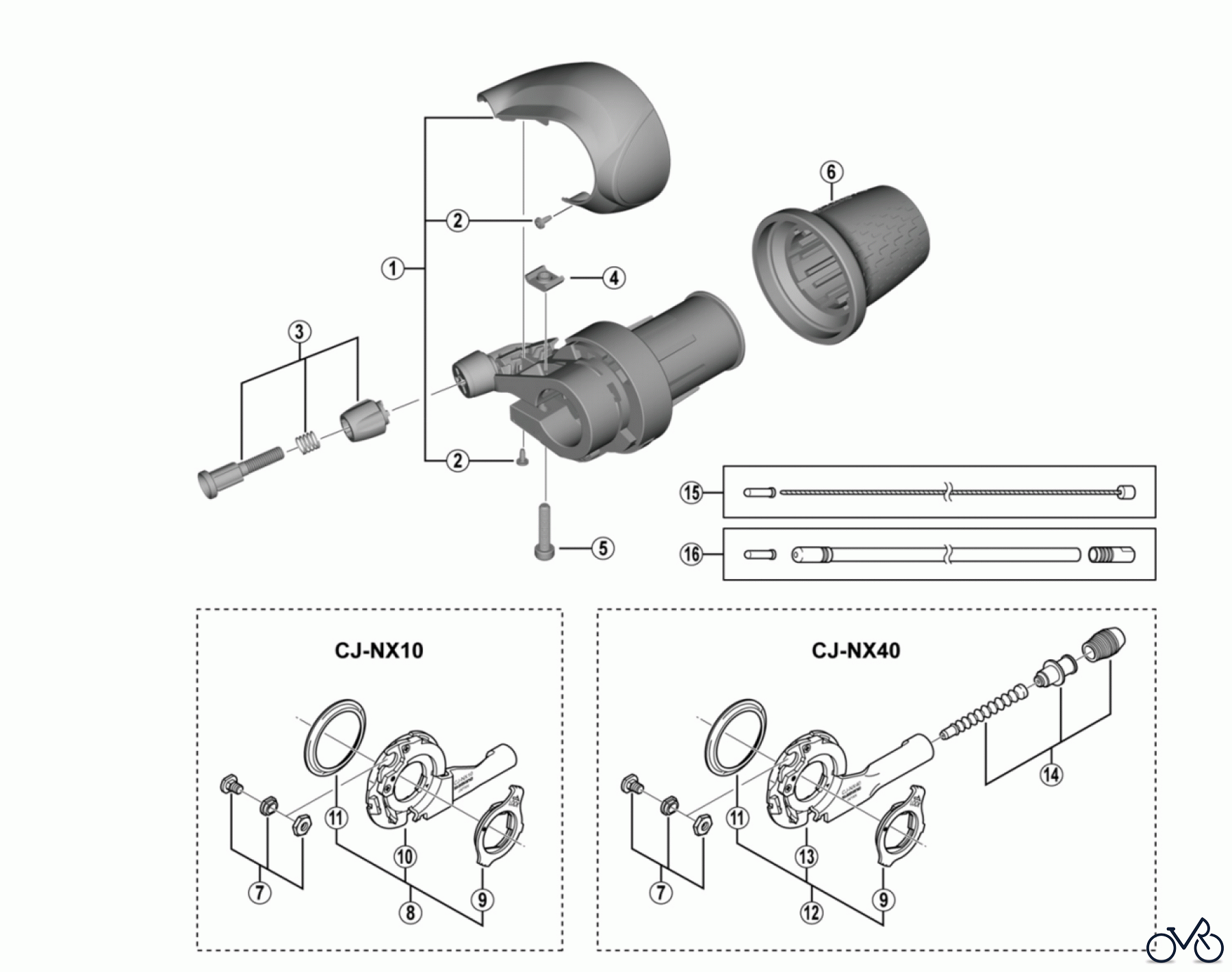

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-C3000-7 NEXUS REVOSHIFT Shifter. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0EB98010	Indicator Cover & Fixing Screws (Silver) Y0EB98010
1	Y-0EB98020	Indicator Cover & Fixing Screws (Black) Y0EB98020
2	Y-6F004020	Cover Fixing Screw (Silver) Y6F004020
2	Y-6F004000	Cover Fixing Screw (Black) Y6F004000
3	Y-01A98010	Cable Adjustment Barrel Unit Y01A98010
4	Y-6NA08000	Clamp Nut Y6NA08000
5	Y-6F409100	Clamp Bolt (M4 x 18.7) Y6F409100
6	Y-6FD14000	Grip Y6FD14000
7	Y-74Y98030	Inner Cable Fixing Bolt Unit Y74Y98030
8	Y-74Y98050	CJ-NX10 Cassette Joint Unit Y74Y98050
9	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
10	Y-74Y93100	CJ-NX10 Cassette Joint Y74Y93100
11	Y-74Y18000	Driver Cap Y74Y18000
12	Y-74Y98100	CJ-NX40 Cassette Joint Unit Y74Y98100
13	Y-74Y98090	CJ-NX40 Cassette Joint Y74Y98090
14	Y-74Y98160	Outer Casing Holder Unit Y74Y98160
15	Y-60098911	Shift inner cable stainless steel Y60098911
16	Y-6YE98010	SP41 shift outer casing Y6YE98010
