Shimano FD-U5000 METREA Umwerfer

FD-U5000 METREA Umwerfer FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-U5000 METREA Umwerfer

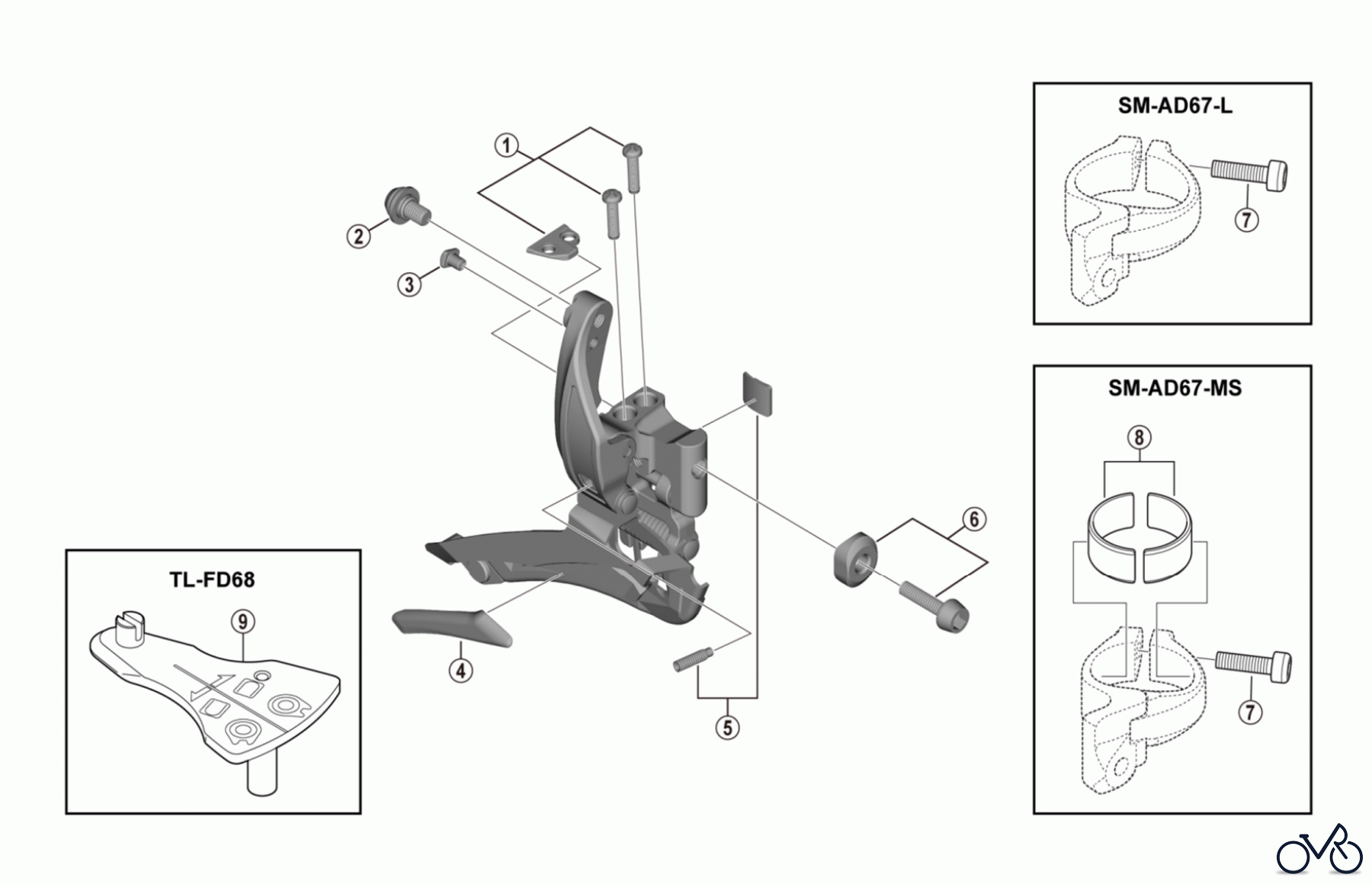

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-U5000 METREA Umwerfer. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5MR98010 Stroke Adjust Screws (M4 x 13) & Plate Y5MR98010
2 Y-5P198020 Cable Fixing Bolt Unit Y5P198020
3 Y-5P122000 Converter Y5P122000
4 Y-5P116000 Skid Plate Y5P116000
5 Shimano Support Bolt & Plate Y-2BA98020 Support Bolt & Plate Y2BA98020
6 Y-5P898010 Clamp Bolt (M5 x 15) & Radius Washer Y5P898010
7 Y-59L19100 Clamp Bolt (M5 x 17.5) for SM-AD67 Y59L19100
8 Y-5JD98020 Adapter (2 pcs.) for SM-AD67-MS / Diameter 28.6 mm (1-1/8”) Y5JD98020
9 Y-5P598010 Cable Fixing Point Checking Tool (TL-FD68) Y5P598010
