Shimano BR-U5000 METREA Scheibenbremse

BR-U5000 METREA Scheibenbremse BR Brake - Bremse

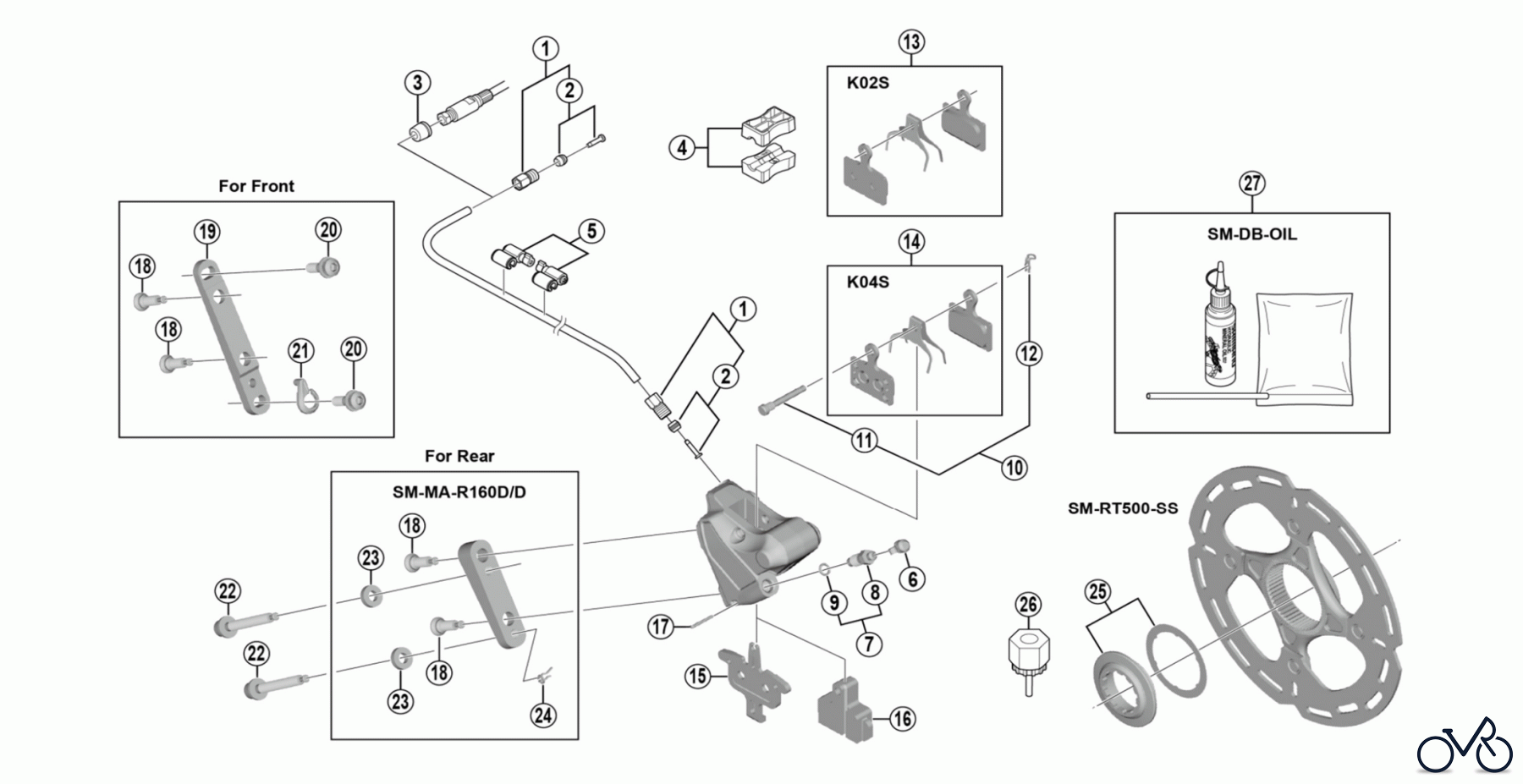

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-U5000 METREA Scheibenbremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8AL98020	Connecting Bolt Unit Y8AL98020
2	Y-8H298040	Olive & Connecter Insert Y8H298040
3	Y-8H802000	Hose Cover for easy hose joint system, not used with easy hose joint direct system Y8H802000
4	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5	Y-83098040	SM-HANG Hose Supporter Y83098040
6	Y-8B214000	Bleed Nipple Cap Y8B214000
7	Y-8CL98050	Bleed Nipple & Seal Ring Y8CL98050
8	Y-8CL24000	Bleed Nipple Y8CL24000
9	Y-8B511001	O-Ring for Bleed Nipple Y8B511001
10	Y-8J798060	Pad Axle & Snap Retainer Y8J798060
11	Y-8J710000	Pad Axle Y8J710000
12	Y-8J716000	Snap Retainer Y8J716000
13	Y-8N398010	Resin Pad (K02S) & Spring Y8N398010
14	Y-8N398020	Metal Pad (K04S) & Spring Y8N398020
15	Y-8N218000	Pad Spacer Y8N218000
16	Y-8N219000	Bleeding Spacer Y8N219000
17	Y-8N207000	Bolt Fixing Pin Y8N207000
18	Y-8N206000	Caliper Fixing Bolt Y8N206000
19	Y-8N230000	Front Caliper Mount Bracket Y8N230000
20	Y-8N204000	Caliper Fixing Bolt Y8N204000
21	Y-8N205000	Snap Ring Y8N205000
22	Y-8N208000	Caliper Fixing Bolt C for 10 mm Rear mount thickness Y8N208000
22	Y-8N208050	Caliper Fixing Bolt C for 15 mm Rear mount thickness Y8N208050
22	Y-8N208010	Caliper Fixing Bolt C for 20 mm Rear mount thickness Y8N208010
22	Y-8N208020	Caliper Fixing Bolt C for 25 mm Rear mount thickness Y8N208020
22	Y-8N208030	Caliper Fixing Bolt C for 30 mm Rear mount thickness Y8N208030
22	Y-8N208040	Caliper Fixing Bolt C for 35 mm Rear mount thickness Y8N208040
23	Y-8NU02000	Washer for R160 Adapter Y8NU02000
24	Y-8NU03000	Snap Retainer Y8NU03000
25	Y-8K198010	Lock Ring & Washer Y8K198010
26	Y-12009230	TL-LR15 Lock Ring Removal Tool Y12009230
27	Y-83998010	Mineral Oil Bleed Kit (50 ml) Y83998010
