Shimano HB-T780 -3179 DEORE XT Front Hub

HB-T780 -3179 DEORE XT Front Hub HB Hub - Vordere Nabe

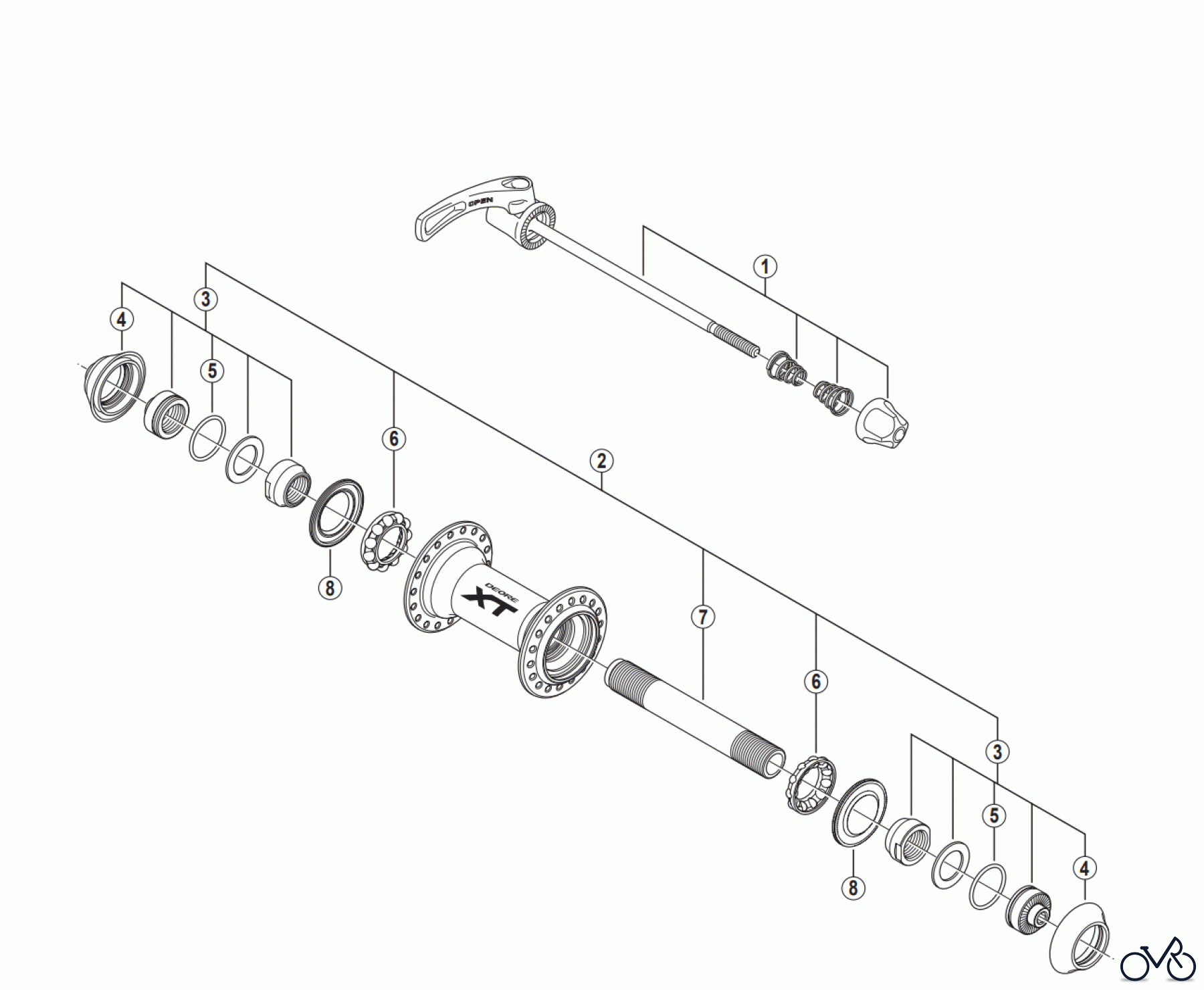

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-T780 -3179 DEORE XT Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2UB98010	Complete Quick Release 133 mm (5-1/4") Y2UB98010
2	Y-26J98010	Complete Hub Axle 94 mm Y26J98010
3	Y-26J98020	Lock Nut Unit Y26J98020
4	Y-26J11000	Dust Cap Y26J11000
5	Y-26J12000	O-Ring Y26J12000
6	Y-26J98030	Ball Retainer (3/16") Y26J98030
7	Y-26J08000	Hub Axle 94 mm Y26J08000
8	Y-26D10000	Seal Ring Y26D10000
