Shimano FC-T4010 ALIVIO Crankset

FC-T4010 ALIVIO Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-T4010 ALIVIO Crankset

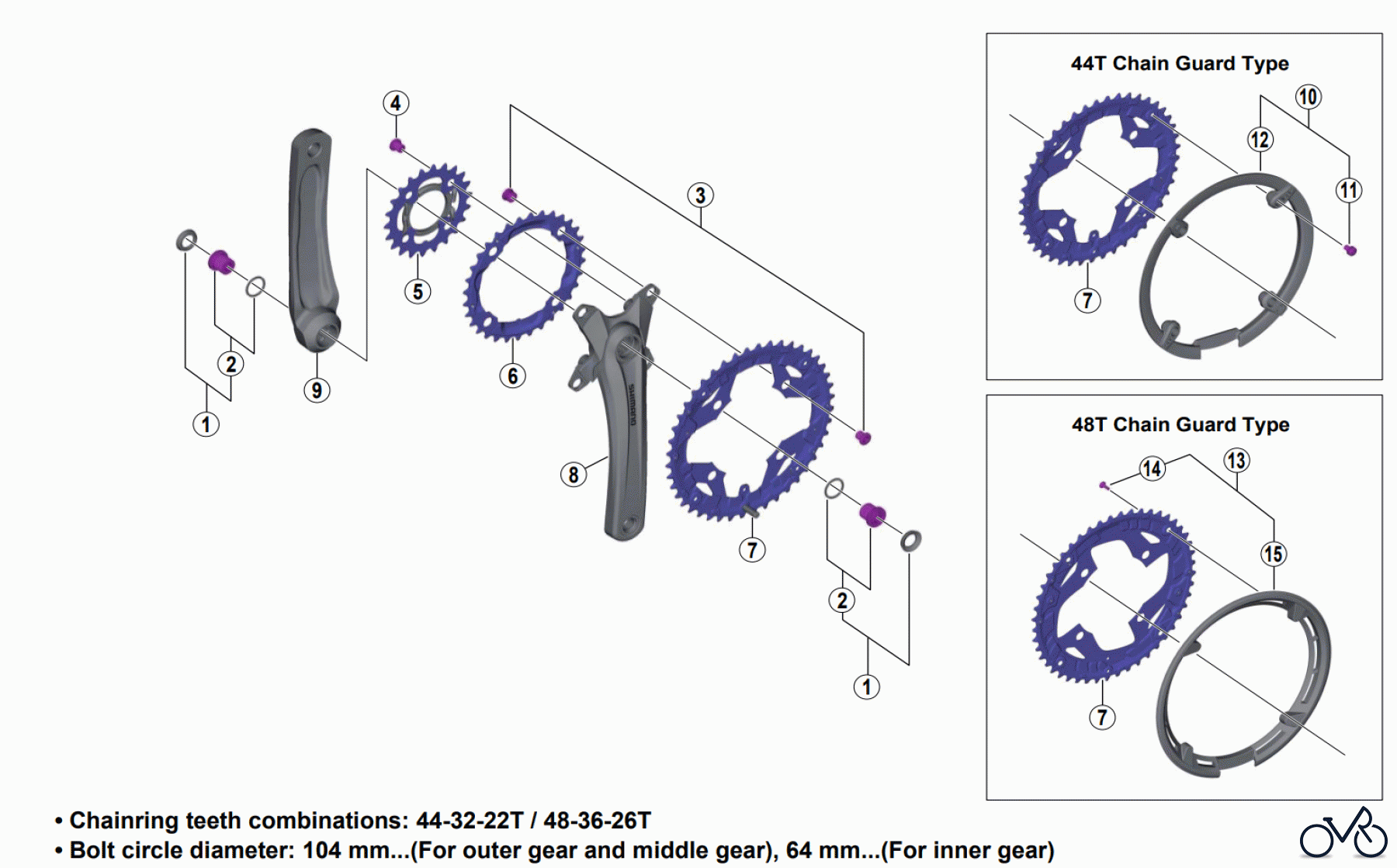

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-T4010 ALIVIO Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-1PL98010 Crank Arm Fixing Bolt Unit B Y1PL98010
2 Y-1M098020 Crank Arm Fixing Bolt & Washer A Y1M098020
3 Y-1NL98110 Double Gear Fixing Bolt (M8 x 8.5) & Nut (4 sets) A Y1NL98110
4 Y-1FM98030 Inner Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) A Y1FM98030
5 Y-1ME98020 Chainring 22T & Chain Protector for 44-32-22T B Y1ME98020
5 Y-1PN98030 Chainring 26T & Chain Protector for 48-36-26T B Y1PN98030
6 Y-1LD98080 Chainring 32T for 44-32-22T A B Y1LD98080
6 Shimano Chainring 36T for 48-36-26T A B Y-1LD98090 Chainring 36T for 48-36-26T A B Y1LD98090
7 Y-1PN98060 Chainring 44T for 44-32-22T (Silver) A B Y1PN98060
7 Y-1PN98210 Chainring 44T for 44-32-22T (Black) A B Y1PN98210
7 Y-1PN98070 Chainring 48T for 48-36-26T (Silver) A B Y1PN98070
7 Y-1PN98220 Chainring 48T for 48-36-26T (Black) A B Y1PN98220
8 Y-1PN98080 Right Hand Crank Arm 165 mm (Silver) B Y1PN98080
8 Y-1PN98090 Right Hand Crank Arm 165 mm (Black) B Y1PN98090
8 Y-1PN98100 Right Hand Crank Arm 170 mm (Silver) B Y1PN98100
8 Y-1PN98110 Right Hand Crank Arm 170 mm (Black) B Y1PN98110
8 Y-1PN98120 Right Hand Crank Arm 175 mm (Silver) B Y1PN98120
8 Y-1PN98130 Right Hand Crank Arm 175 mm (Black) B Y1PN98130
9 Y-1PN98140 Left Hand Crank Arm 165 mm (Silver) B Y1PN98140
9 Y-1PN98150 Left Hand Crank Arm 165 mm (Black) B Y1PN98150
9 Y-1PN98160 Left Hand Crank Arm 170 mm (Silver) B Y1PN98160
9 Y-1PN98170 Left Hand Crank Arm 170 mm (Black) B Y1PN98170
9 Y-1PN98180 Left Hand Crank Arm 175 mm (Silver) B Y1PN98180
9 Y-1PN98190 Left Hand Crank Arm 175 mm (Black) B Y1PN98190
10 Y-1M098250 44T Chain Guard & Fixing Bolts A A Y1M098250
11 Y-1M098260 44T Chain Guard Fixing Bolt (4 pcs.) A A Y1M098260
12 Y-1GX14100 44T Chain Guard A A Y1GX14100
13 Y-1PN98200 48T Chain Guard & Fixing Bolts A B Y1PN98200
14 Y-1D298010 48T Chain Guard Fixing Bolt (4 pcs.) A A Y1D298010
15 Y-1PM11000 48T Chain Guard Y1PM11000
