Shimano FC-T521 Front Chainwheel

FC-T521 Front Chainwheel FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

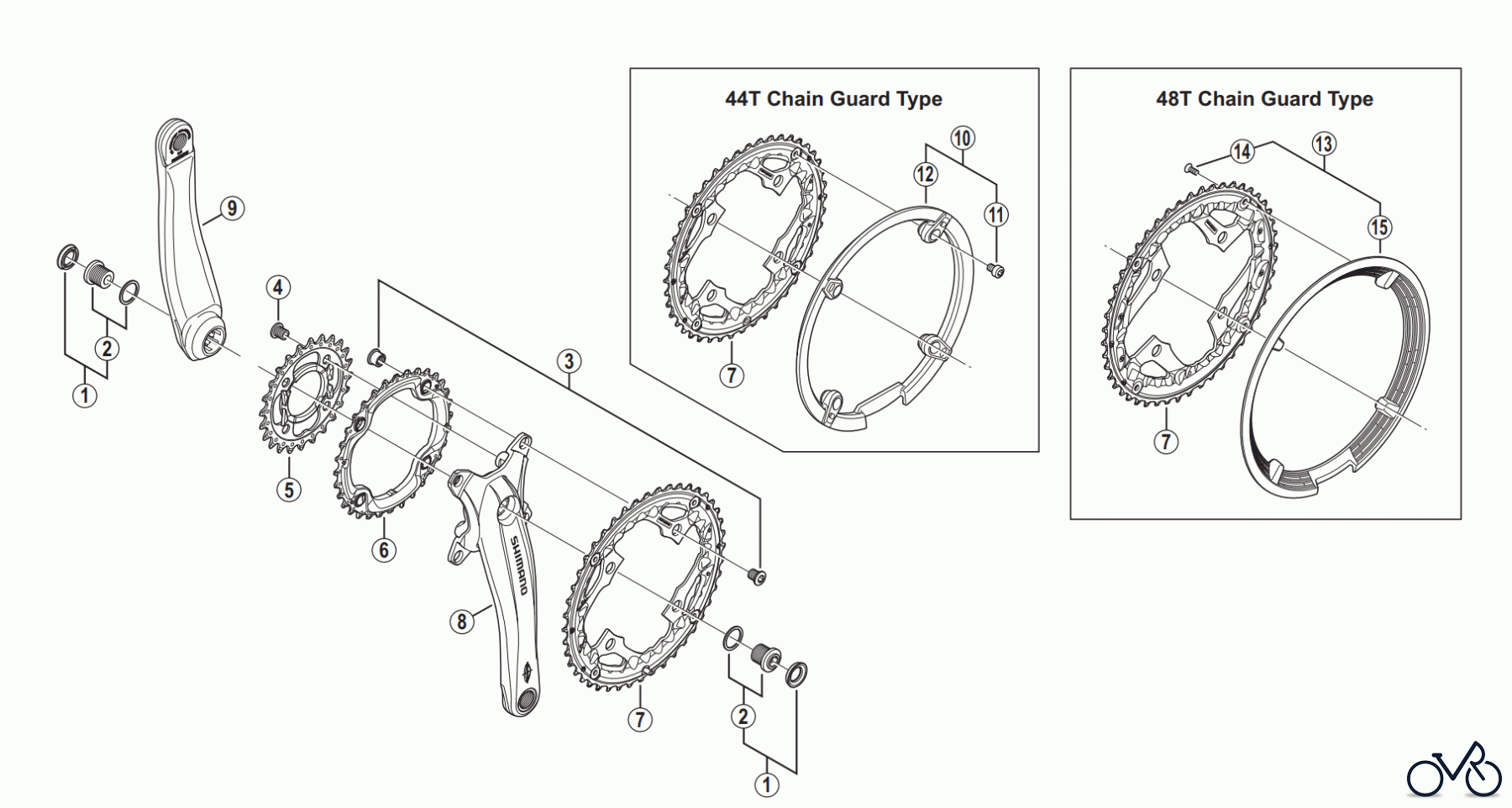

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-T521 Front Chainwheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1M098010	Crank Arm Fixing Bolt Unit Y1M098010
2	Y-1M098020	Crank Arm Fixing Bolt & Washer Y1M098020
3	Y-1LV98070	44-32T Double Gear Fixing Bolt (M8 x 8.5) & Nut (4 sets) A A Y1LV98070
3	Y-1NL98110	48-36T Double Gear Fixing Bolt (M8 x 8.5) & Nut (4 sets) A Y1NL98110
4	Y-1LV98060	Inner Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) A A Y1LV98060
5	Y-1N098010	Chainring 24T-AE (Black) & Chain Protector Y1N098010
5	Y-1ME98030	Chainring 26T (Black) & Chain Protector Y1ME98030
6	Y-1NL98010	Chainring 32T-AE (Black) A A Y1NL98010
6	Y-1NL98020	Chainring 36T-AL (Black) B A Y1NL98020
7	Y-1NL98030	Chainring 44T-AE (Black) B B Y1NL98030
7	Y-1NL98040	Chainring 44T-AE (Black) for Chain Guard B B Y1NL98040
7	Y-1NL98050	Chainring 48T-AL (Black) B B Y1NL98050
7	Y-1NL98060	Chainring 48T-AL (Black) for Chain Guard B B Y1NL98060
8	Y-1NL98070	Right Hand Crank Arm 170 mm (Silver) Y1NL98070
8	Y-1NL98080	Right Hand Crank Arm 170 mm (Black) Y1NL98080
8	Y-1NL98090	Right Hand Crank Arm 175 mm (Silver) Y1NL98090
8	Y-1NL98100	Right Hand Crank Arm 175 mm (Black) Y1NL98100
9	Y-1N005100	Left Hand Crank Arm 170 mm (Silver) Y1N005100
9	Y-1N005110	Left Hand Crank Arm 170 mm (Black) Y1N005110
9	Y-1N003100	Left Hand Crank Arm 175 mm (Silver) Y1N003100
9	Y-1N003110	Left Hand Crank Arm 175 mm (Black) Y1N003110
10	Y-1M098250	44T Chain Guard & Fixing Bolts A A Y1M098250
11	Y-1M098260	44T Chain Guard Fixing Bolt (4 pcs.) A A Y1M098260
12	Y-1GX14100	44T Chain Guard A A Y1GX14100
13	Y-1M298160	48T Chain Guard & Fixing Bolts B B Y1M298160
14	Y-1D298010	48T Chain Guard Fixing Bolt (4 pcs.) A A Y1D298010
15	Y-1LD12100	48T Chain Guard Y1LD12100
