Shimano FC-T6010 DEORE Crankset

FC-T6010 DEORE Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

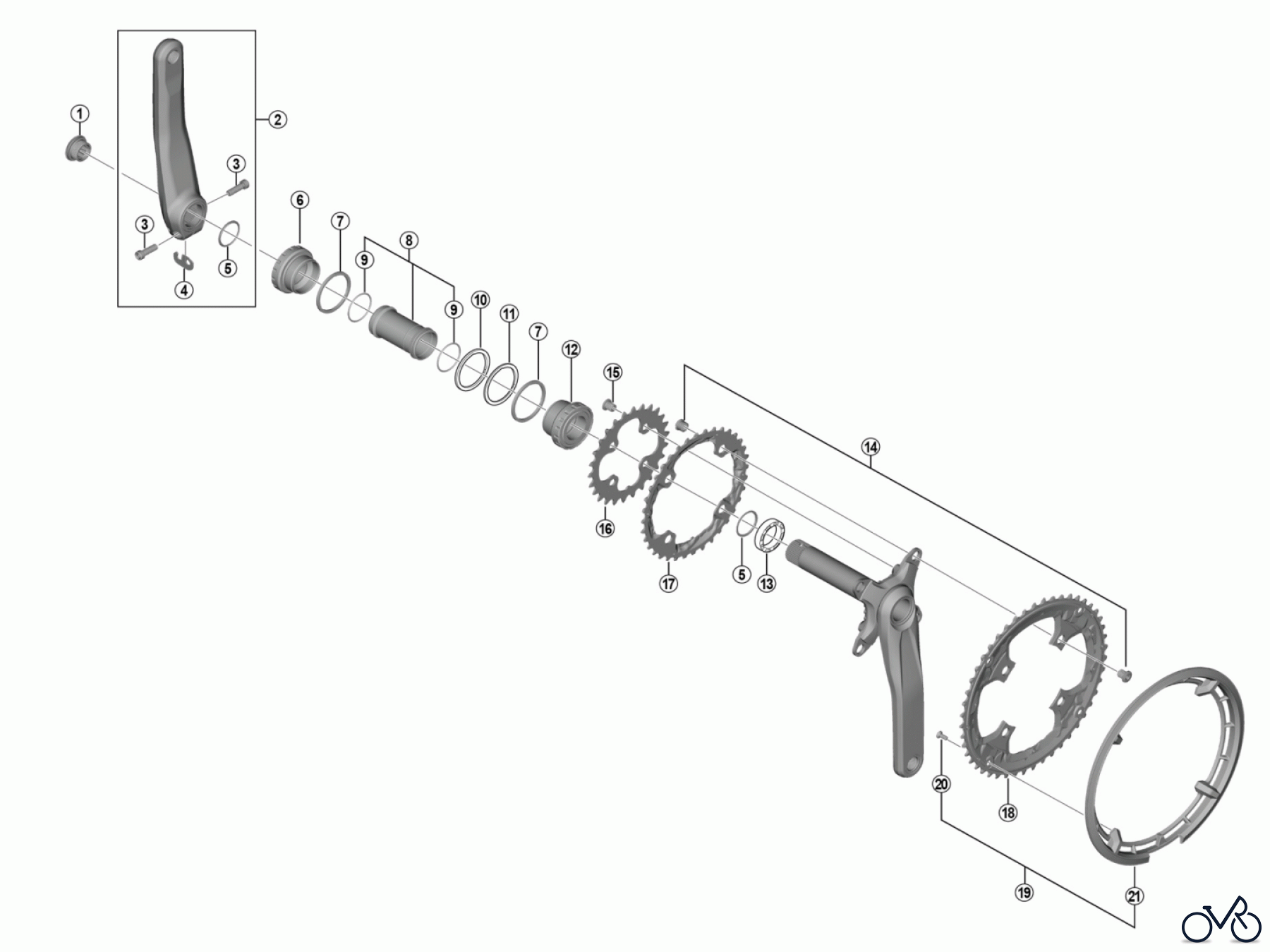

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-T6010 DEORE Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Bolt A B Y1F811100
2	Y-1WC98030	Left Hand Crank Arm Unit 170 mm (Black) B B Y1WC98030
2	Y-1WE98030	Left Hand Crank Arm Unit 170 mm (Silver) B B Y1WE98030
2	Y-1WC98040	Left Hand Crank Arm Unit 175 mm (Black) B B Y1WC98040
2	Y-1WE98040	Left Hand Crank Arm Unit 175 mm (Silver) B B Y1WE98040
3	Y-1GS00030	Clamp Bolt (M6 x 19) A A Y1GS00030
4	Y-1FU98120	Plate A Y1FU98120
5	Y-1F316000	Ring A A Y1F316000
6	Y-1RP98050	Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) A A Y1RP98050
7	Y-1F813000	Spacer (2.5 mm) A A Y1F813000
8	Y-1J898060	Inner Cover & O-Ring A A Y1J898060
9	Y-1TF21000	O-Ring A A Y1TF21000
10	Y-1F813100	Spacer (1.8 mm) A A Y1F813100
11	Y-1F813110	Spacer (0.7 mm) A A Y1F813110
12	Y-1RP98060	Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) A A Y1RP98060
13	Y-1F913000	Spacer (6.5 mm) A Y1F913000
14	Y-1NL98110	Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) & Nut (1 Unit = 4 pcs.) A Y1NL98110
15	Y-1LV98060	Inner Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) A A Y1LV98060
16	Y-1LD26000	Chainring 26T B A Y1LD26000
17	Y-1NL98020	Chainring 36T-AL Y1NL98020
18	Y-1WE98010	Chainring 48T-AL (Black) for Chain Guard B B Y1WE98010
18	Y-1WE98020	Chainring 48T-AL (Silver) for Chain Guard B B Y1WE98020
19	Y-1WE98050	Chain Guard (Black/1 pc.) & Fixing Screws (1 Unit = 4 pcs.) B B Y1WE98050
19	Y-1WE98060	Chain Guard (Silver/1 pc.) & Fixing Screws (1 Unit = 4 pcs.) B B Y1WE98060
20	Y-1D298010	Chain Guard Fixing Screw (1 Unit = 4 pcs.) B B Y1D298010
21	Y-1WE98070	Chain Guard (Black) B B Y1WE98070
21	Y-1WE98080	Chain Guard (Silver Y1WE98080
