Shimano FC-T8000 DEORE XT Crankset

FC-T8000 DEORE XT Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

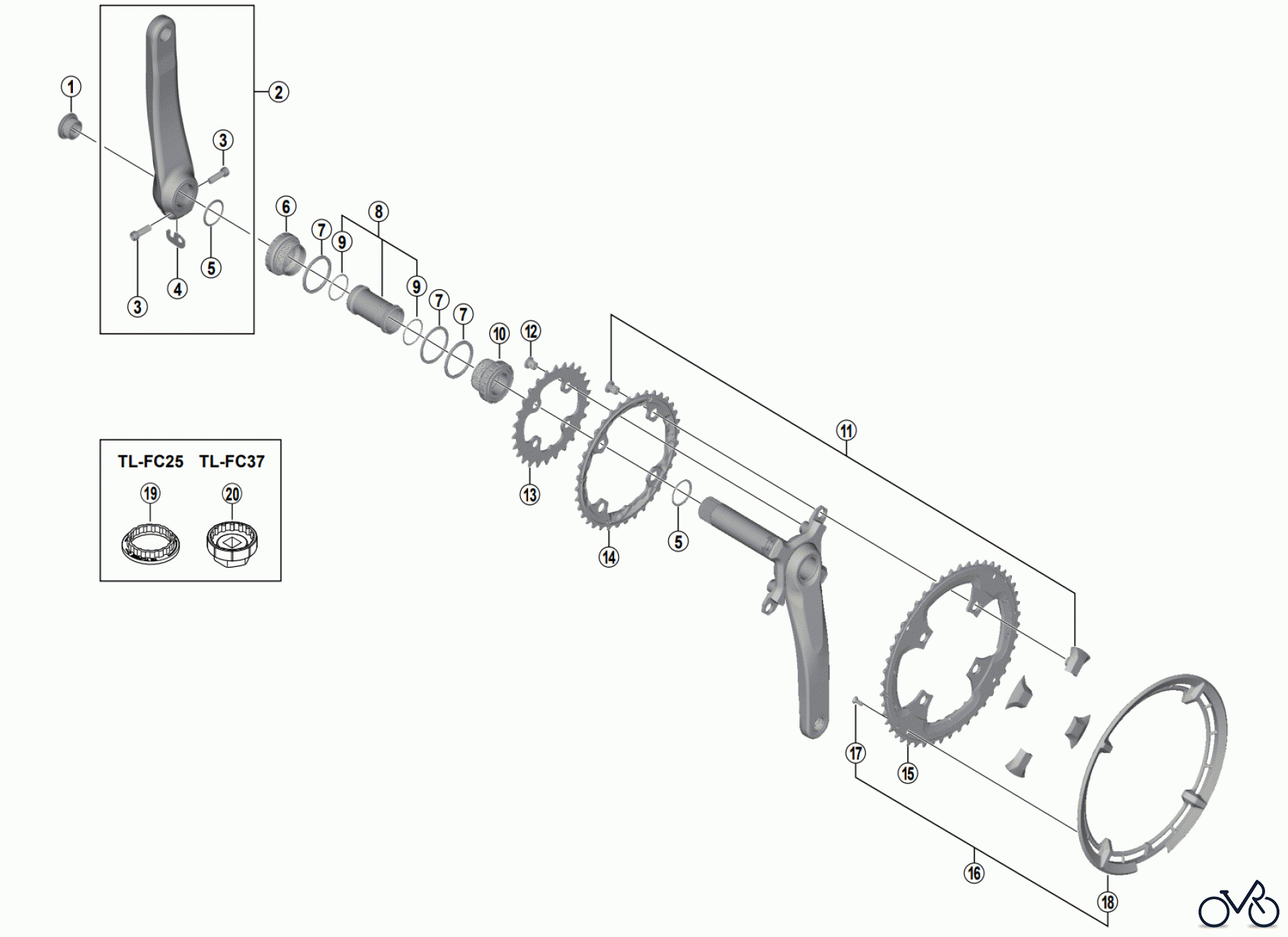

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-T8000 DEORE XT Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Bolt A Y1F811100
2	Y-1RL98020	Left Hand Crank Arm Unit 170 mm B Y1RL98020
2	Y-1RL98030	Left Hand Crank Arm Unit 175 mm B Y1RL98030
3	Y-1GS21000	Clamp Bolt with Washer (M6 x 21) Y1GS21000
4	Y-1FU98120	Plate A Y1FU98120
5	Y-1F316000	Ring A Y1F316000
6	Y-1V698010	Left Hand Adapter (B.C.1.37" x 24T) English Thread (BB-MT800) B Y1V698010
7	Y-1F813000	Spacer (2.5 mm) B Y1F813000
8	Y-1E598210	Inner Cover & O-Ring A Y1E598210
9	Y-1TF21000	O-Ring A Y1TF21000
10	Y-1V698020	Right Hand Adapter (B.C.1.37" x 24T) English Thread (BB-MT800) B Y1V698020
11	Y-1VL98020	Gear Fixing Bolt (M8 x 10.1 / 1 Unit = 4 pcs.) & Fixing Part (1 Unit = 4 pcs.) Y1VL98020
12	Y-1NV98040	Inner Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) B Y1NV98040
13	Y-1J226000	Chainring 26T A Y1J226000
14	Y-1MP98020	Chainring 36T-AL A Y1MP98020
15	Y-1VL98010	Chainring 48T-AL for Chain Guard Y1VL98010
16	Y-1VL98030	Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) B Y1VL98030
17	Y-1D298010	Chain Guard Fixing Screw (1 Unit = 4 pcs.) A Y1D298010
18	Y-1VL12000	Chain Guard B Y1VL12000
19	Y-13009260	TL-FC25 Adapter Installation Tool Y13009260
20	Y-13009270	TL-FC37 Adapter Installation Too Y13009270
