Shimano BR-T4000 (3667) ALIVIO V-Brake

BR-T4000 (3667) ALIVIO V-Brake BR Brake - Bremse

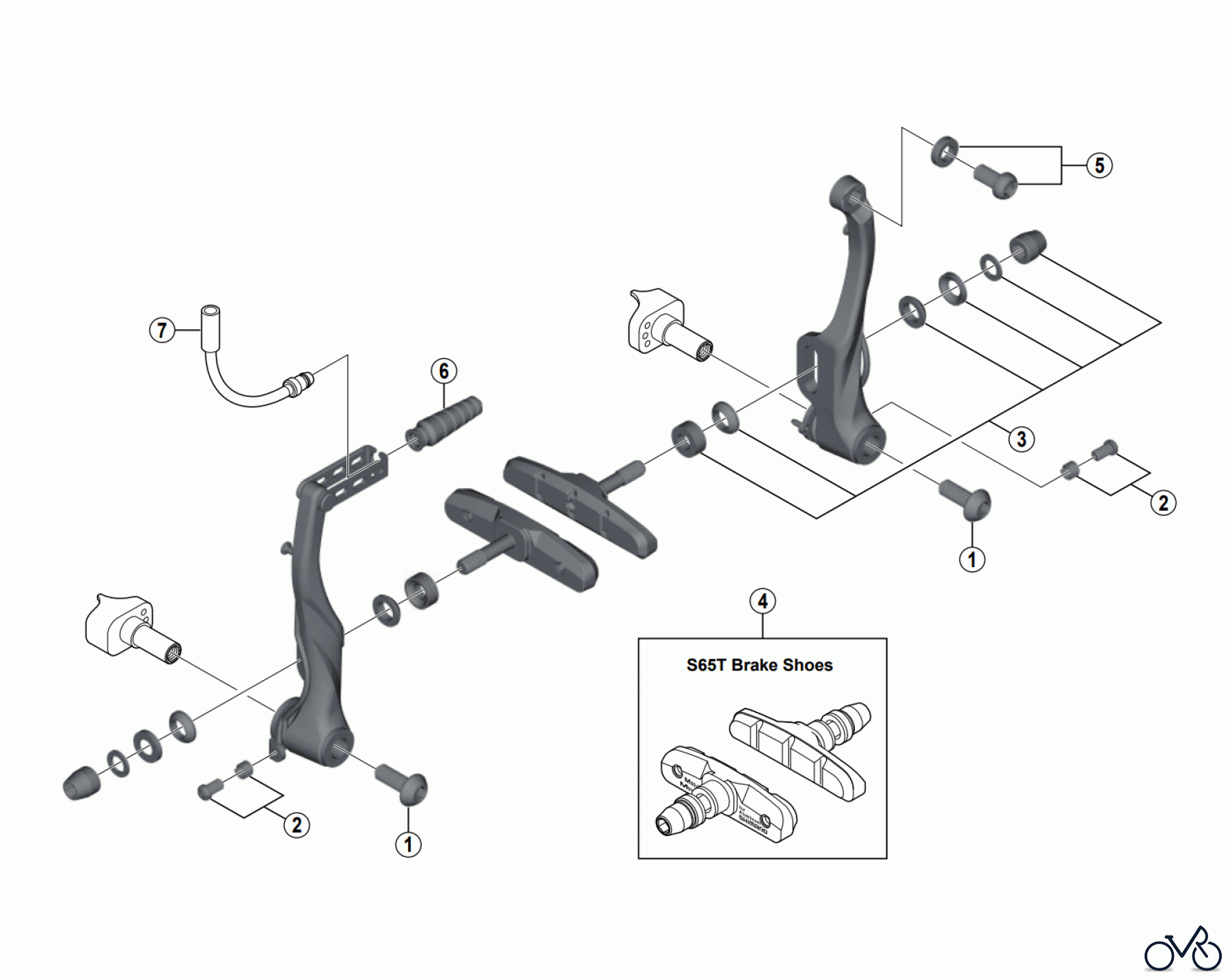

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-T4000 (3667) ALIVIO V-Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y82N18800	Link Fixing Bolt (M6 x 16) A Y82N18800
1	Y-82N18500	Link Fixing Bolt (M6 x 25) A Y82N18500
2	Y-8B098010	Spring Tension Adjustment Screw (M4x 7) & Stopper A Y8B098010
3	Y-8B098030	Shoe Fixing Nut Unit A Y8B098030
4	Y-8GP9810A	S65T Brake Shoe Set (10 pairs) A Y8GP9810A
5	Y-8B098020	Cable Fixing Bolt (M6 x 11.5) & Plate A Y8B098020
6	Y-8FG05000	Boot A Y8FG05000
7	Y-8AA98070	Inner Cable Lead Unit (90?: Middle) A Y8AA98070
7	Y-8AA98080	Inner Cable Lead Unit (135?: Long) A Y8AA98080
7	Y-8AA98120	Inner Cable Lead Unit (45?: Short Y8AA98120
