Shimano FD-T3000 (3886) ACERA Front Derailleur

FD-T3000 (3886) ACERA Front Derailleur FD Front Derailleur - Umwerfer

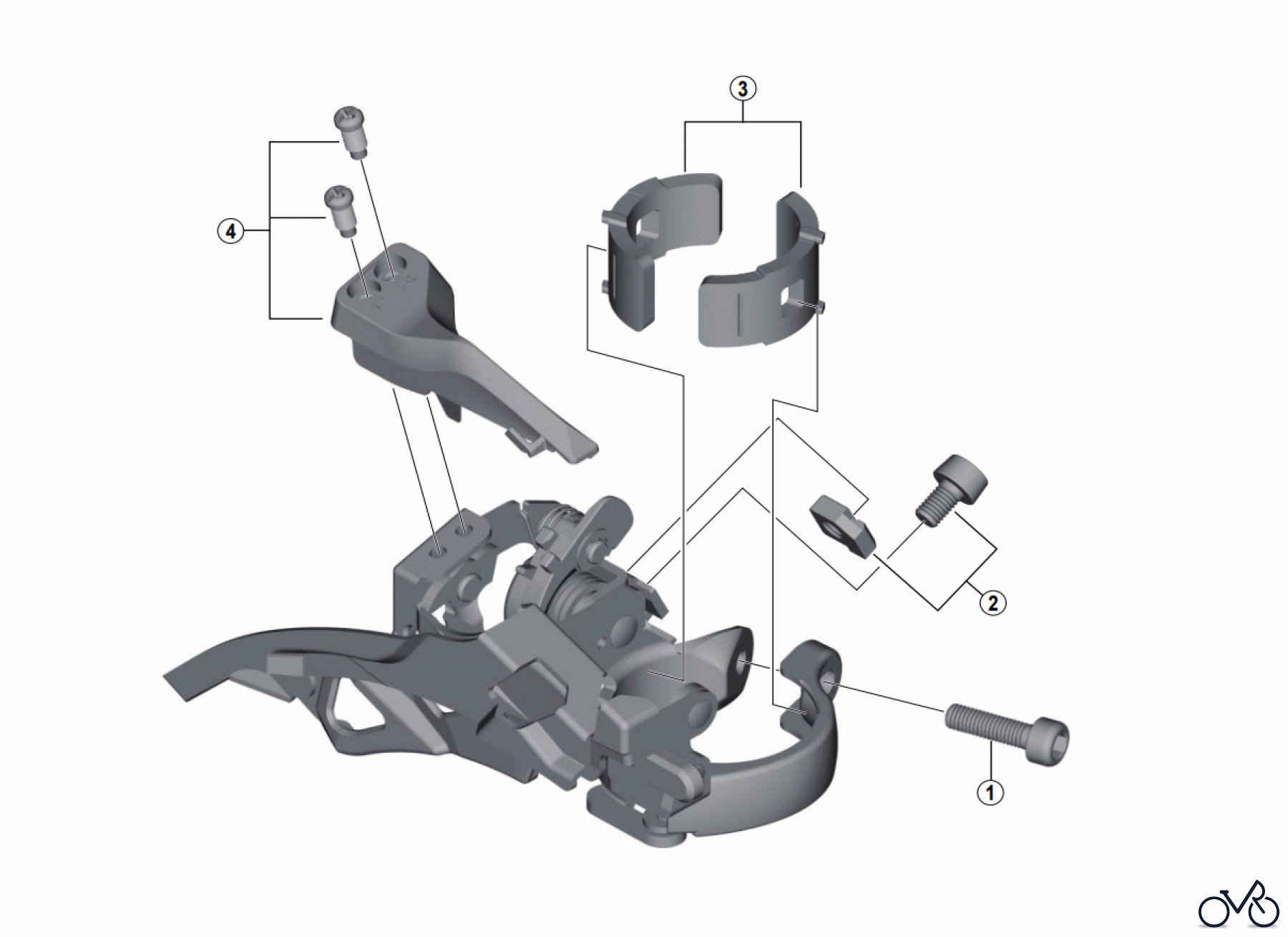

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-T3000 (3886) ACERA Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5RN00030	Clamp Bolt (M5 x 17) Y5RN00030
2	Y-5PC98010	Cable Fixing Nut & Bolt (M5 x 8.1) Y5PC98010
3	Y-5RN98010	Clamp Band Adapter Unit for S-size / ø28.6 mm (1-1/8") Y5RN98010
3	Y-5RN98020	Clamp Band Adapter Unit for M-size / ø31.8 mm (1-1/4") Y5RN98020
4	Y-5RR98010	Stroke Adjust Screws (M4 x 9.2) & Plate Y5RR98010
