Shimano SL-T6000 DEORE Rapidfire Plus Lever (4201)

SL-T6000 DEORE Rapidfire Plus Lever (4201) SL Shift Lever - Schalthebel

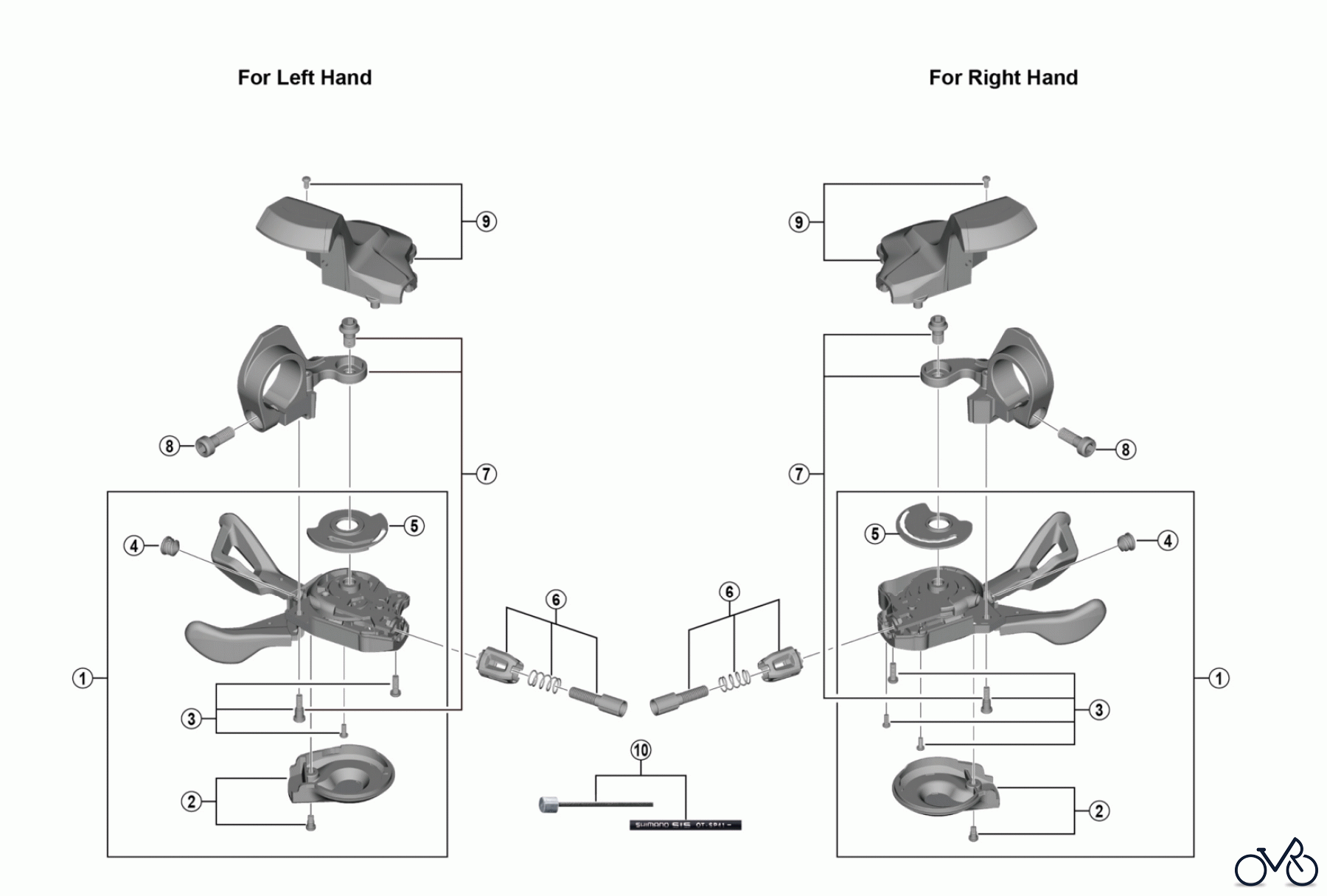

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-T6000 DEORE Rapidfire Plus Lever (4201). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0CT98010	R.H. Shifting Lever Unit Y0CT98010
1	Y-0CU98010	L.H. Shifting Lever Unit Y0CU98010
2	Y-0CT98020	R.H. Main Lever Cover & Fixing Screw Y0CT98020
2	Y-0CU98020	L.H. Main Lever Cover & Fixing Screw Y0CU98020
3	Y-0CR98070	R.H. Base Cover Fixing Screw Unit Y0CR98070
3	Y-0CS98070	L.H. Base Cover Fixing Screw Unit Y0CS98070
4	Y-6CD33000	Inner Hole Cap A Y6CD33000
5	Y-06P05000	R.H. Cam Plate Y06P05000
5	Y-06N55000	L.H. Cam Plate Y06N55000
6	Y-03K98030	R.H. Cable Adjusting Bolt Unit Y03K98030
6	Y-06N98040	L.H. Cable Adjusting Bolt Unit Y06N98040
7	Y-0CR98030	R.H. Bracket & Fixing Bolt Y0CR98030
7	Y-0CS98030	L.H. Bracket & Fixing Bolt Y0CS98030
8	Y-6T842000	Clamp Bolt (M5 x 13.5) A Y6T842000
9	Y-0CT98030	R.H. Indicator Unit (Black) Y0CT98030
9	Y-0CT98040	R.H. Indicator Unit (Silver) Y0CT98040
9	Y-0CU98030	L.H. Indicator Unit (Black) Y0CU98030
9	Y-0CU98040	L.H. Indicator Unit (Silver) Y0CU98040
10	Y-60198090	OT-SP41 OPTISLICK shift cable sets (Black) Y60198090
10	Y-60198091	OT-SP41 OPTISLICK shift cable sets (White Y60198091
