Shimano SL-8S20-STD (-3279)

SL-8S20-STD (-3279) SL Shift Lever - Schalthebel

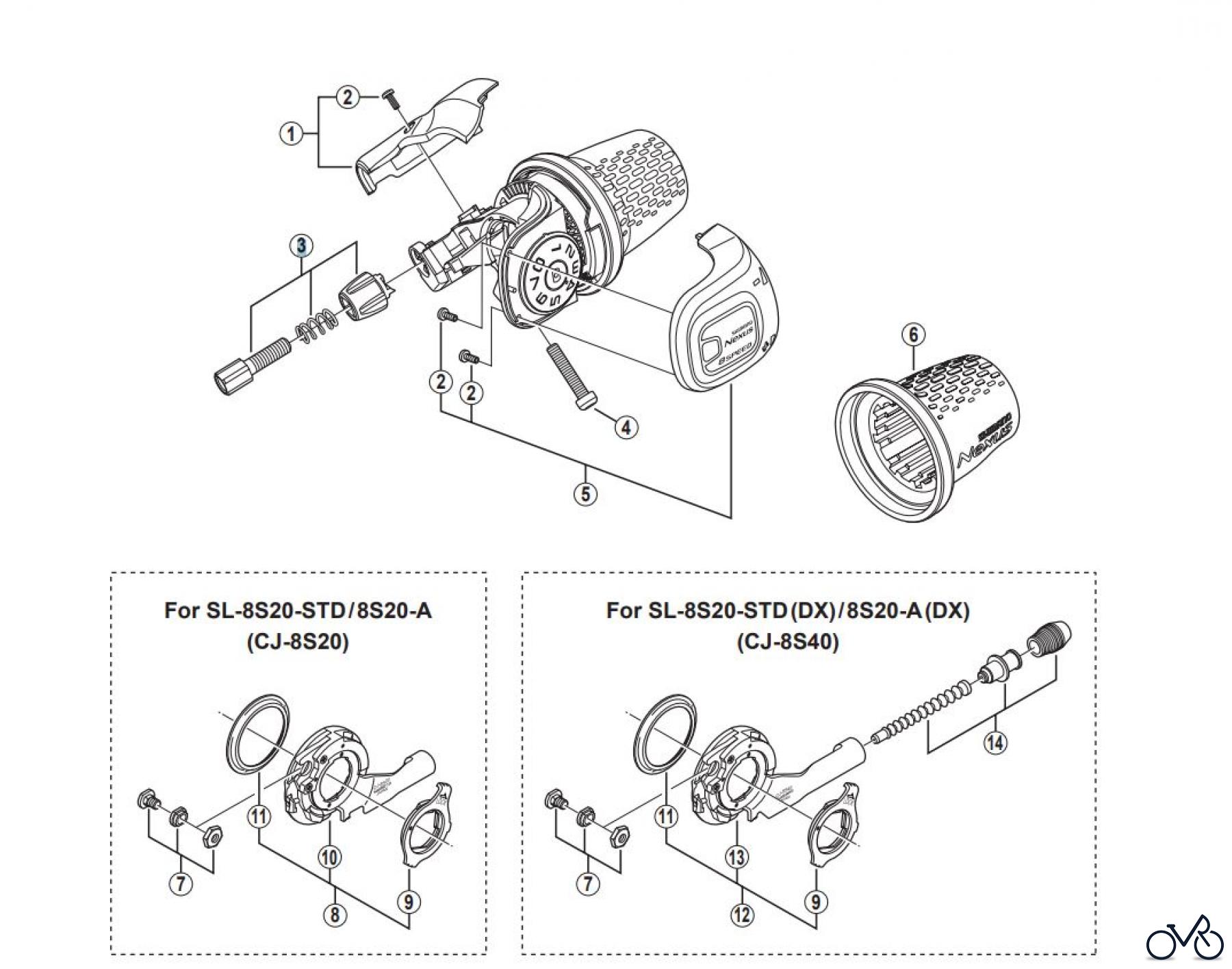

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-8S20-STD (-3279). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-6FD98010	Bracket Cover & Fixing Screw Y6FD98010
2	Y-6F004000	Cover Fixing Screw Y6F004000
3	Y-61W98030	Cable Adjusting Bolt Unit Y61W98030
4	Y-6F409010	Clamp Screw (M4 x 23.5) Y6F409010
5	Y-6VB98010	Indicator Cover (Black) for SL-8S20-STD & Fixing Screws Y6VB98010
5	Y-6VB98020	Indicator Cover (Silver) for SL-8S20-A & Fixing Screws Y6VB98020
6	Y-6FD14000	Grip Y6FD14000
7	Y-74Y98030	Inner Cable Fixing Bolt Unit Y74Y98030
8	Y-74Y98120	CJ-8S20 Cassette Joint Unit Y74Y98120
9	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
10	Y-74Y98130	CJ-8S20 Cassette Joint Y74Y98130
11	Y-74Y18000	Driver Cap Y74Y18000
12	Y-74Y98140	CJ-8S40 Cassette Joint Unit Y74Y98140
13	Y-74Y98150	CJ-8S40 Cassette Joint Y74Y98150
14	Y-74Y98160	Outer Casing Holder Unit Y74Y98160
