Shimano RD-M786 (-3321B) DEORE XT Rear Derailleur (10-speed)

RD-M786 (-3321B) DEORE XT Rear Derailleur (10-speed) RD Rear Derailleur - Schaltwerk

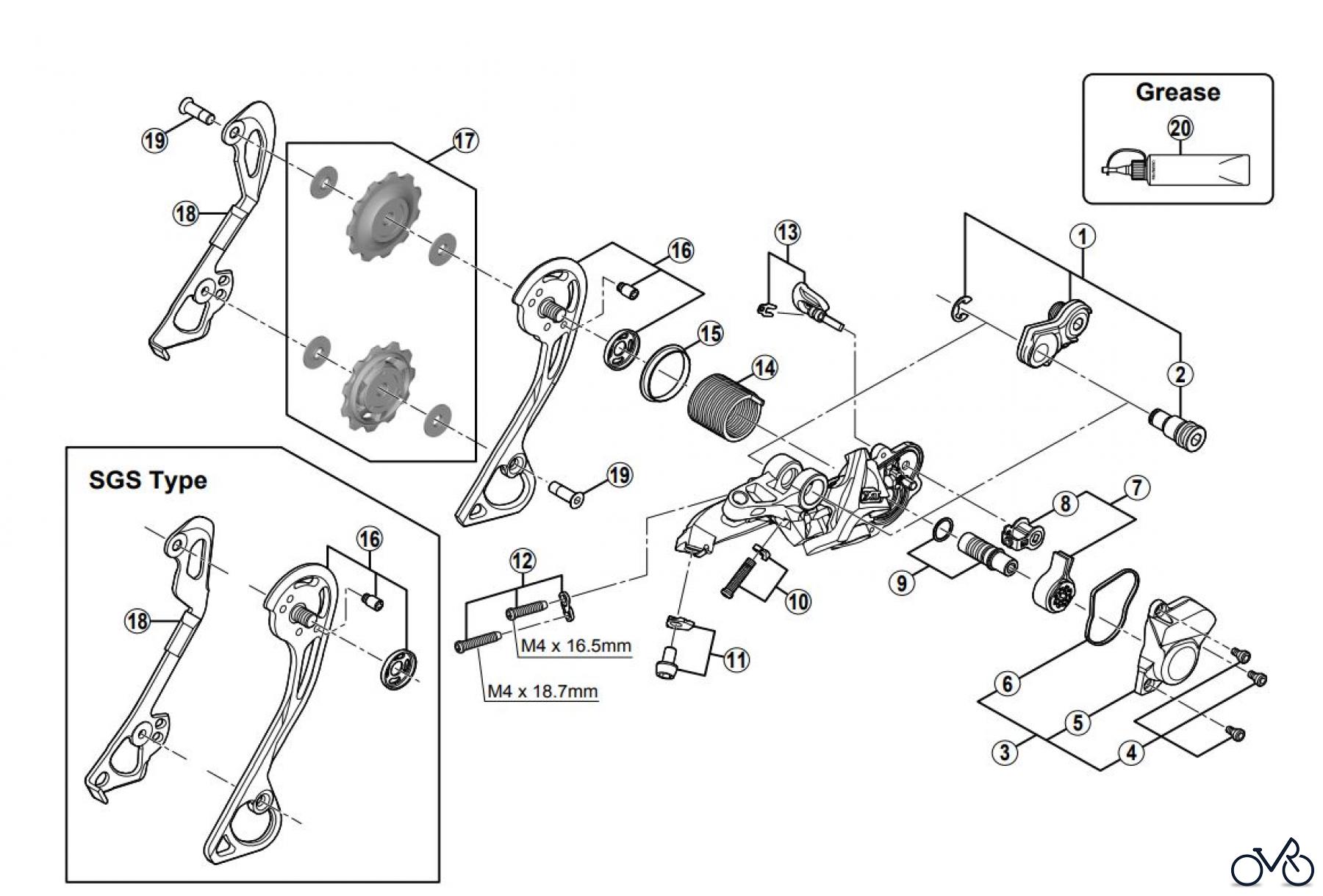

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M786 (-3321B) DEORE XT Rear Derailleur (10-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5Y098010	Bracket Axle Unit (for normal type) Y5Y098010
2	Y-50Y17000	B-Axle 2(for Direct Mount type) Y50Y17000
3	Y-5Y198060	P-Cover Unit Y5Y198060
4	Y-5Y198070	P-Cover Bolt Set (3 pcs.) Y5Y198070
5	Y-50Z13100	P-Cover Y50Z13100
6	Y-5Y219000	P-Cover Packing Y5Y219000
7	Y-5Y198020	Stabilizer Unit Y5Y198020
8	Y-5Y198120	Cam Unit Y5Y198120
9	Y-5Y198040	P-Axle Unit & Washer Y5Y198040
10	Y-5XP98030	B-Tension Adjusting Screw (M4 x 18) & Plate Y5XP98030
11	Y-5W798030	Cable Fixing Bolt (M5 x 8) & Plate Y5W798030
12	Y-5W798020	Stroke Adjusting Screws & Plate Y5W798020
13	Y-5Y198010	Switch Lever Unit & Fixing Plate Y5Y198010
14	Y-5XD19000	P-Tension Spring Y5XD19000
15	Y-5XD15000	P-Seal Ring Y5XD15000
16	Y-5Y198080	Outer Plate Assembly (GS-Type) Y5Y198080
16	Y-5Y198090	Outer Plate Assembly (SGS-Type) Y5Y198090
17	Y-5XF98130	Tension & Guide Pulley Unit Y5XF98130
18	Y-5XC09100	Inner Plate (GS-Type) Y5XC09100
18	Y-5Y010000	Inner Plate (SGS-Type) Y5Y010000
19	Y-53M24000	Pulley Bolt Y53M24000
20	Y-04121000	New Grease for Stabilizer (Net. 50g) Y04121000
20	Y-04120800	Grease for Stabilizer (Net. 100g) Y04120800
